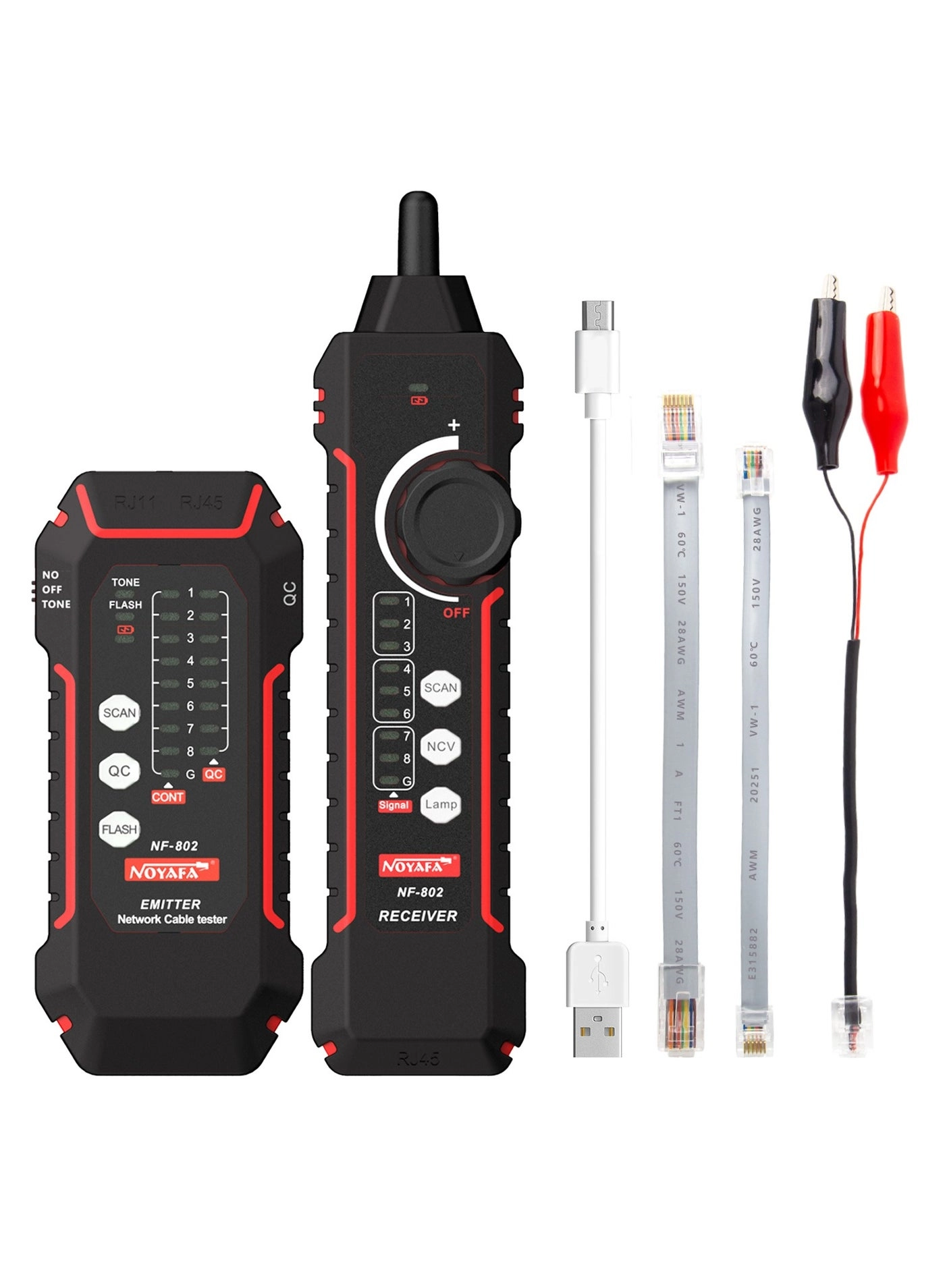

NOYAFA NF-802 - RJ11 RJ45 Scanning Wiremap

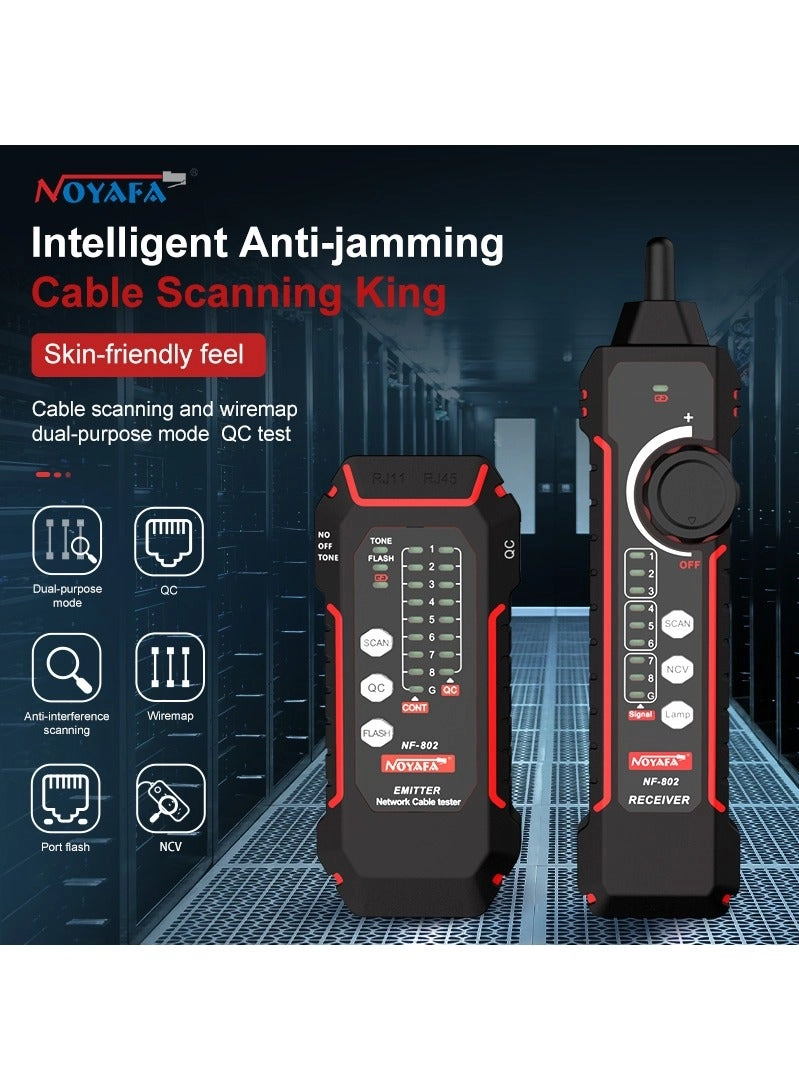

NF-802 is an intelligent network cable tester, uses advanced digital demodulation to realize anti-interference and no noise tracing cables,functions of wiremap, cable tracing, crimping, and port flash. It can test the polarity recognition of the telephone line, standby, off-hook, ringing, and LED indicator in different states. A tool for installation and maintenance of integrated wiring and weak current systems.

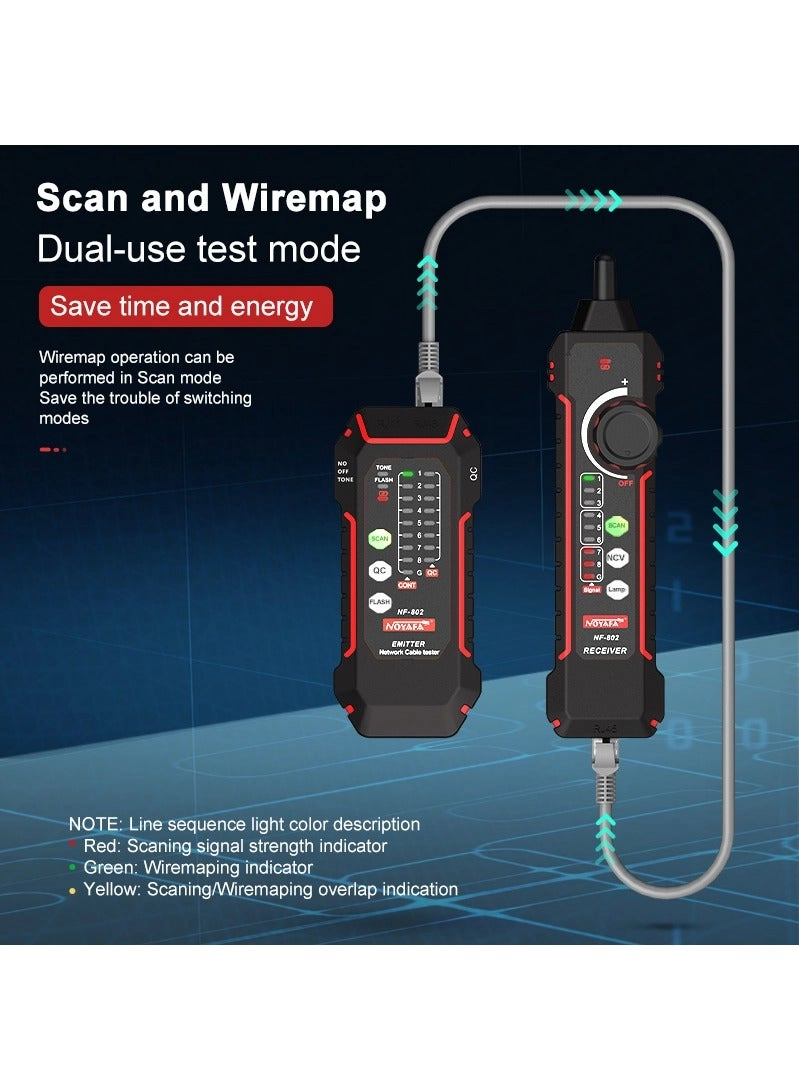

【Dual-purpose Mode】Scanning and wiremap dual-purpose test,wiremap operation can be performed in scan mode,save the trouble of switching modes.

【QC for crimping crystal】Unilateral crystal head QC test,accurately measure whether the crystal head is crimped well.

【Anti-interference Scanning】 Dedicated digital signal anti-interference.

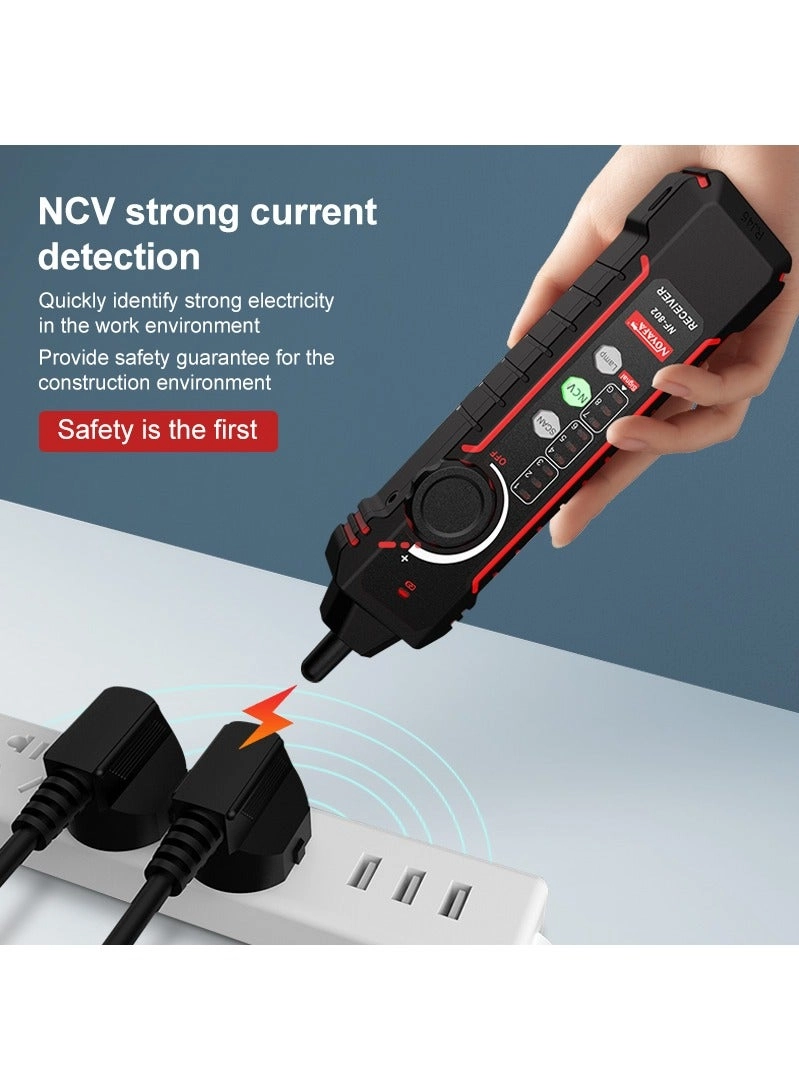

【NCV strong current detection】Quickly identify strong electricity in the work environment, provide safety guarantee for the construction environment.

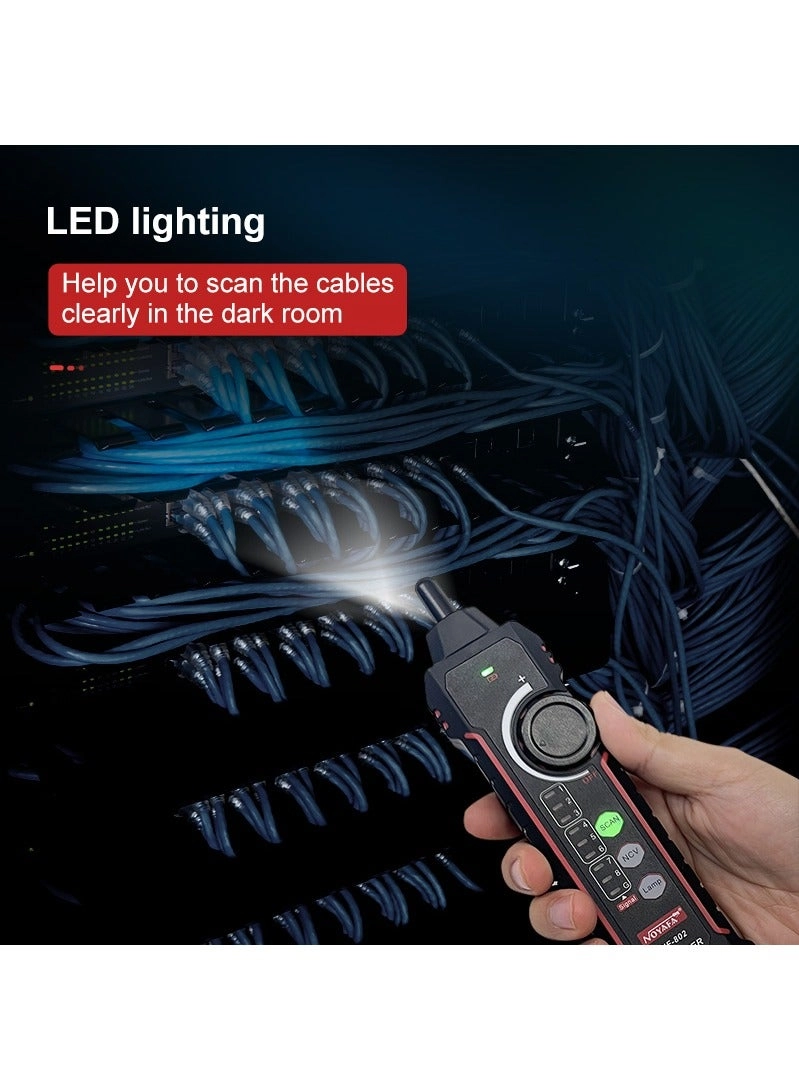

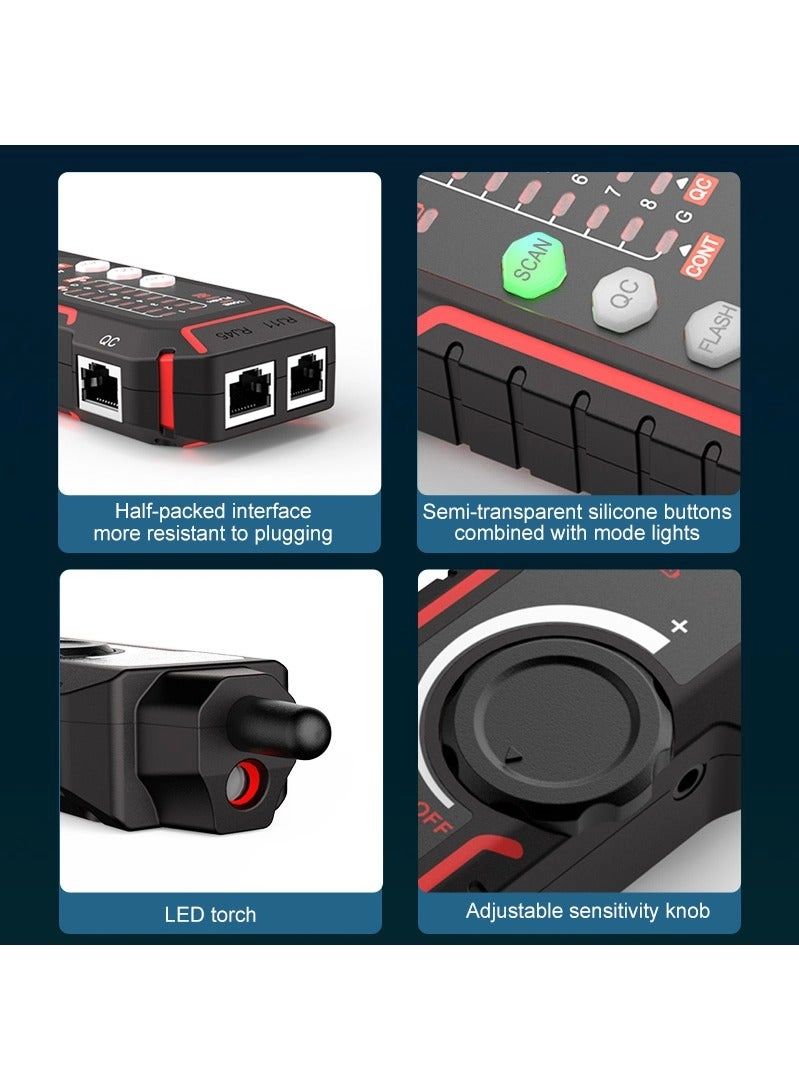

【Sturdy & resistant inner shell】Rubber outer layer for grip. LED light help you to scan the cables clearly in the dark room.

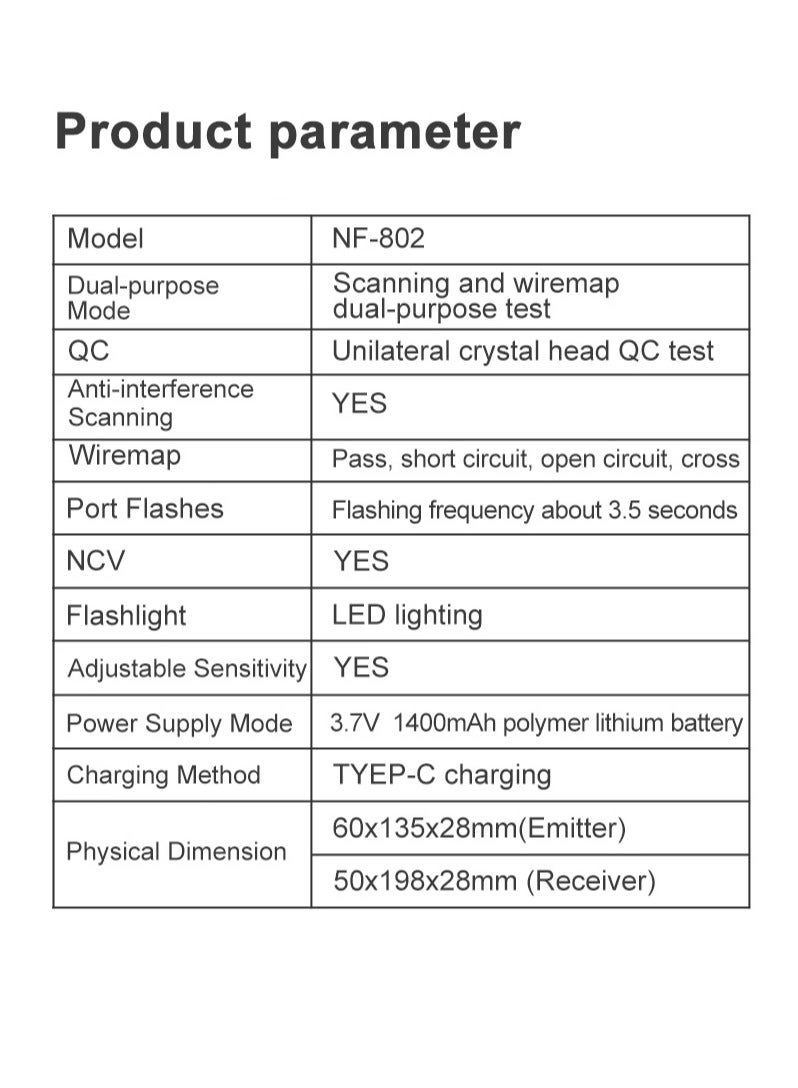

Product description

Model: NF-802

Suitable for network cable:CAT5 CAT6

Scrimping response speed: 1s

Stand-by current:Wiremap / SCAN / QC 25mA,Flash 150mA

Interface Type:RJ11, RJ45

Dual-purpose Mode: Scanning and wiremap dual-purpose test

Qc: Unilateral crystal head QC test

Anti-interference Scanning: YES

Wiremap: Pass, short circuit, open circuit, cross

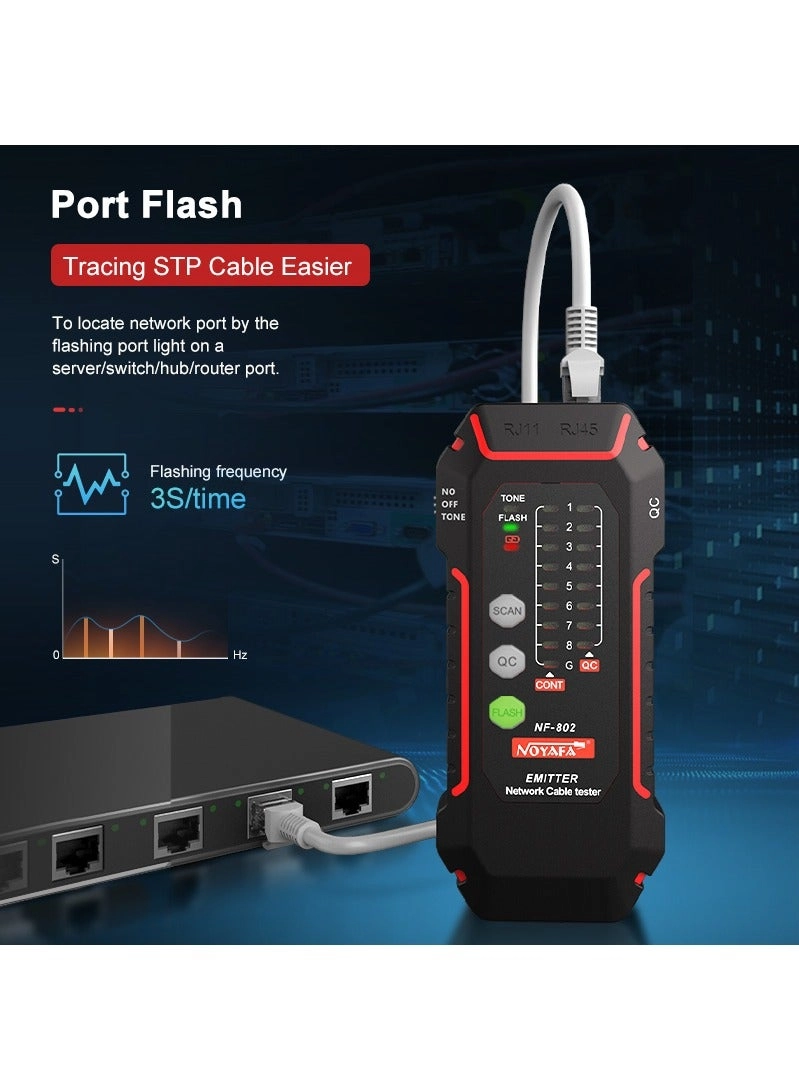

Port Flashes: Flashing frequency about 3.5 seconds

NCV: YES

Flashlight: LED lighting

Adjustable Sensitivity: YES

Headphone Function: YES

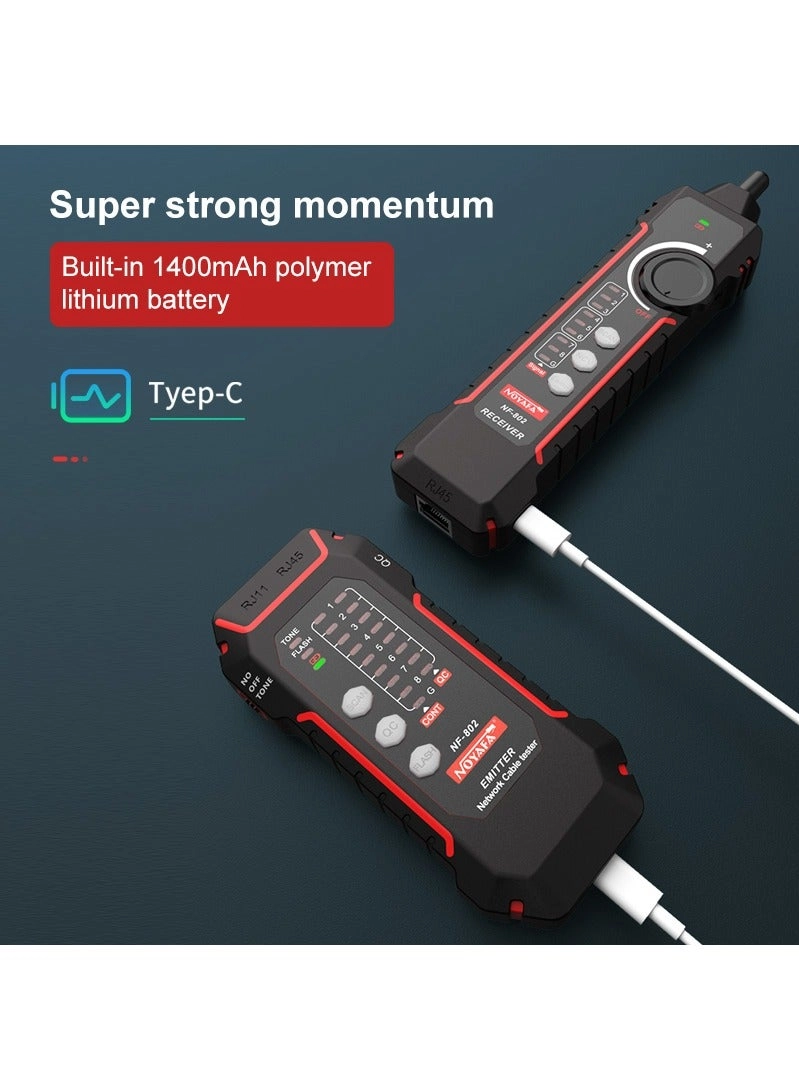

Power Supply Mode: 3.7V 1400mAh polymer lithium battery

Charging Method: TYEP-C charging

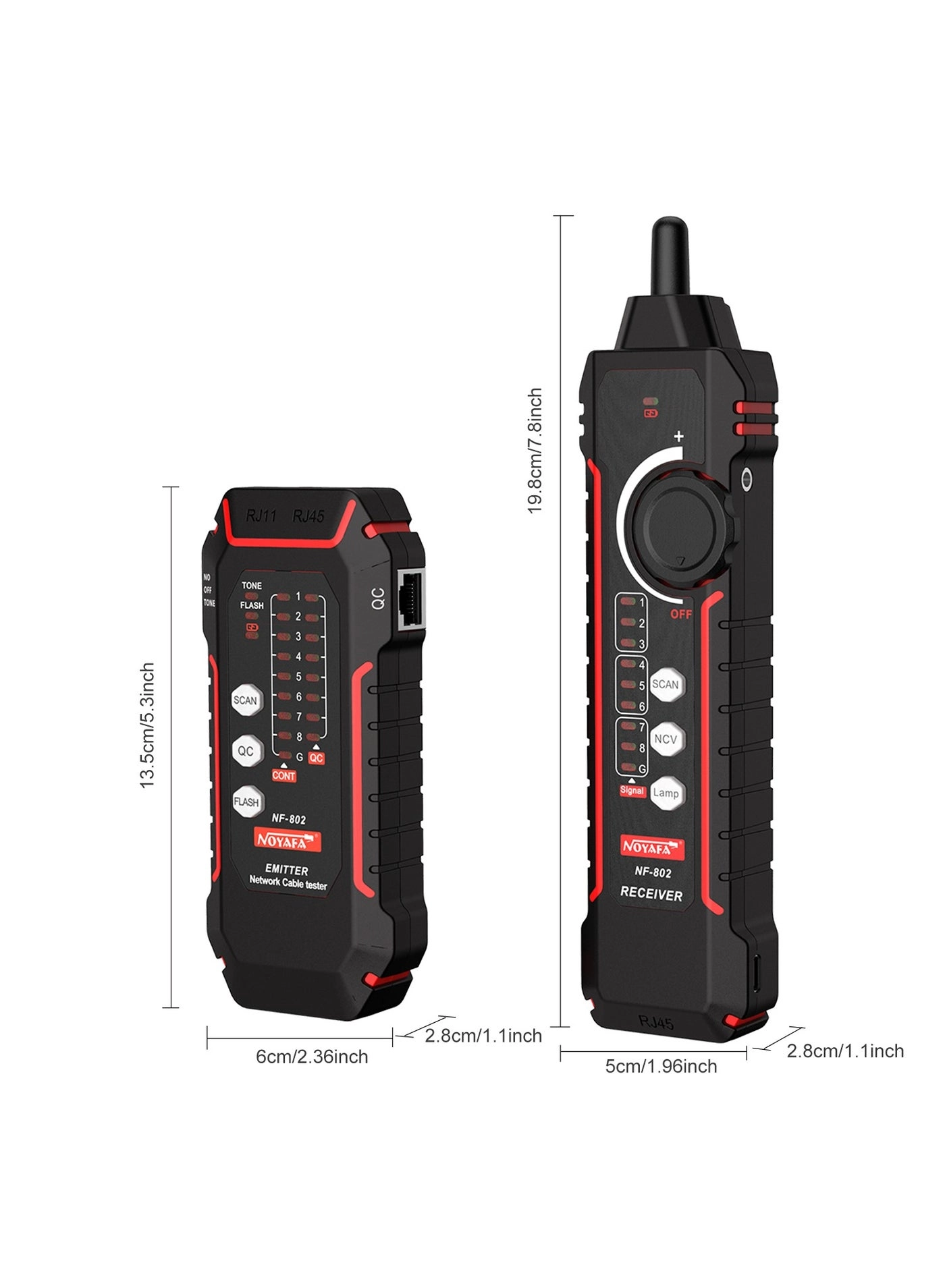

Physical Dimension: 60x135x28mm(Emitter)60x198x28mm (Receiver)
