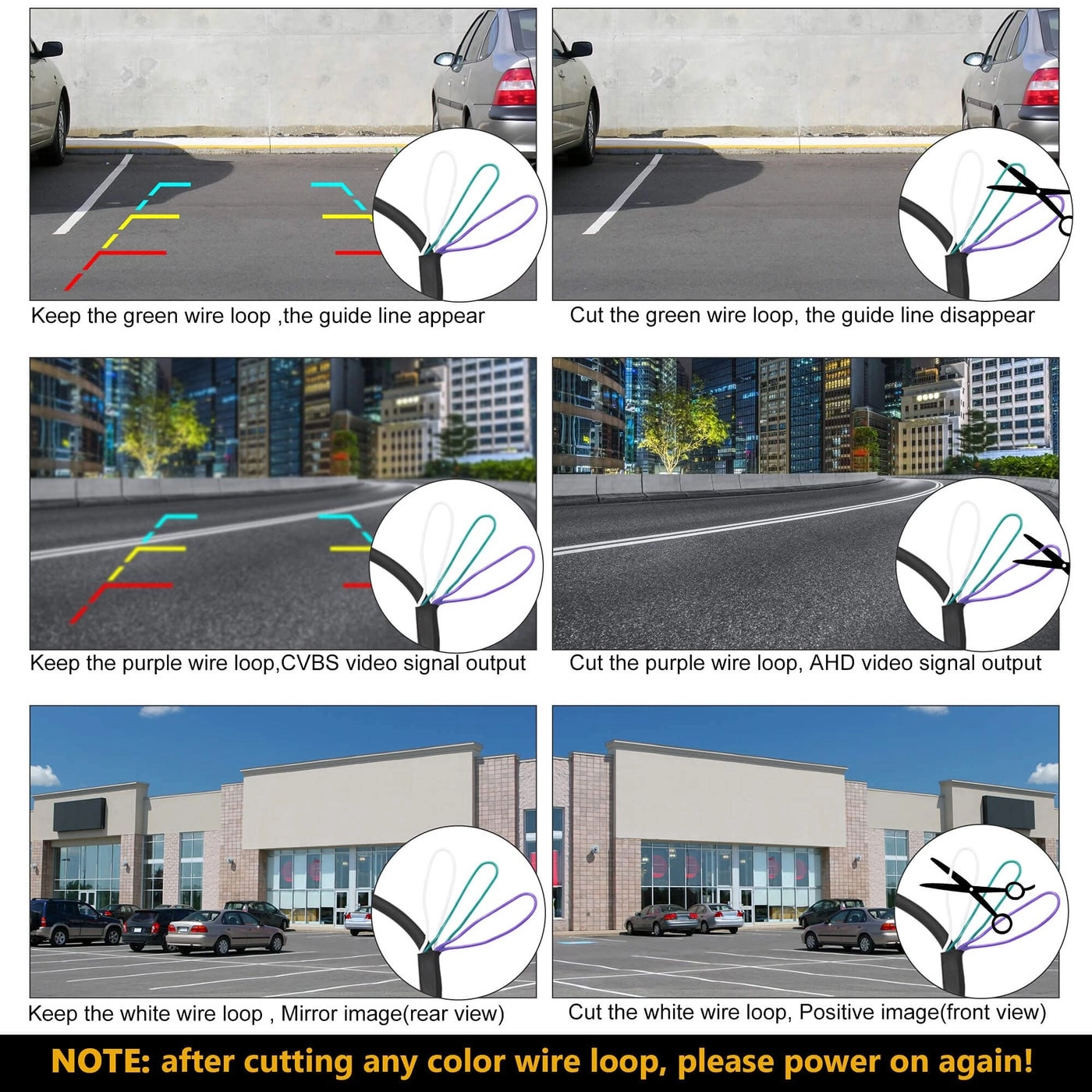

This car backup camera with 3 useful wire loops: To use as a Forward Camera, please cut the WHITE wire loop; *Cut the GREEN wire loop to remove the distance guidelines; *Cut the PURPLE wire loop to choose AHD (720P, 30fps) signal output. Please power on again after you cut any color wire loops, then the image should be correct. *Note: this rear view camera with the guidelines and CVBS video signal output as DEFAULT. Notes: *Before you cut this vehicle backup camera’s purple wire loop to choose AHD 720P 30fps video signal output, please make sure your Android stereo support AHD video signal input first. *keep this car front view camera’s wire and 26ft extension wire away from high temperature area, such as engine or exhaust. Also please clean this backup car camera’s lens regularly to free it from dirt, water drops, snow drops etc. *This backup car camera doesn’t fit sucked type dash cam and mirror dash cam, because these dash cam have different connectors and PIN definition, even some of them with same 4 PIN connector. *If connect this licence plate backup camera to a GPS navigator, please separately order one more adapter which with a RCA to 2.5mm connector to complete installation. *If connect this car rear view camera to a FACTORY RADIO, please separately order a suited Harness to complete installation, because different RADIO need different Harness to work together. *This reverse camera is perfect for rear and front view, and working great for most vehicles. *If you use T-taps for connecting this rear camera to power source, please check if they are connected solid. *To adjust this HD backup camera view angle, just move up or down the camera body. *If this universal backup camera is mounted offset, the guidelines on image will be offset. *This rearview camera’s output video signal is NTSC, so your head units or control boxes’ signal input have to be setting up to be NTSC, NOT PAL.
Connector Type:
Mini 4 pin
voltage :
12
Included Components :
waterproof rearview camera,weatherproof rear view camera,adjustable backup camera for car,HD reverse camera,license plate backup camera

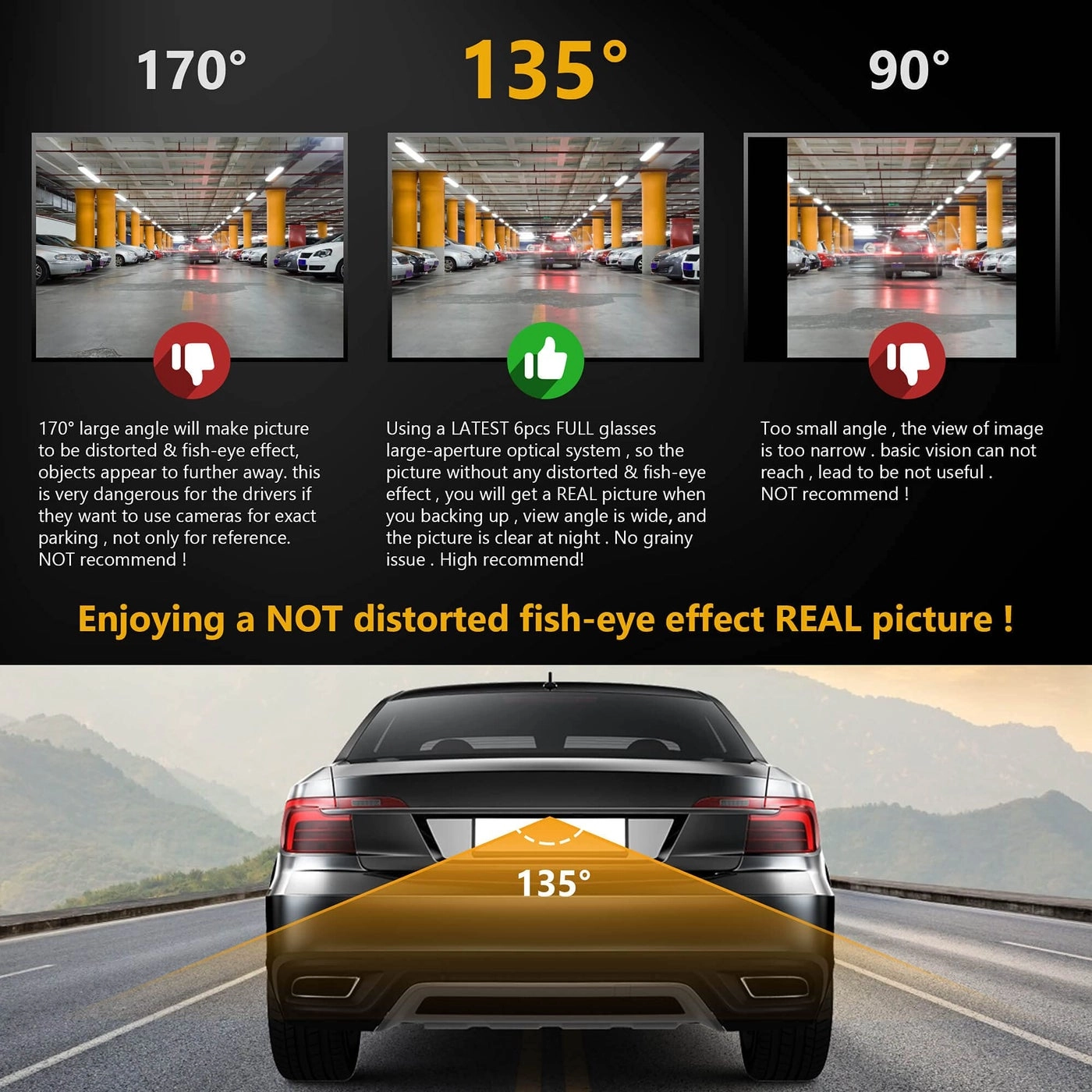

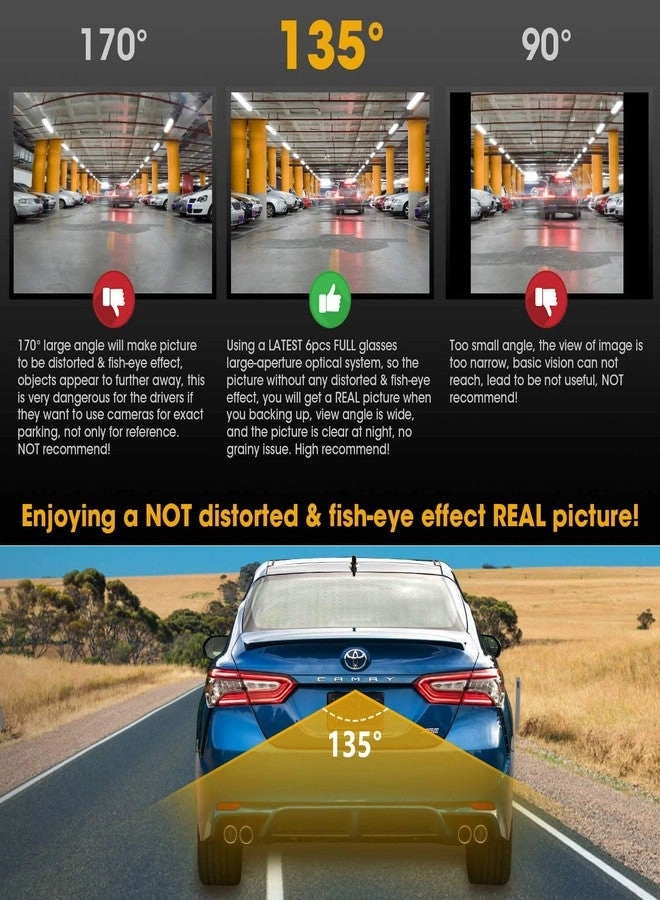

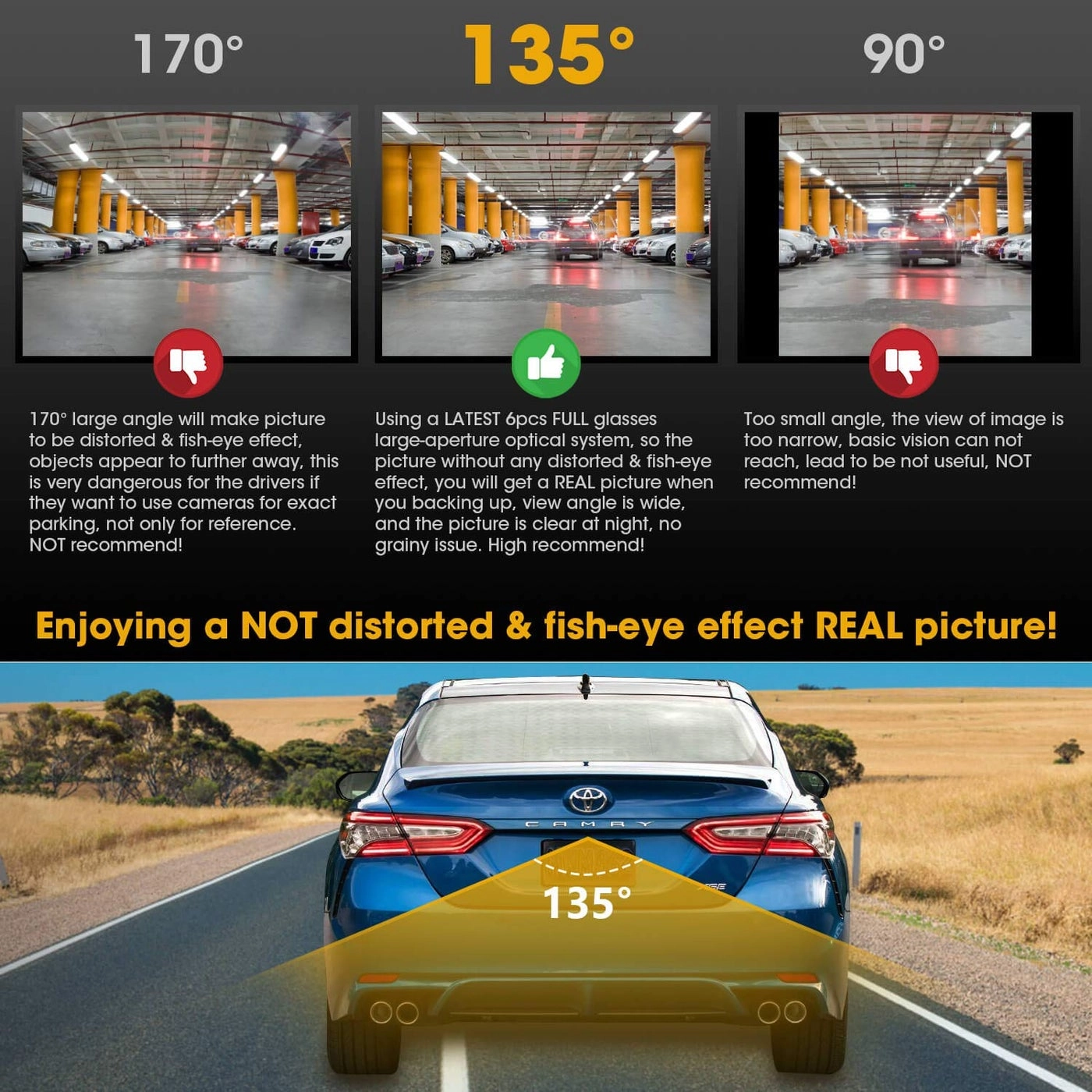

Backup camera license plate with a LATEST 6pcs FULL glasses F1.8 large aperture optical system and horizontal 135 degree wide view angle lens, the picture without any distorted effect,you will get a REAL picture when you backing up.Also you can check the invisible blind spot clearly and make parking safe and simple

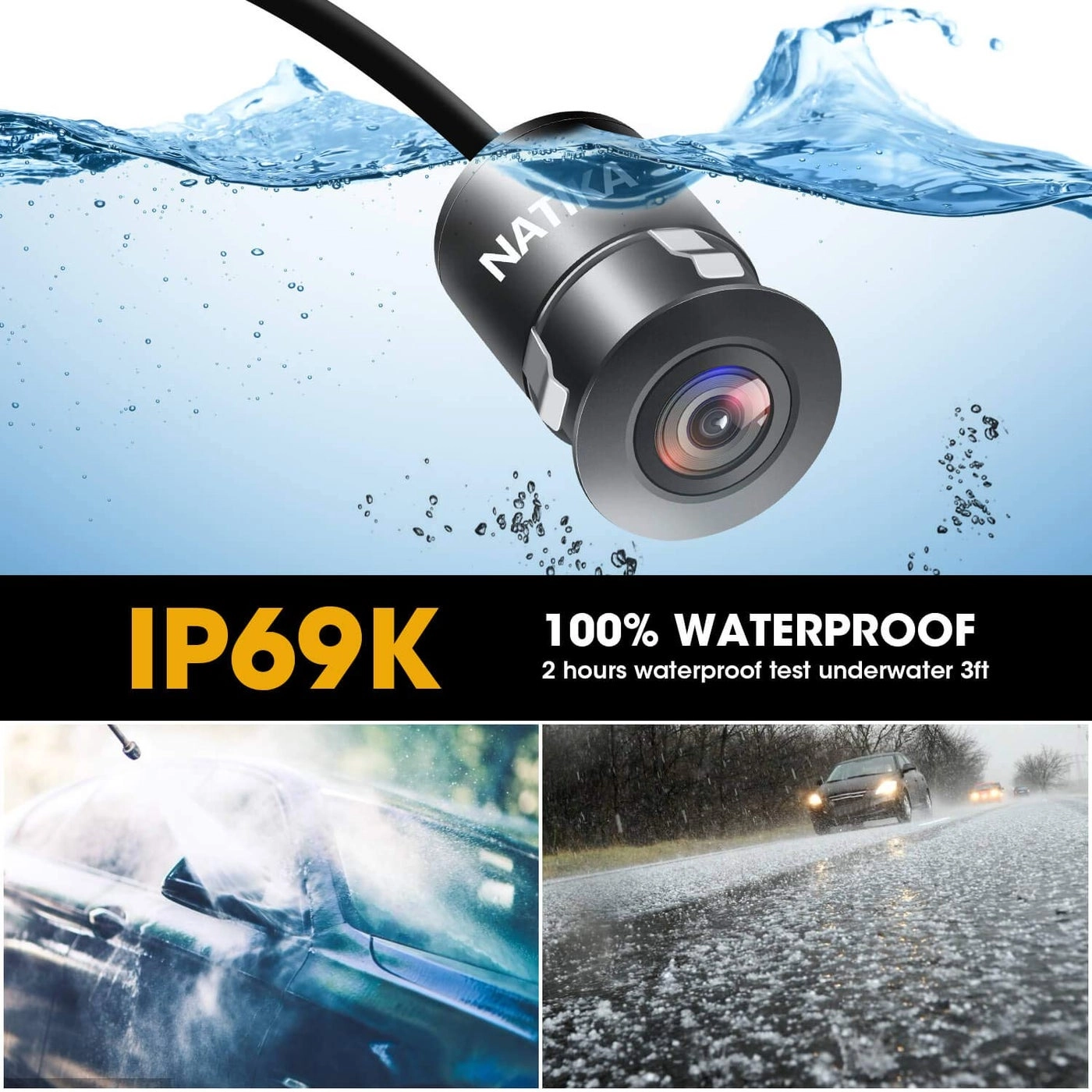

Bracket surface mount reverse camera support IP69K waterproof IP rate. It designed with fully sealed glue filling craft, you absolutely no need to worry about water, fog or mist inside NOTE: please separately order a suitable harness to complete installation if connect it to a FACTORY RADIO

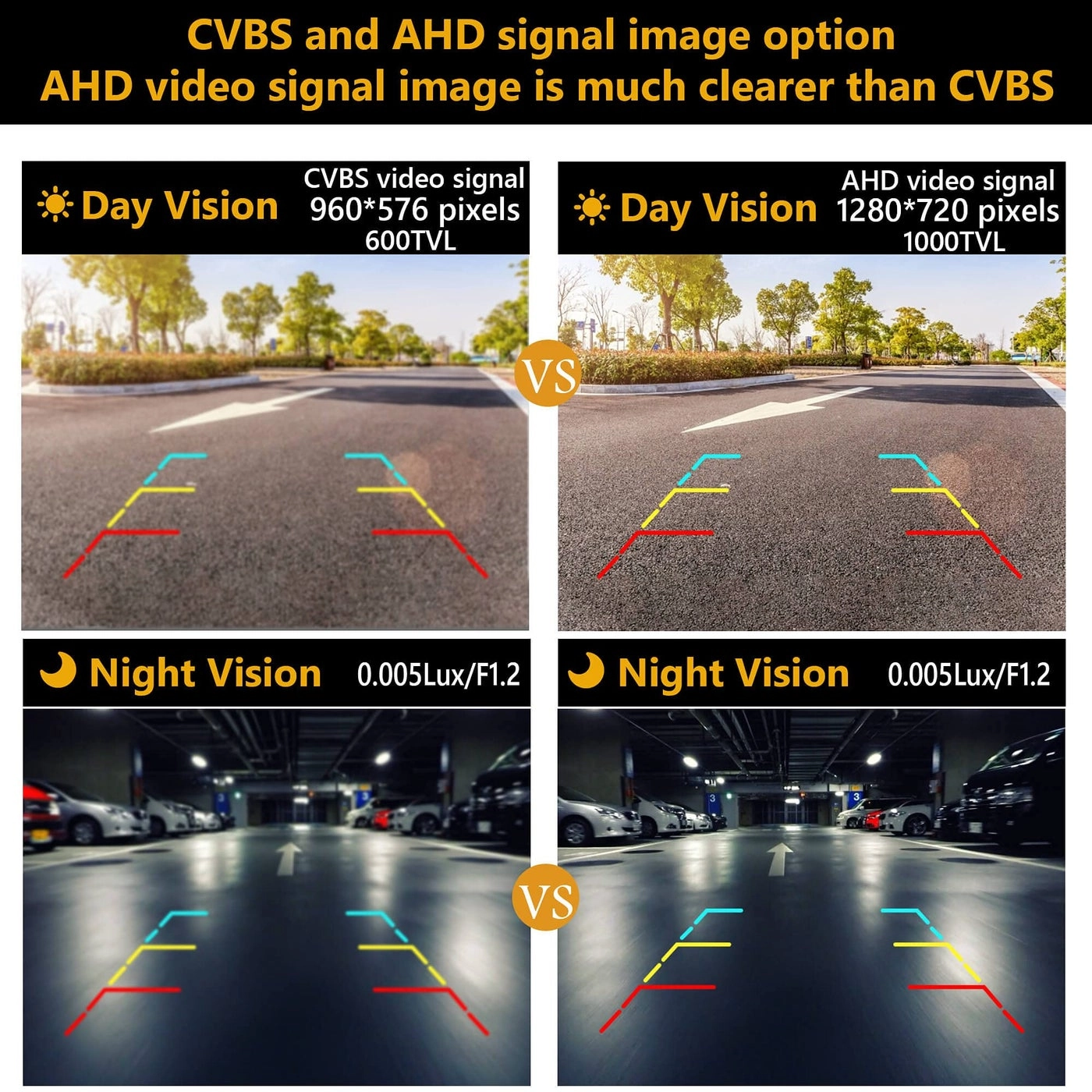

Rear view camera license plate support both CVBS and AHD video signal output(great for Android stereo). CVBS by default, cut the purple loop to choose AHD signal (AHD,720P,30fps). It with starlight level night vision (0.005Lux,excellent low-light performance), you never worry about parking during night, rainy day or in dark garage

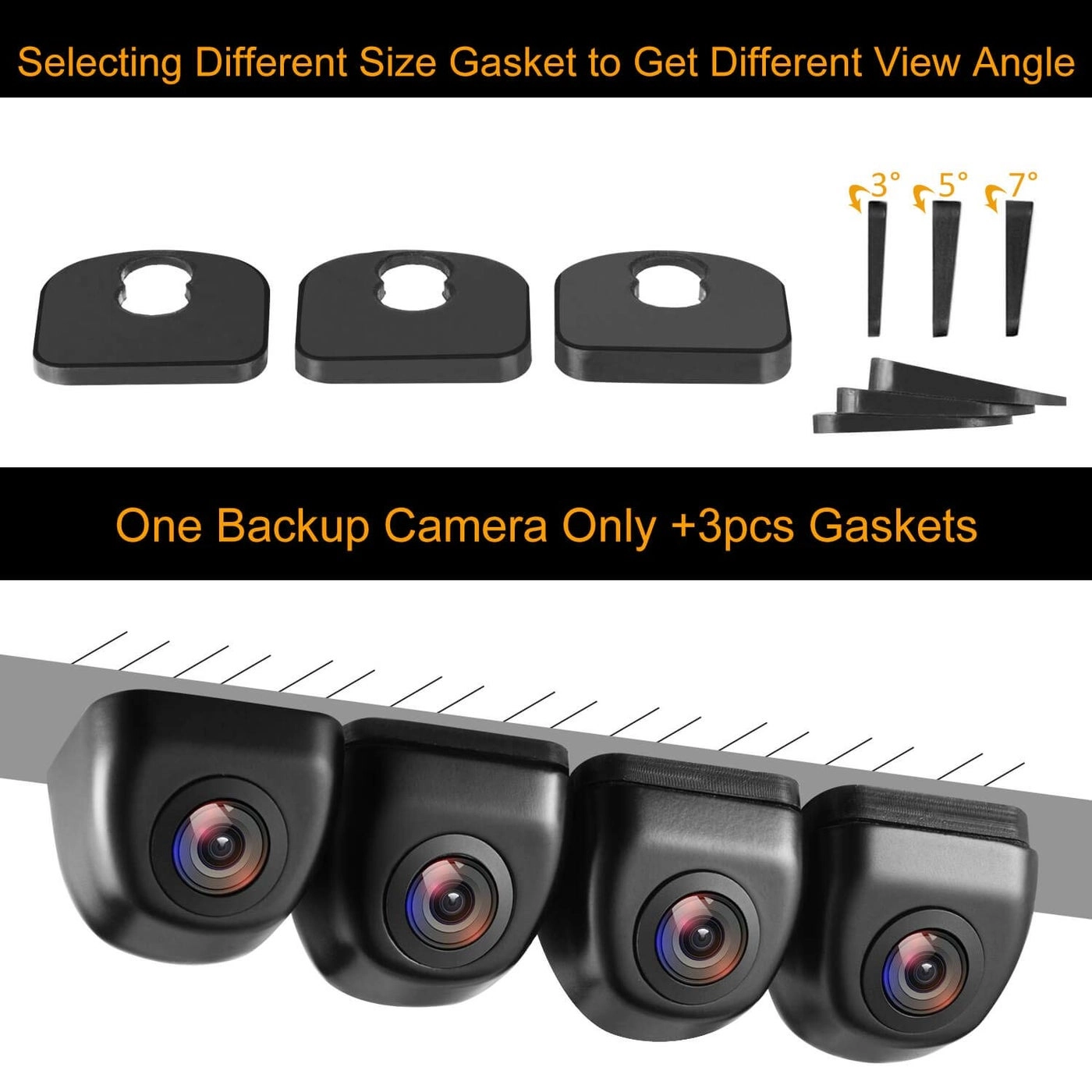

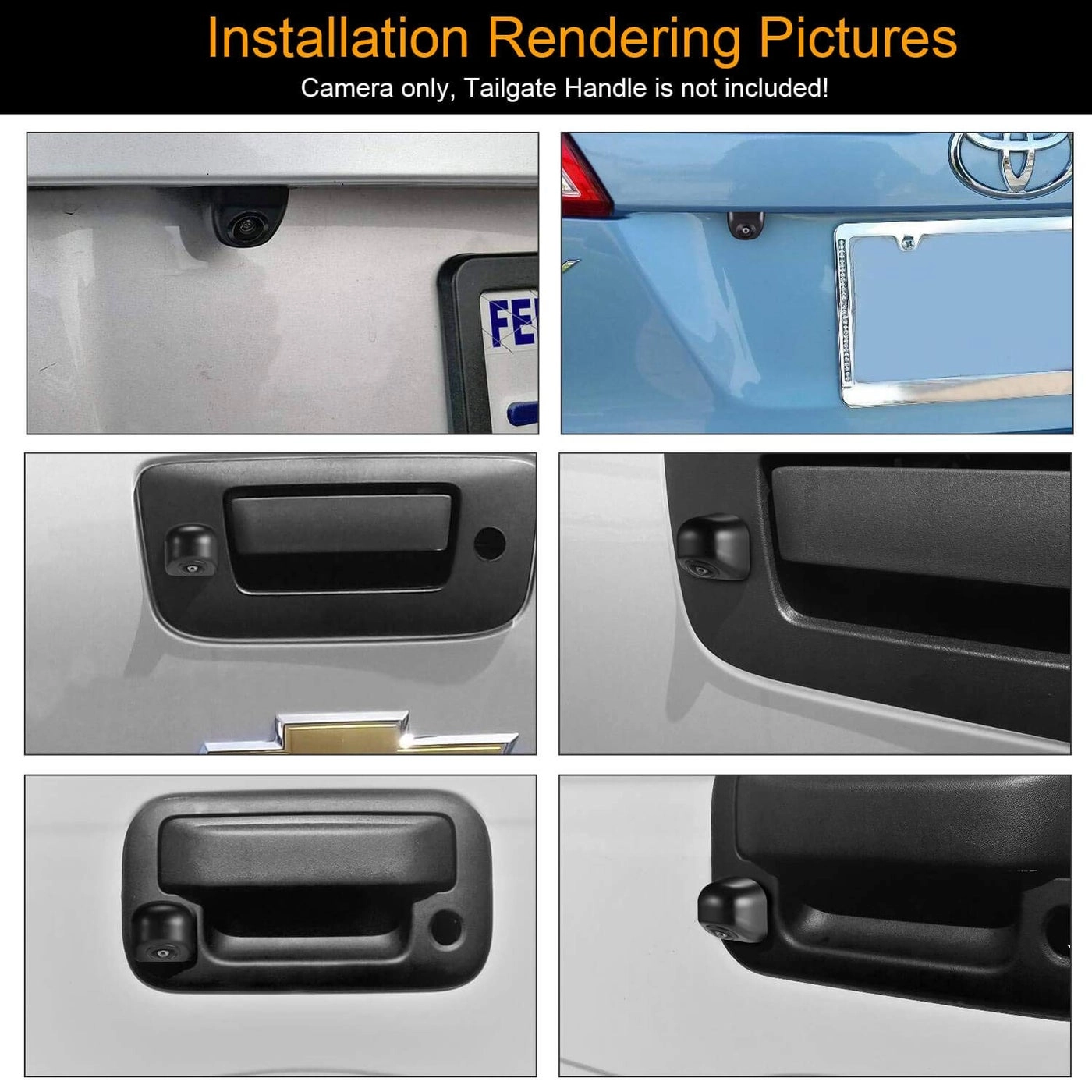

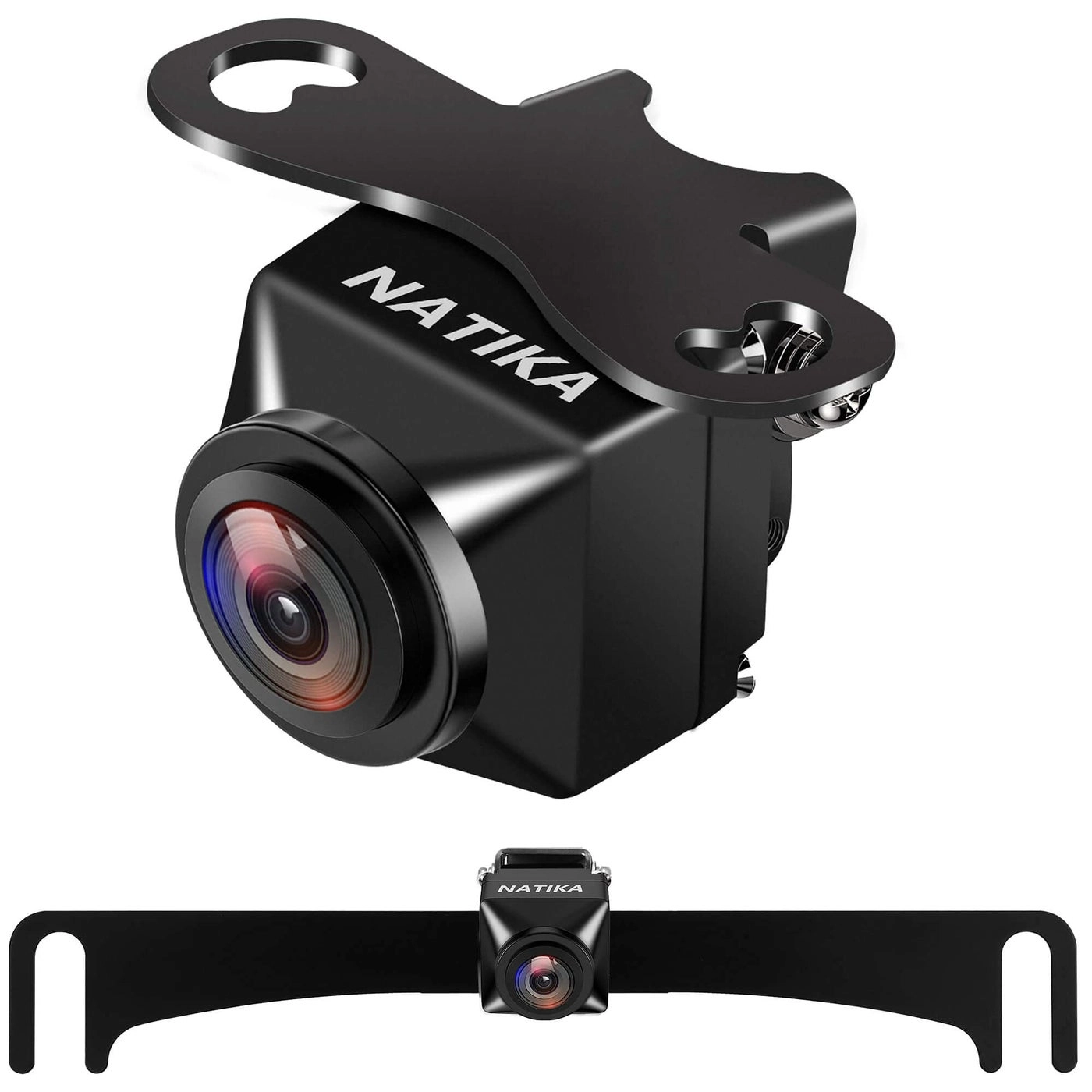

Hitch reverse camera's housing and brackets are metal and stainless, small size and with 2 in 1 mount option design ( license plate or bracket surface mount ). Also it built in 3 multifunctional switching loops: cut the white loop for front view, cut the green loop to remove the guidelines and cut the purple loop to choose AHD video output
Beware: According to our experience, some cheap or old Android stereos have the setting of AHD video signal input option, but the truth it does not work, because their hardware inside do not support it. If so, please use the default CVBS video signal output (do not cut the purple wire loop, otherwise you will get a black screen)
