1. [EXTENSIVE MEASUREMENT FUNCTIONS] The HABOTEST AC/DC Digital Clamp Meter empowers users with diverse measurement capabilities including inrush and VFD currents, AC/DC voltage, capacitance, frequency, and temperature readings. It addresses the demands of electricians and technicians looking for a comprehensive solution to their electrical testing needs.
2. [USER-CENTRIC DESIGN] Designed for maximum usability, this clamp meter features a 40mm wide opening allowing precise measurements without interrupting the circuit . With its audible NCV sensor and built-in flashlight, it enhances safety and convenience during measurements, especially in hard-to- areas or low-light conditions.
3. [SAFETY COMPLIANCE] Adhering to stringent IEC61010-1 safety standards and rated for CAT III applications, this clamp meter provides peace of mind during high-voltage checks. Its auto-off function further ensures battery longevity, contributing to seamless operation and reliability for extended periods.
4. [COMPREHENSIVE TESTING CAPABILITIES] In addition to standard readings, this clamp meter features essential functions like /min value tracking, and temperature measurements in Celsius and Fahrenheit. These functionalities enhance your overall testing capabilities, allowing for effective diagnostics and troubleshooting in various environments.
5. [LIGHTWEIGHT AND DURABLE DESIGN] Constructed from ABS, this clamp meter is both lightweight at 311g and compact with of 24*8*4.5cm, making it easy to handle and ideal for transporting. Complete with test leads and a thermocouple, it's tailored requiring portability and efficiency in their work.
Spec:

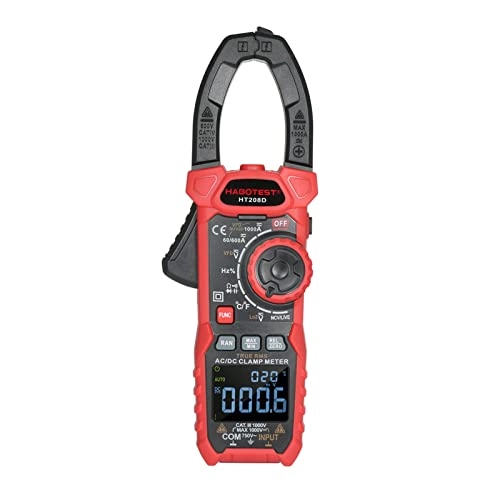

This is a dual impedance true RMS digital multimeter integrating a variety of measurements like AC/DC voltage, AC/DC current, frequency, duty ratio, resistance, capacitance, temperature, diode, continuity, NCV, VFD, inrush current, etc.. And there are more functions like last data hold, flashlight, ./Min./Relative value, Celsius/Fahrenheit degree, and zero key.
Features:
CLAMP MULTIMETER: Measures inrush current, VFD current/voltage, AC/DC current, AC/DC voltage, frequency, duty ratio, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
WIDE OPENING JAW: Opening jaw capacity is 40mm, wide enough to measure without disturbing the circuit.
LOUD BEEP: NCV sensor send out audible and visual alarm once received electromagnetic signal.
MORE FUNCTIONS: Features data hold, flashlight, low battery display, Celsius/Fahrenheit degree, ./Min./Relative value, and Zero(reset) key.
SAFE TO USE: Designed and conforms to IEC61010-1, CAT III , safe and reliable.
AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.

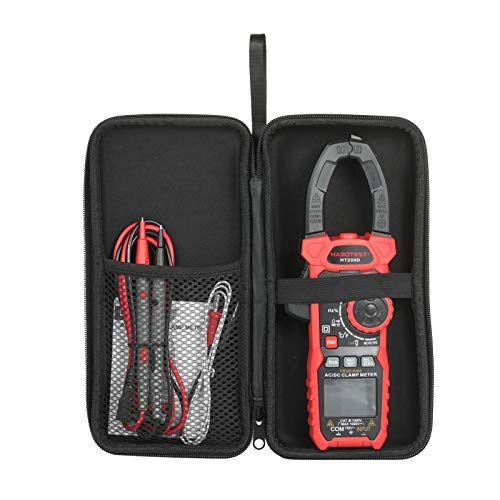

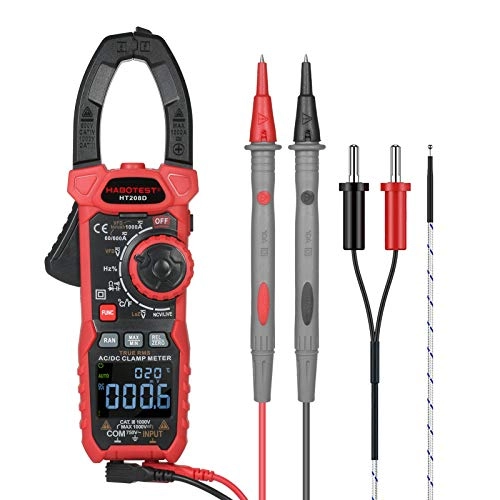

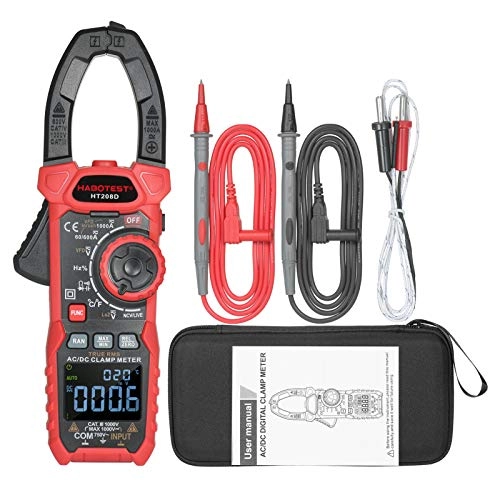

MULTI TESTER: Comes with 2 test leads and a thermocouple to be used as a multitester.
Note:
*MUST read the user manual carefully before use for safety.
*Battery not included.
Parameters:
Display: 6000 count
Clamp Opening Size: 40mm
Auto-off: approx. 15 minutes
. Voltage Between Terminals and Earth Ground: AC750V or DC
Range Resolution Accuracy
DC Current ( current: 1000A)
60A 0.01A ±(2.5%reading+8)
600A 0.1A
1000A 1A
AC Current ( current: 1000A, True RMS)Frequency range: 0.1~600A: 40Hz~400Hz600~1000A: 40Hz~60Hz
60A 0.01A ±(2.5%reading+8)VFD: ±(5.0%reading+10)INRUSH: ±(5.0%reading+10)
600A 0.1A
1000A 1A
DC VoltageInput impedance: 10MΩ(LoZ: 300kΩ)Overload conservation: AC750V/DC1000VMaximum input voltage: AC750V/DC1000V
600mV 0.1mV ±(0.5%reading+5)
6V 0.001V
60V 0.01V
600V 0.1V
1V ±(0.8%reading+5)
AC VoltageInput impedance: 10MΩ(LoZ: 300kΩ)Overload conservation: AC750V/DC1000VMaximum input voltage: AC750V/DC1000VFrequency range: 40Hz~1kHz, True RMS
600mV 0.1mV ±(0.8%reading+5)
6V 0.001V
60V 0.01V
600V 0.1V
750V 1V ±(1.0%reading+5)
VFD(750V) 0.1V ±(2.0%reading+5)
ResistanceOverload conservation: 250V
600Ω 0.1Ω ±(1.0%reading+5)
6kΩ 0.001kΩ
60kΩ 0.01kΩ
600kΩ 0.1kΩ
6MΩ 0.001MΩ
60MΩ 0.01MΩ
Diode It displays the approximate forward voltage value of the diode. Forward DC current is about 1.5mA;Reverse DC voltage is about 3V;Overload conservation: 250V
Continuity Test Voltage Approx. 1VOverload conservation: 250V
CapacitanceOverload conservation: 250V
10nF 0.001nF ±(4.0%reading+5)
100nF 0.01nF
1000nF 0.1nF
10μF 0.001μF
100μF 0.01μF
1000μF 0.1μF
10mF 0.001mF
100mF 0.01mF ±(5.0%reading+10)
Frequency/Duty RatioOverload conservation: 250V
10Hz 0.001Hz ±(1.0%reading+3)
100Hz 0.01Hz
1000Hz 0.1Hz
10kHz 0.001kHz
100kHz 0.01kHz
1000kHz 0.1kHz
10MHz 0.001MHz ±(3.0%reading+3)
1~99% 0.1%
Temperature*The below
