Milesight UR75-504AE-W2 — Industrial 5G Router (Wi-Fi 6 | Dual SIM | GNSS)

The Milesight UR75-504AE-W2 is a high-performance, industrial-grade 5G router built for M2M and IoT applications. It combines fast 5G cellular backhaul with a 5-port Gigabit Ethernet switch, Wi-Fi 6, RS232/RS485 serial ports, digital I/O and built-in GNSS positioning. The rugged IP30 metal housing and wide -40°C to +70°C operating range make it ideal for smart grid, industrial automation, telemetry and remote monitoring deployments.

Technical Specifications

• Cellular: 5G NR SA & NSA / 4G LTE / WCDMA, dual carrier aggregation up to 4.67 Gbps download
• SIM: 2 x Mini SIM-2FF (1.8V/3V) with automatic dual-SIM failover
• CPU & Memory: Quad-core ARM Cortex-A55 @ 2 GHz, 1 GB LPDDR4x RAM + 1 GB NAND Flash, 1 x M.2 NVMe SSD slot
• Ethernet: 5 x 10/100/1000 Mbps (1 WAN + 4 LAN), 1.5 kV RMS isolation
• Wi-Fi: Wi-Fi 6 (802.11ax) dual-band, 2.4 GHz up to 600 Mbps + 5 GHz up to 1200 Mbps, AP or Client mode, WPA3
• GNSS: GPS/GLONASS/BDS/Galileo/QZSS, 2 m CEP accuracy, NMEA0183
• Serial: 1 x RS232 + 1 x RS485, 300-230400 bps, Modbus TCP/RTU gateway support
• Digital I/O: 1 x DI + 1 x DO with galvanic isolation (DO max 0.3A @ 30VDC)
• USB: 1 x USB 3.0 Type-C (power, network & debug)
• Power: 9-48 VDC or 5V/3A USB Type-C, surge & reverse-polarity protection, hardware watchdog
• VPN & Security: OpenVPN, IPsec, L2TP, PPTP; ACL, DMZ, SYN-Flood protection, IP/domain filtering, VLAN

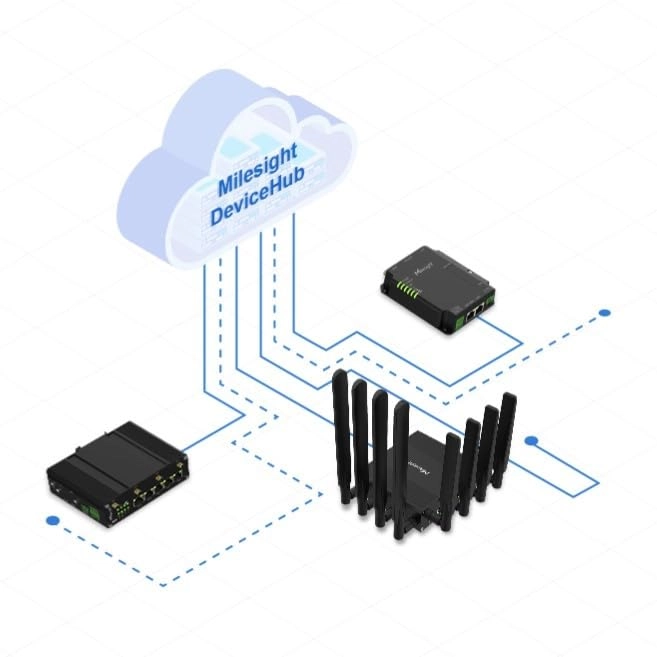

• Management: Web, SNMP v1/v2c/v3, DeviceHub, MilesightVPN, Node-RED, SMS control

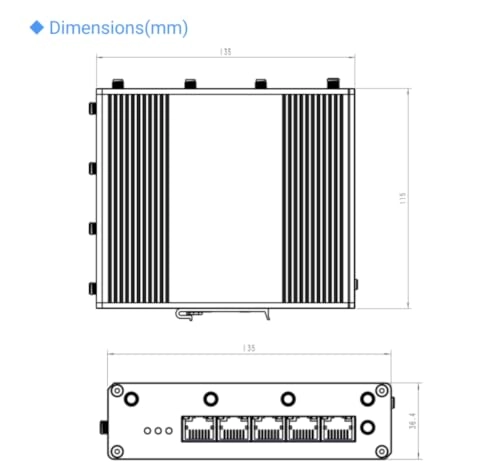

• Housing: IP30 metal, 135 x 115 x 36.4 mm, 567 g, DIN rail / wall / desktop mounting
• Environmental: -40°C to +70°C operating, 0-95% humidity (non-condensing), CE / RCM / RoHS
• Warranty: 3-year manufacturer warranty

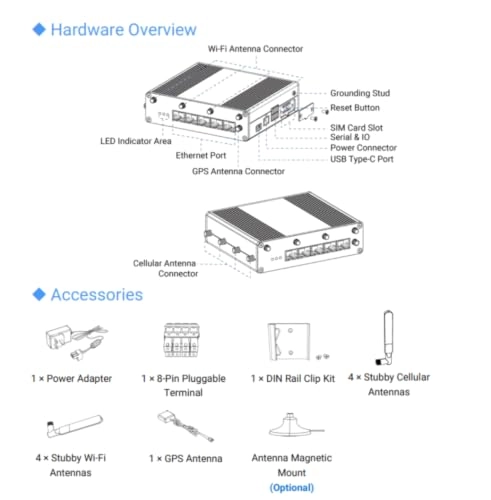

In the Box: 1 x UR75-504AE-W2 Router, 4 x Cellular Antennas, 4 x Wi-Fi Antennas, 1 x GNSS Antenna, 1 x Power Adapter, 1 x 8-Pin Pluggable Terminal, 1 x DIN Rail Clip Kit.

Note: This is the standard non-PoE variant. For PoE output (802.3 af/at, 30W per port / 60W total), choose the UR75-504AE-P-W2 model.
