Mikrotik CCR1036-8G-2S+ - 10Gbps

Unavailable

Key Features

DSL WAN: No
3G/4G USB modem compatibility: No
Processor threads: 36
Antenna type: Not supported
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
SIM card slot: No
Ethernet LAN data rates: 10, 100Mbit/s
Dual-band: No
USB ports quantity: 1
Installed SFP+ modules quantity: 2
Ethernet WAN: Yes
Rack capacity: 1U
Product colour: White

Specifications

Features

Internal memory

8000 MB

Processor frequency

1200 MHz

Rack mounting

✓

Rack capacity

Product colour

White

Weight & dimensions

Height

55 mm

Depth

145 mm

Width

355 mm

Power

AC input voltage

100 - 240 V

Power source type

Storage

Compatible memory cards

MS Micro (M2), MicroSD (TransFlash)

Design

LED indicators

Yes

Computer system

Processor cores

Built-in processor

✓

Antenna type

Not supported

Packaging content

Cables included

Network

Cabling technology

10/100/1000Base-T(X)

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

✓

SIM card slot

✗

Ethernet LAN data rates

10, 100

Dual-band

✗

Ports & interfaces

Ethernet LAN (RJ-45) ports

Serial ports quantity

USB ports quantity

Installed SFP+ modules quantity

Ethernet WAN

✓

Processor

Processor threads

Memory

Flash memory

1024 MB

Logistics data

Harmonized System (HS) code

85176990

WAN connection

3G/4G USB modem compatibility

✗

DSL WAN

✗

Product Details

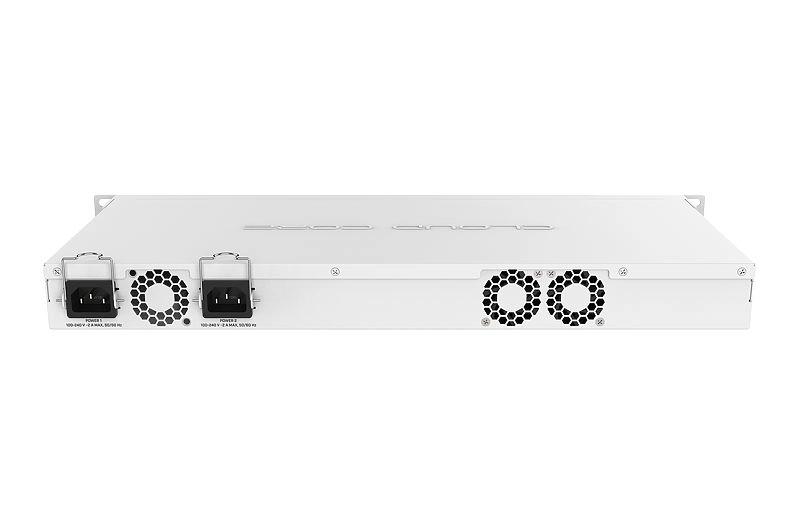

Our fastest router has now become even better - the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance, but now, ten gigabit links are possible. The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports and a serial console port. The new version of CCR1036-8G-2S+EM has onboard 8GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy! Supports both SFP (1.25G) and SFP+ (10G) modules
