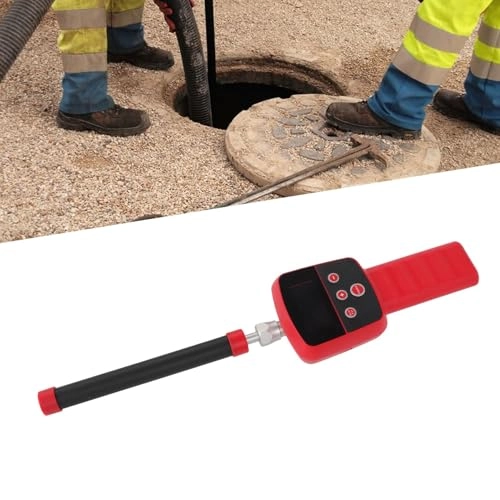

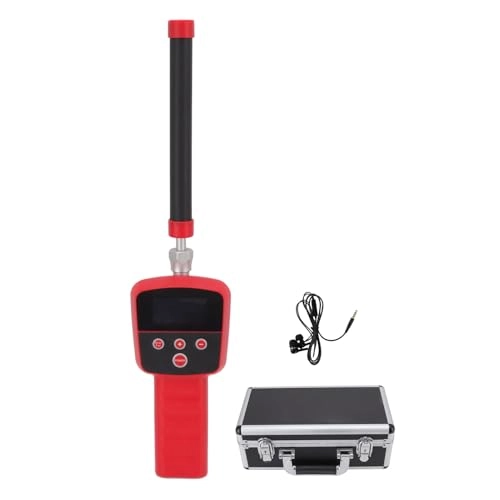

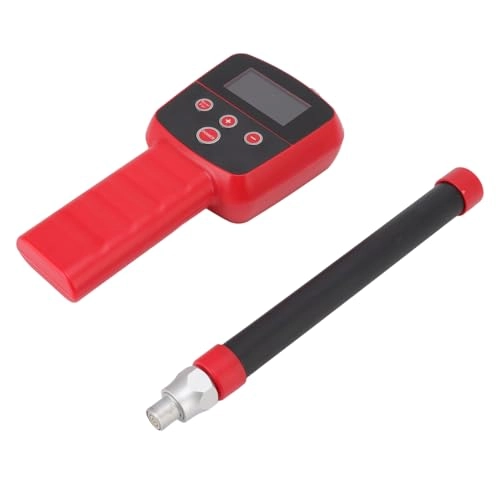

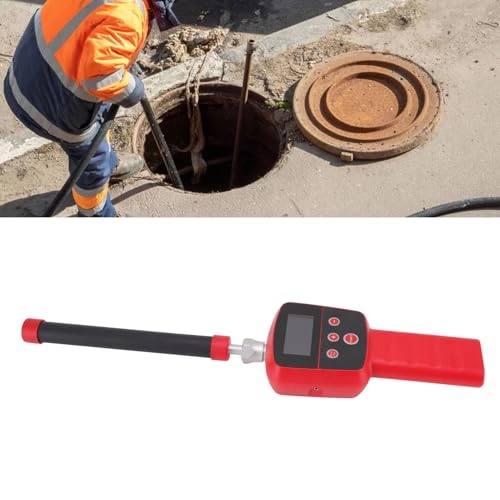

1. [BUILT-IN INDUCTION COIL] - Receives magnetic signals from pipes, calculates orientation & position easily. 2. [WIDE APPLICATION] - Ideal for water supply, cable pipelines, cave exploration, and more underground work. 3. [HIGH EFFICIENCY] - 512Hz transmitter helps locate probe quickly, saving time & costs. 4. [LED SCREEN] - Clear monitoring data display for easy viewing and practical use. 5. [PREMIUM MATERIAL] - Made of sturdy ABS material, suitable for long-term underwater use. Spec: Item Type: Sewer Camera Locator Material: ABS Gross Weight: 2049g / 72.3oz Working Frequency: 512Hz Modulation: None Batteries: 6 AA batteries (shipped without batteries) Use Time: 4 hours intermittent use Output: 50-1000Hz depends on signal strength Operating Temperature: -20°C to 60°C Product Size: 548x65x50mm / 21.6x2.6x2.0in Sensor: Separate angle sensor for and 0 signals How to Use: General layout 1.Power on and off (long press to power on; long press to power off) 2.A near or far switch controls overall sensitivity. The far position is recommended when starting to position the probe. When you are close to the transmitter and the meter goes to full scale and you cannot desensitize any further, switch to Near to pinpoint its precise location. 3.Meter Indicators: Indicates the strength of the signal (right) and 0 signal (left). 4.Speaker: Allows you to hear the transmitter's signal beeps or continuous sound, depending on the transmitter use Box/Cover. 5.Battery Indicator: Displays battery health status. 6.Instructions for use: Adjust the locator near or far switch and signal + or ‑ according to the actual environment to make the locator better match the transmitter. 7.It is recommended to set to Far mode (Signal is set to 9) at the beginning. When the LED screen shows that the signal is very strong, reduce the signal sensitivity level (you can hear a louder sound at the same time), and then you can narrow the detection range. PackageList: 1 x Host1 x 1 x Manual 1 x Aluminum Box/Cover 1 x Headphones Note: The 512 has only one mode, the sonde mode. in sounding mode. Search for signals emitted by a small detector or camera with a built‑in transmitter that has been routed through a duct. The detector must emit a 512Hz signal, and the can determine the approximate depth of the target. Start by turning the on, walking around, keeping the at waist height, and walking in the general direction of the transmitter while slowly sweeping the back while pointing in the direction of the transmitter. You will notice that the signal will get bigger. As you get closer, reduce the sensitivity as needed to keep it within range. Toggle the switch to Nearby when you can't keep the meter below full scale Continue in the direction of signal. When you get to the point where the signal seems to be the strongest, whichever direction you move will make it weaker, then you know you've found a detector that's just below the center of the mast. Move to another place, look for this signal again, and see if you always come back to the same place for confirmation. If you followed each step correctly, you should find yourself above the every time. Keep practicing until you get consistent results. The product does not include a transmitter, you need to bring your own 512HZ transmitter for use.
