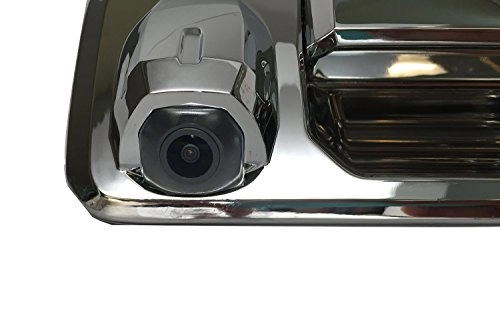

Master Tailgaters Tailgate Handle with Backup Camera - RCA 600 TV Lines

Master Tailgaters Tailgate Handle with Backup Camera Replacement for Toyota Tundra (2014-2024), Tacoma (2016-2024)

COLOR:Chrome

For use with:

• Toyota Tundra (2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024) (All Submodels, All Engines)
• Toyota Tacoma (2016 2017 2018 2019 2020 2021 2022 2023 2024)

What's Included:

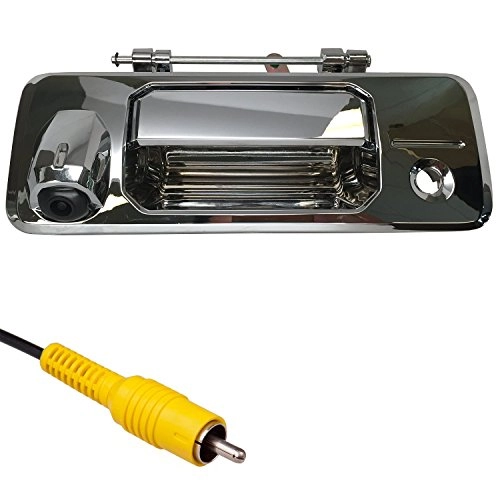

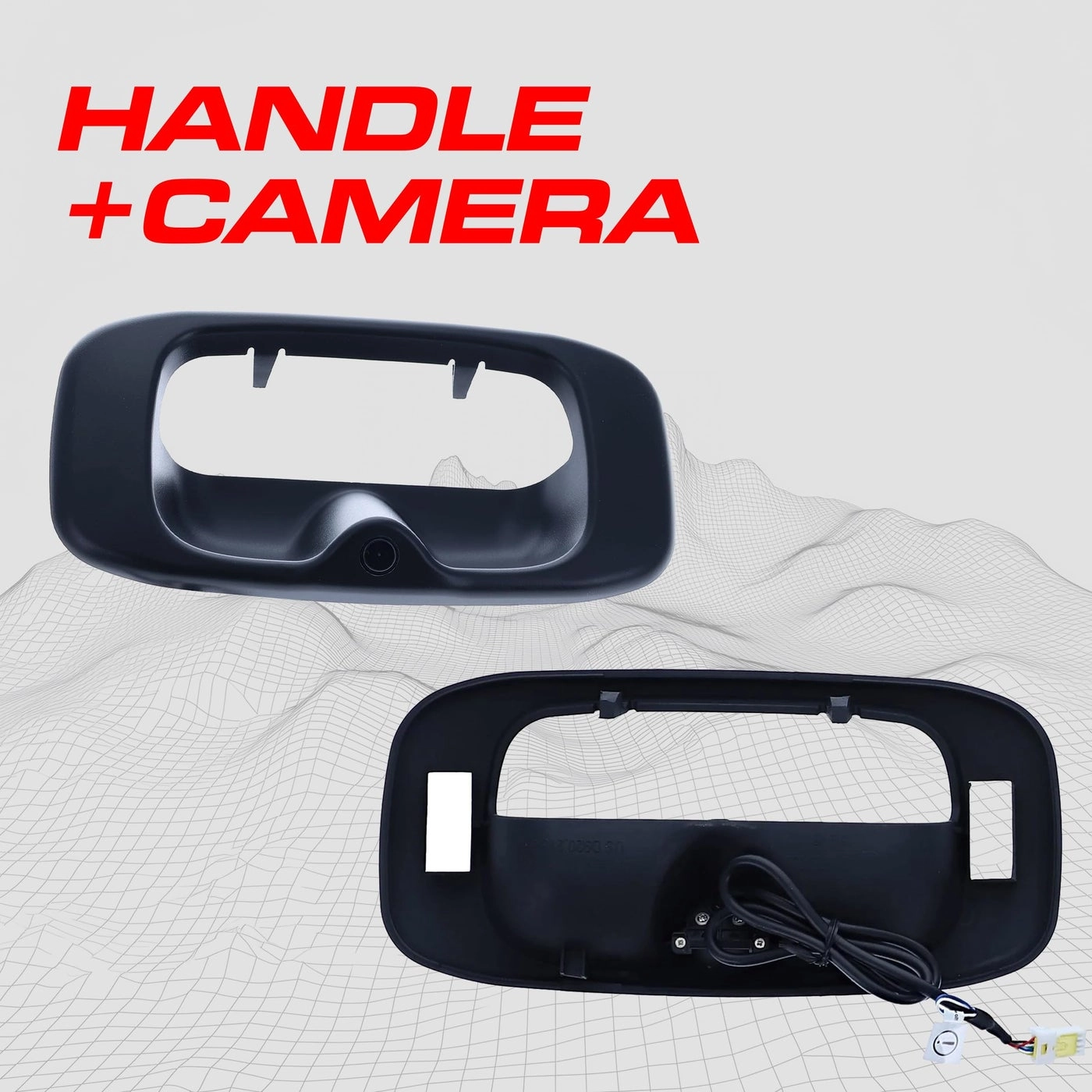

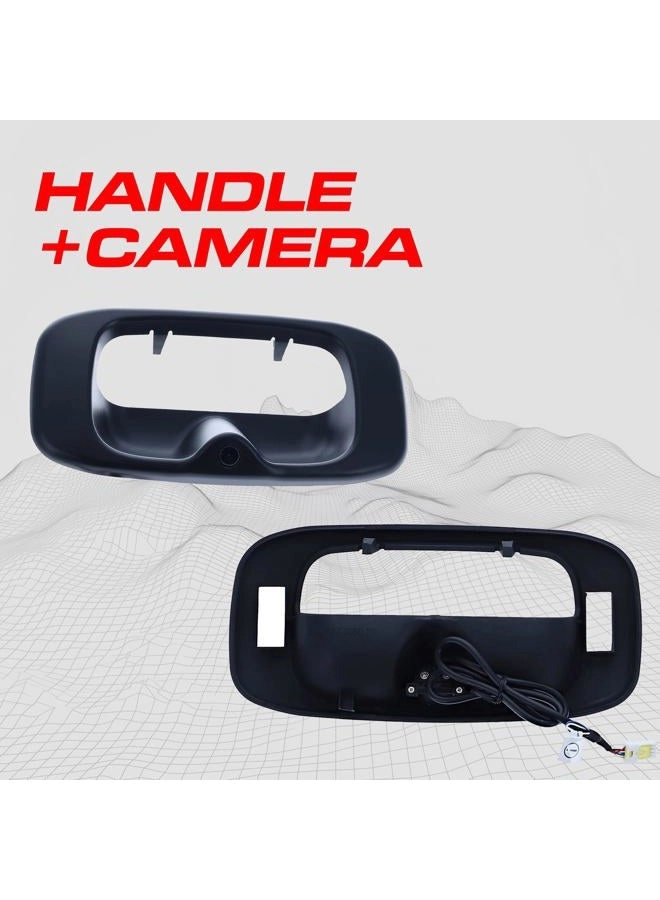

• Tailgate Handle with Backup Reverse Camera

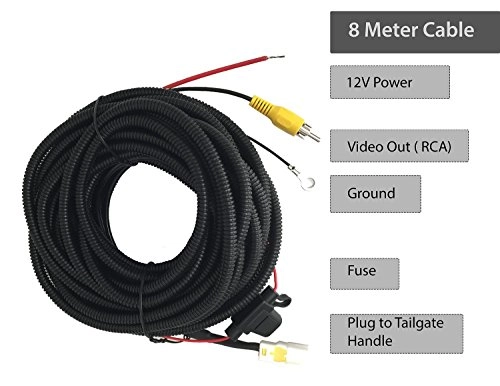

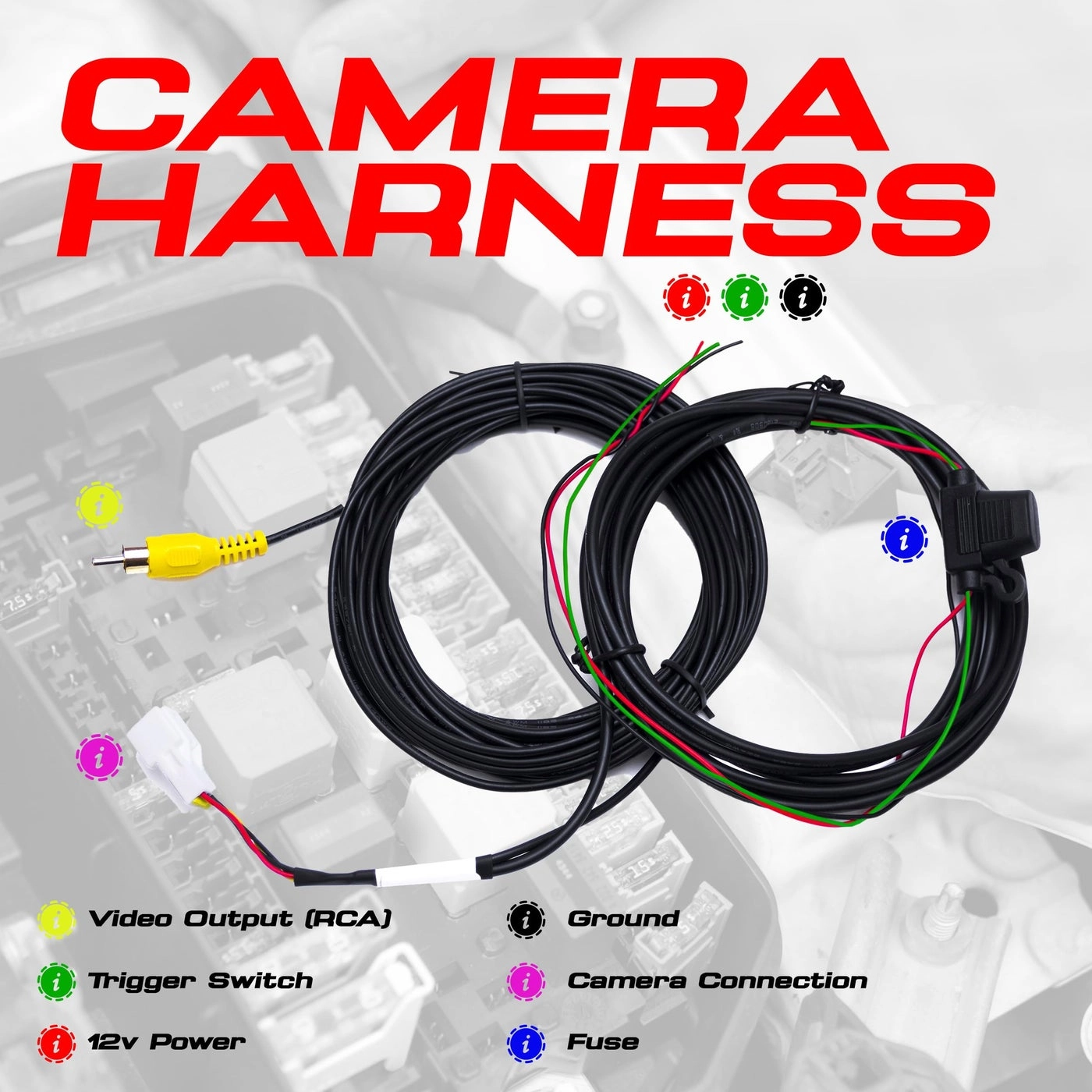

• 26 Foot Video and Power Cable
• Installation Instructions
• 2 YEAR NO QUESTIONS ASKED WARRANTY

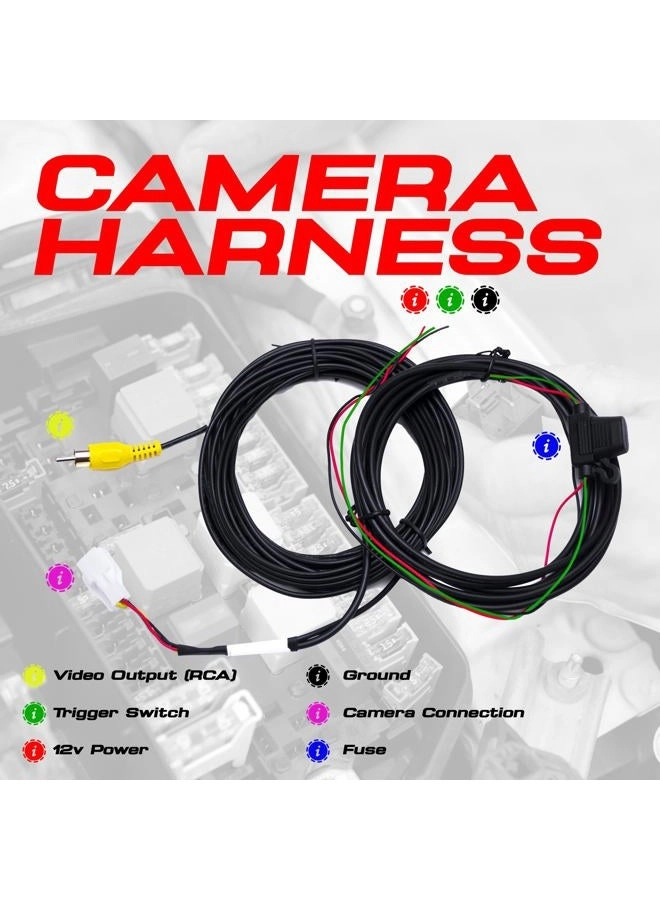

Description: This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters.

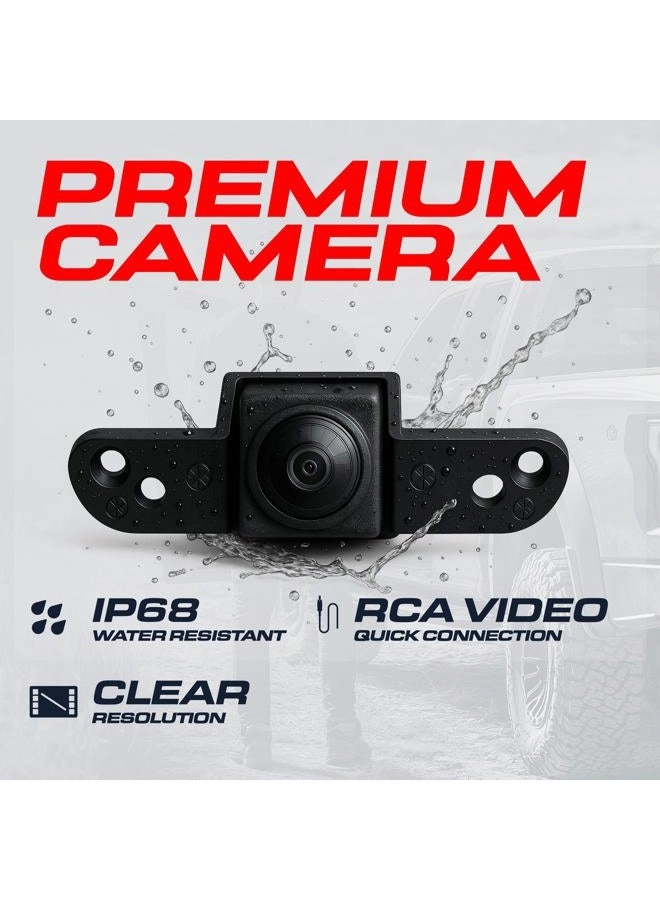

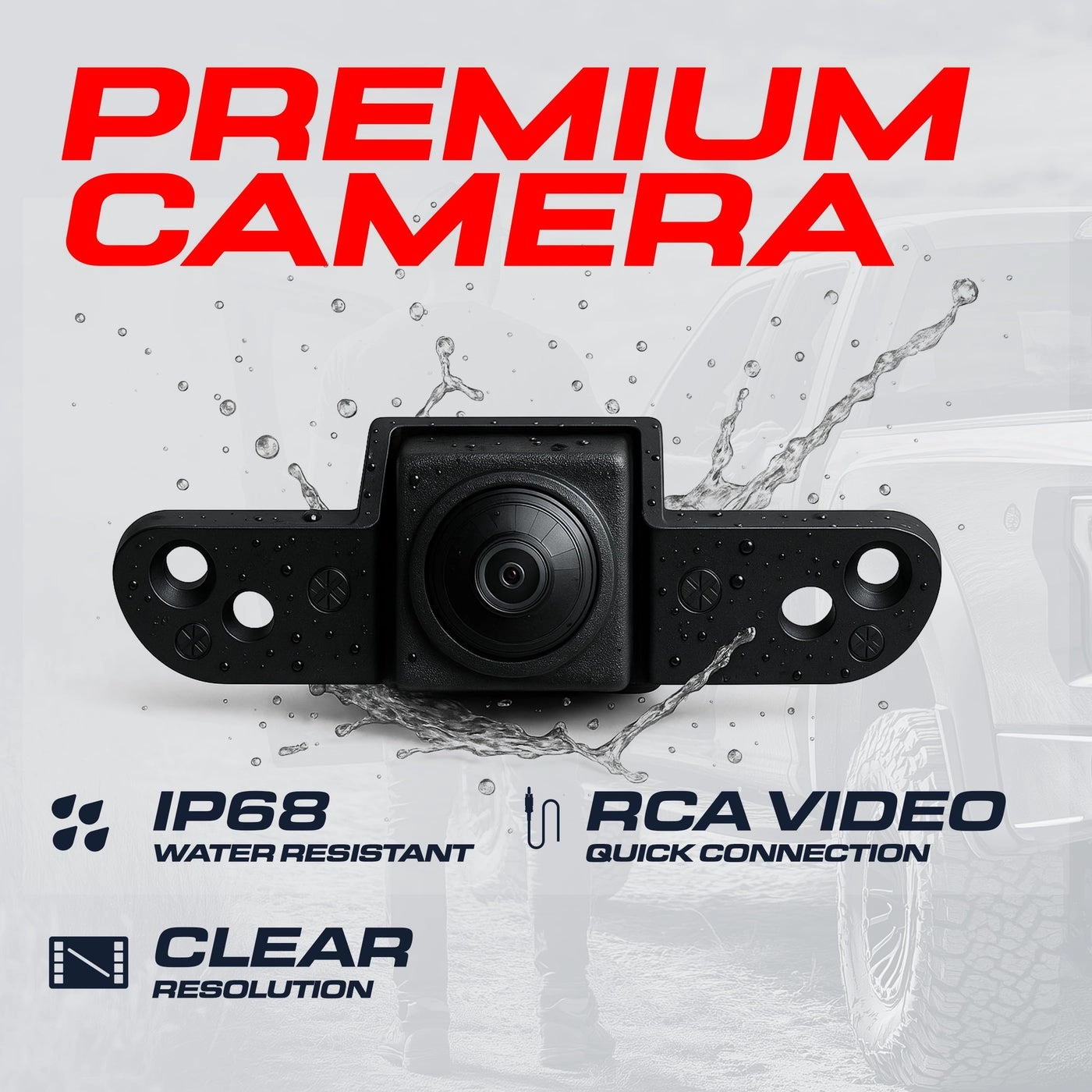

Camera Specs: Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic); Signal System : NTSC/PAL; Effective Pixel : NTSC: 728 x 582, PAL: 728 x 512; Minimum Illumination : .1 Lux Video Output : 1.1Vp-p 75 Ohm; Electronic Shutter : 1/50 to 1/100,000 seconds; Resolution : 600 TV line; Angle : 170 Degree; Waterproof Rate : IP68 Current Consumption : 120mA Max.; Power : DC 12V Operating Temperature : -20-+75 Celsius Degree (RH95% Max); Storage Temperature : -40-+85 Celsius Degree (RH95% Max); Cable Length : Video Cable: 8M
