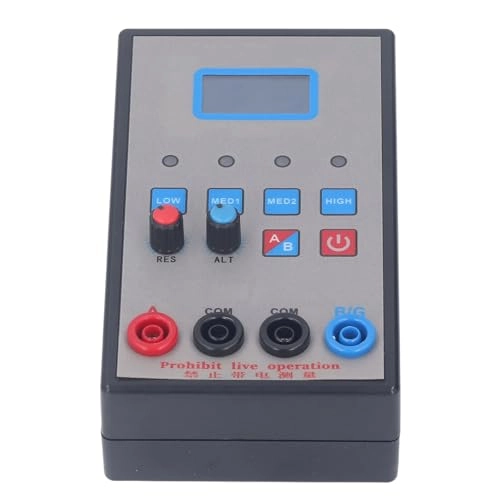

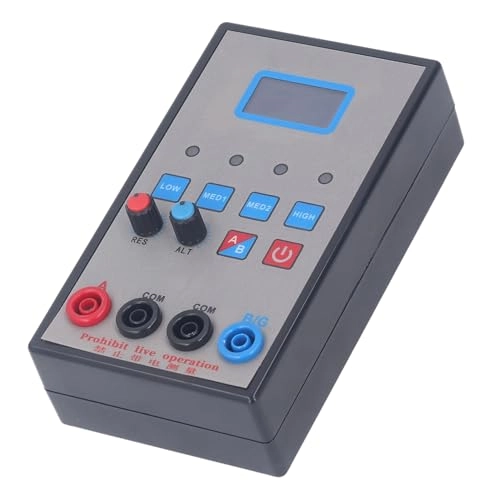

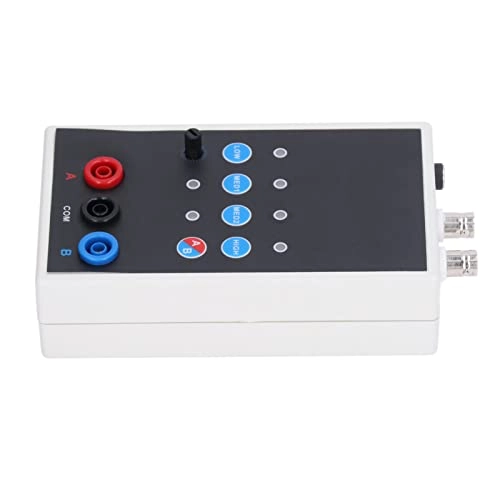

Marhynchus VI Curve Tester - 2 Channel 4 Gang 3000mAh

Technical dataification: Item Type: VI Curve Tester Material: ABS Display: 1.3 inch organic light emitting diode Battery: Rechargeable lithium battery 3000mAh x 1 [Comes with built-in battery] 4 internal adjustable: 56R, 470R, 1.5K, 20K 4 test frequencies: 50Hz, 300Hz, 2kHz, 13kHz Curve movement: support Scan function: Supported True dual channel: support Synchronized Display: Supported Program control: support List of packages: 1 x Tester 2 x BNC Cable 2 x Test Cables 1 x USB Cable Usage: VI and multimeter method types, but the multimeter voltage is lower, the instrument uses alternating current to excite the circuit node. Amplitude and frequency can be adjusted, the amplitude near the operating voltage can be used for excitation and the measured diagram is more real. By comparing you can find faulty nodes. Due to the current applied to the component, this does not affect or damage any component. ASA has many advantages and has been proven to be a fast and effective troubleshooting method.
