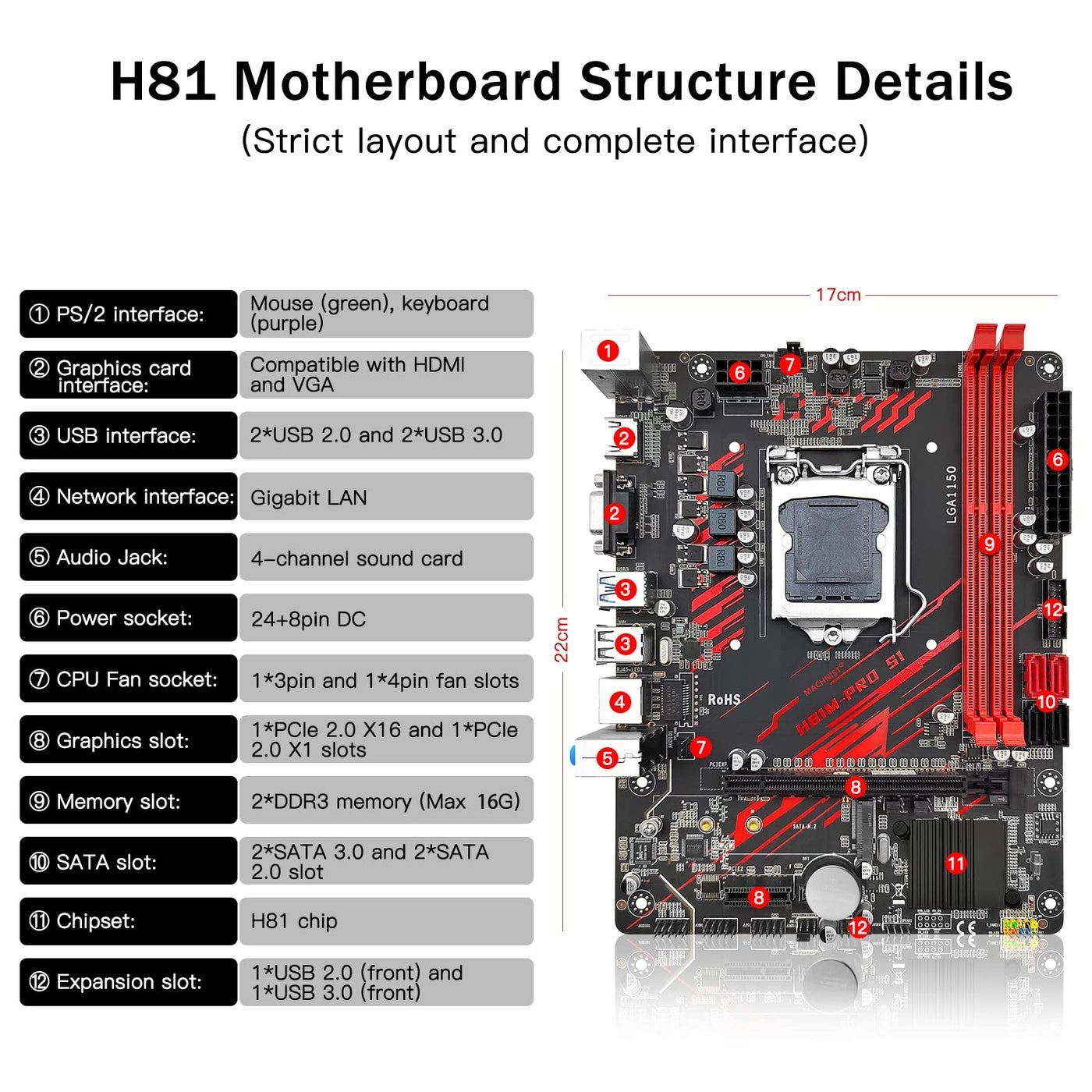

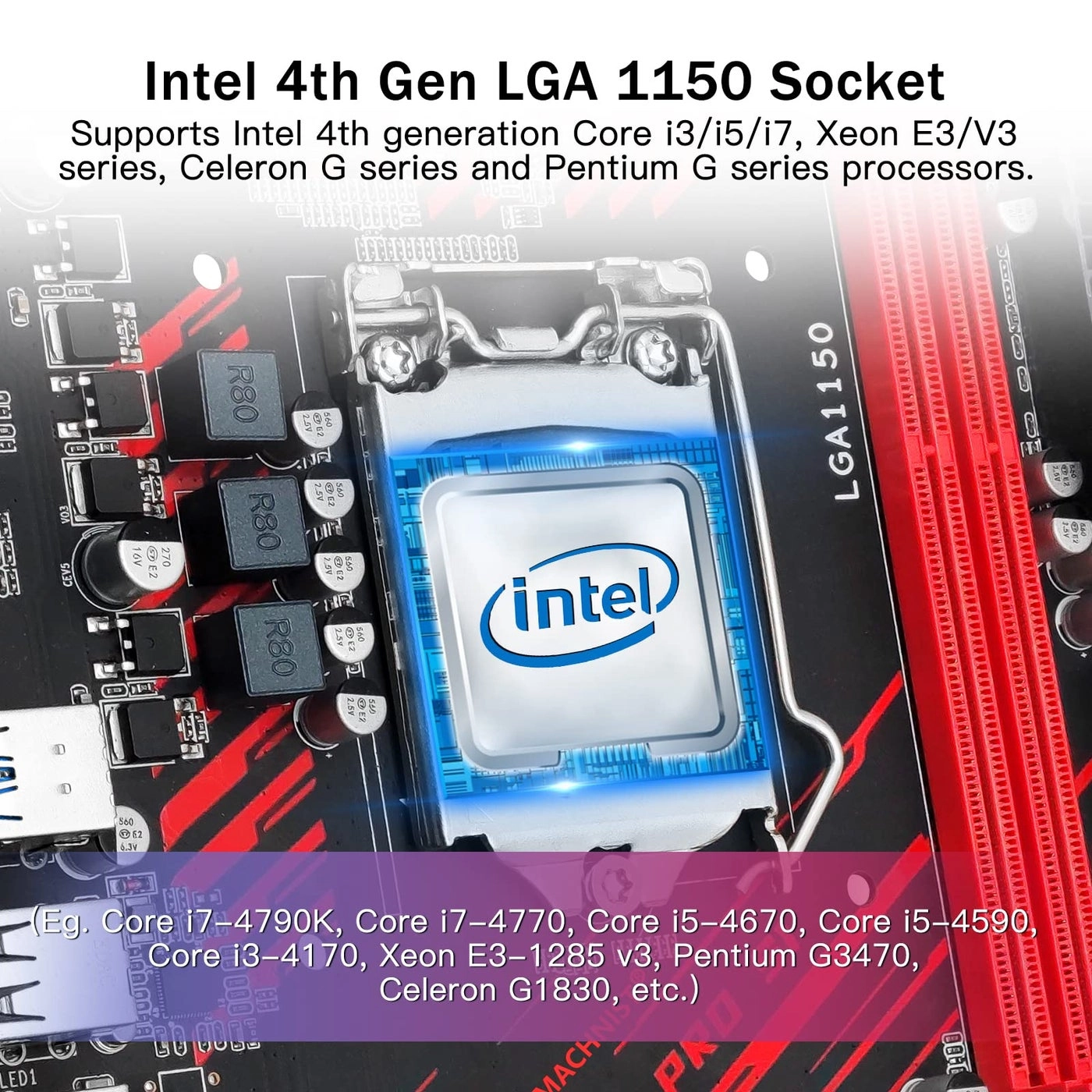

Intel LGA 1150 socket: The Micro ATX motherboard is powered by the H81 chipset and supports Intel 4th generation Core i3/i5/i7, Xeon E3/V3 series, Celeron G series and Pentium G series processors. (Eg. Core i7-4790K, Core i7-4770, Core i5-4670, Core i5-4590, Core i3-4170, Xeon E3-1285 v3, Pentium G3470, Celeron G1830, etc.) Dual-channel DDR3 memory slots: 2 DDR3 non-ECC desktop memory slots, unbuffered, support effective frequencies of 1280/1333/1600/1866MHz, and a maximum capacity of 16GB High performance interface: Support Gigabit Ethernet interface, compatible with VGA+HDMI dual output high-definition display interface. PCIe 2.0 protocol standard, X16 channel bandwidth can reach 8GB/s. NVME M.2 Slot, Realtek ALC662 audio chip, 4-channel sound card, brings you a different ultimate experience The package includes: 1*SATA cable, 1*I/O baffle, 1*motherboard. The CR2032 battery on the motherboard has been removed. It is not included in the package. Please purchase it yourself. And the user manual is not included in the package. You can download the manual file on the product details page. If you don't know where to download the driver, it is recommended to use the win 10 system Note: The SATA 3.0 interface and M.2 interface in this ddr3 motherboard are incompatible. If you need to use a SATA M.2 hard drive, then the two SATA 3.0 ports will not be available. If you want to use the SATA 3.0 interface, the M.2 interface will not be available. If you need to use the SATA 3.0 interface, you need to pull out the 4 black small parts on the right end of the M.2 slot and insert them into the right slot. If you need to use the M.2 slots, you don't need to move them Note: If you need the motherboard to enter the BIOS, please press the "Del" key continuously after pressing the startup key. Please do not wait until the startup LOGO screen appears on the computer screen before operating, because it is already too late Tip1: Before purchasing this computer motherboards, make sure you can install it yourself. After the motherboard is installed normally, if there is no display, no boot, no picture, no network card, no sound card, etc. It is recommended that customers restore factory settings, reset CMOS, or use an eraser to erase the metal pins on the memory, CPU, or graphics card Tip2: The CPUs of the Intel Xeon E3 V3 series are server CPUs, and most of them do not have integrated graphics. Generally, only the CPU models with the suffix "5" have integrated graphics. For example: E3-1245 v3, E3-1275 v3, E3-1285 v3, E3-1275L v3, E3-1225 v3 and other CPUs support integrated graphics. While Intel Core i3, i5 and i7 series processors almost all support integrated display, only the CPU model with the suffix "F" letter has no integrated display function, which is "ix-xxxxF"
