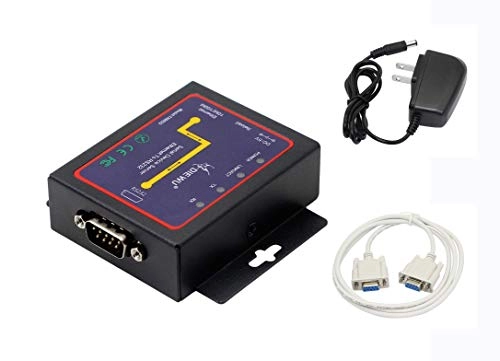

Lemeng RS232 to Ethernet Serial Device Server - RS232 Male 1 Port RJ45

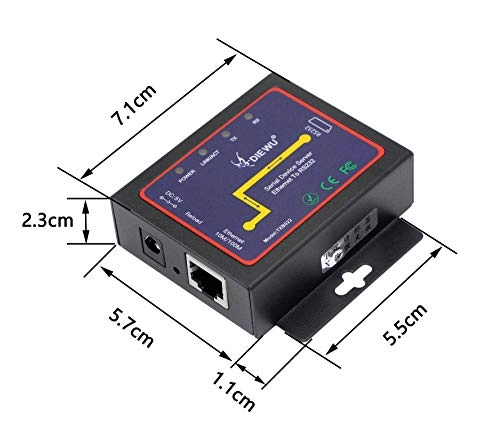

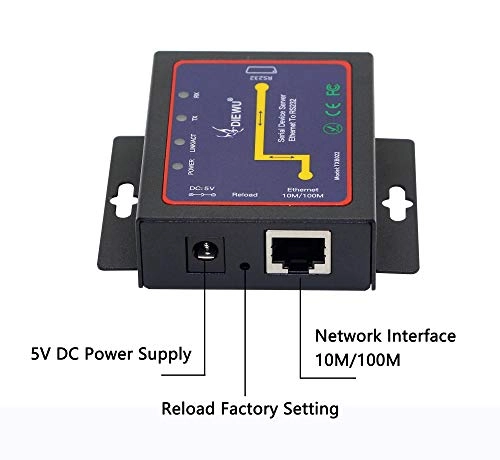

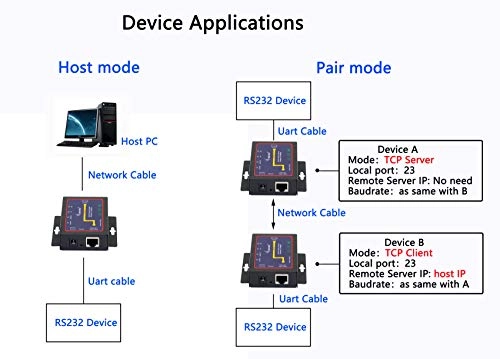

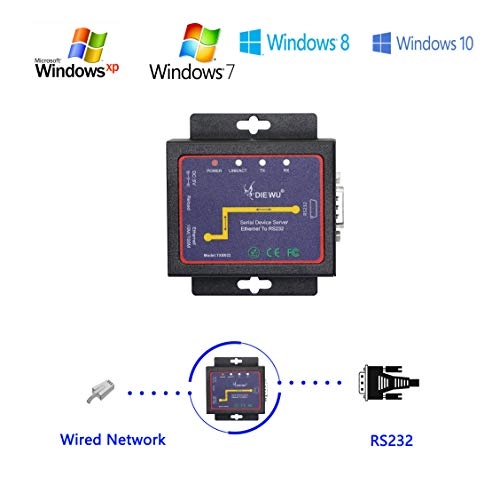

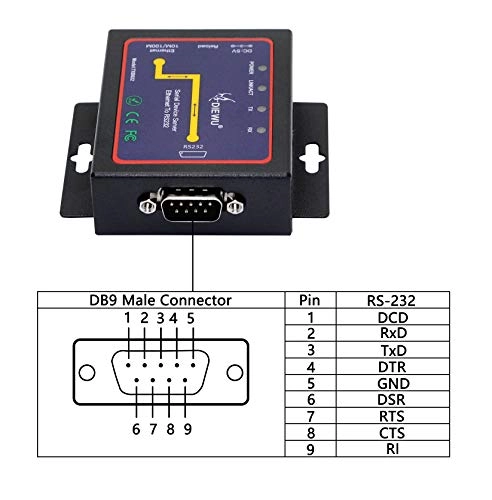

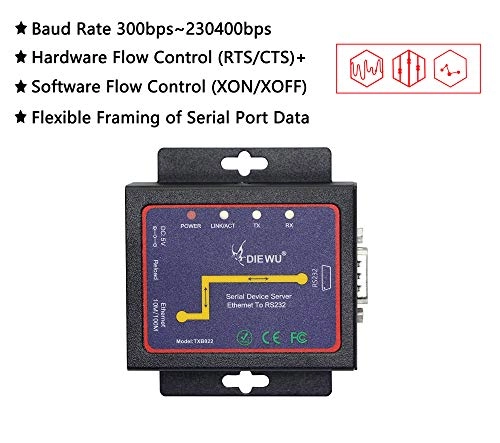

The rs232 to ethernet converter is designed for PC software that uses serial port mode and cannot communicate with networked devices.Receive the data of the specified virtual serial port, and then send the data out in the form of network data, and convert it back to serial data. It is internally integrated with TCP/IP protocol.User can apply it to device networking communication. Features:UART Interface:RS232 Male Network Interface:RJ45 port with 10/100Mbps Support Auto-MDI/MDIX Support Work Mode: TCP Server, TCP Client,VCOM Support virtual serial port(VCOM) Support Web Browser Settings Support Baud-rate 300bps~230400bps Support Reload function Support Modbus RTU Support Flow control CTS/RTS. Support IEEE 802.3, IEEE 802.3u, IEEE 802.3x Network transmission rate:10/100Mbps LED Indicator:DC 5V Power,Link/ACT,TX,RX, Power Consumption<1.8 W Operating Temperature -10-50°C. Storage Temperature: -20~70°C Humidity: 10%~90%, no condensation Size:7.1x5.7x2.3cm Support all Windows systems, such as XP/WIN7/WIN8/WIN10 Application:Industrial Data Transmission, Industrial Automation,Smart Home, Power Control, Environmental Monitoring, Power Monitoring, Self-Service Banking System, Telecom Machine Room Monitoring,etc. Package:1x Serial Device Server,1x db9 serial cable,1x DC 5V Adapter,1x User Manual
