Kalakus LS8011 - Night vision 520 TV lines

Dear customer, please check the size and appearance of the camera before placing an order to see if the size and appearance of your car number plate fits. As the same car model may have differences in different countries, please check the camera size and compare the installation of your car carefully to avoid errors.

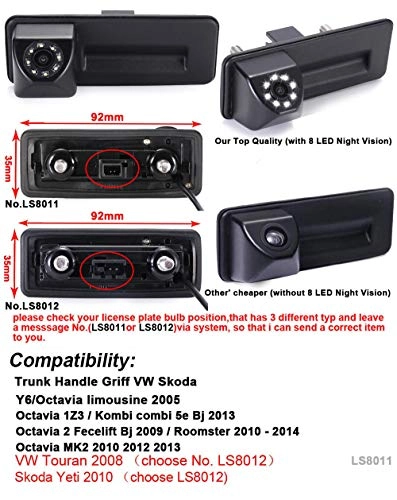

Replacement for Skoda Fabia 6Y 2002-2015 (choose LS8011).

Replacement for Audi A1 2012-2015 (choose LS8011).

Replacement for Golf 5 V Variant 0603 AL.E (choose LS8011).

Replacement for Skoda Superb Estate 2 2012 (choose LS8011).

Replacement for VW Touran 2008 (choose No. LS8012).

Replacement for Skoda Yeti 2010 (choose LS8012).

Product parameters:

1. TV system: NTSC (if you want PAL, please email us).

2. Resolution: 520 TV lines.

3. Lens angle: 170 degrees.

4. S/N ratio: more 48 dB (AGC-OFF).

5. Video colour: night vision colour (night version).

6. Video output: 1.0Vp-p, 75Ω.

7. Image device: 1/3 inch colour.

8. Sensing area: 5.78 x 4.19 mm.

9. Sync. System: internal

Voltage: DC 12 V + -1.

11. White balance: Auto

12. Waterproof: IP67.

Effective pixels: 628 x 586.

Electronic shutter: 1/60-1/10000 second.

Current consumption: ≤ 150 mA.

Current consumption: 90 mA max.

Temperature: -40°C to +60°C, RH95% max.

Minimum illumination: 0.3Lux/F1.2.

19. Operating temperature: -30°C to +50°C, RH95%.

20. Top quality 1/3 inch colour sharp LCD, other sellers are cheap 1/4 inch colour CMOS LCD.

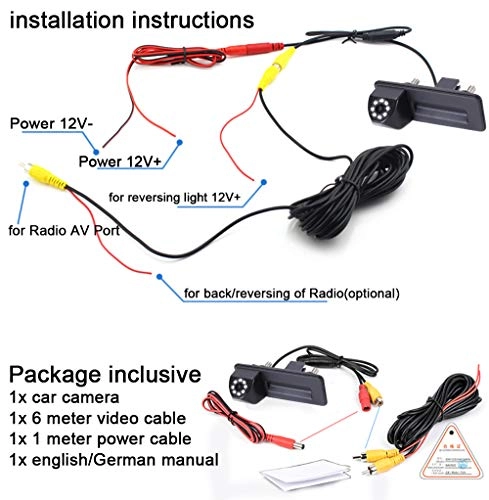

Installation diagram
