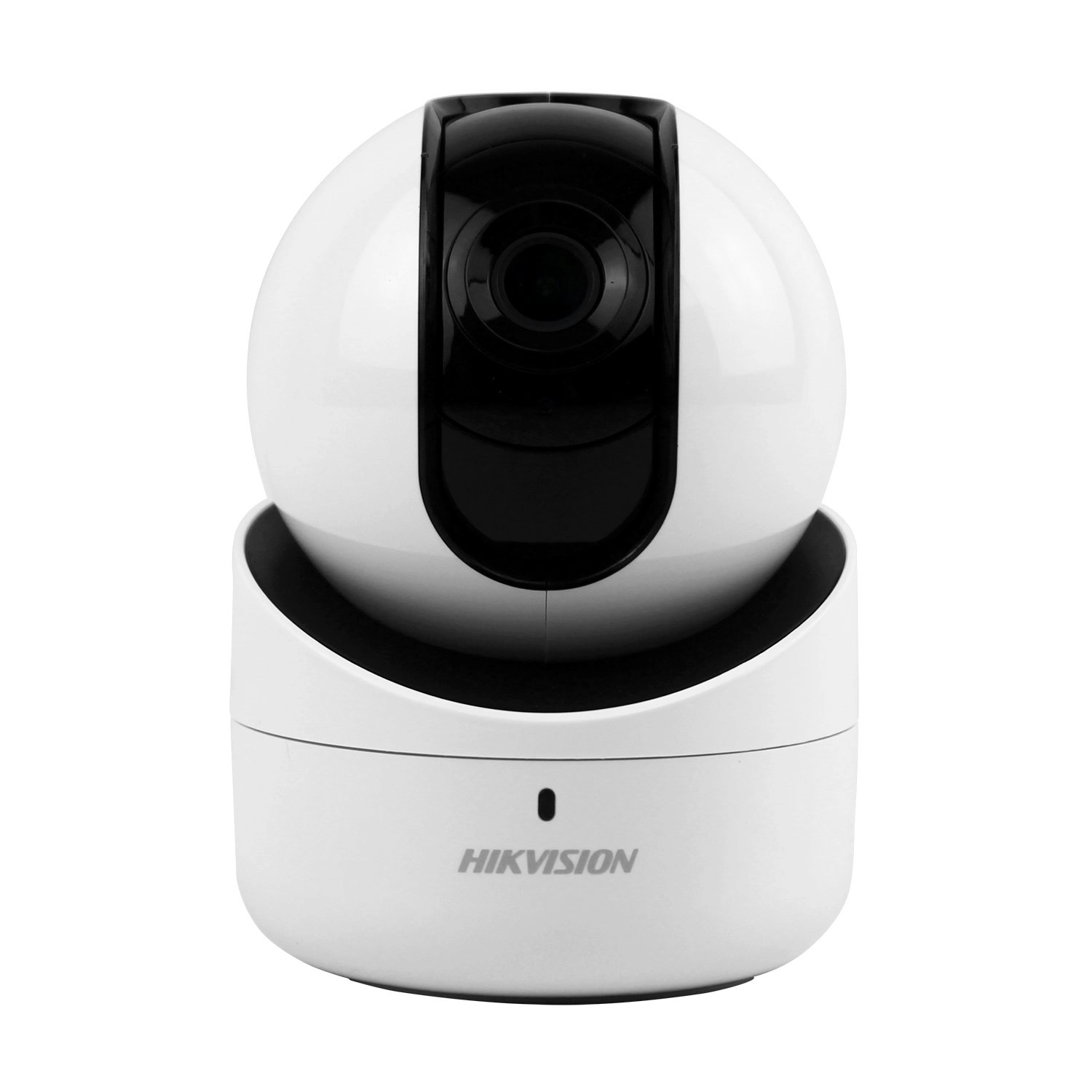

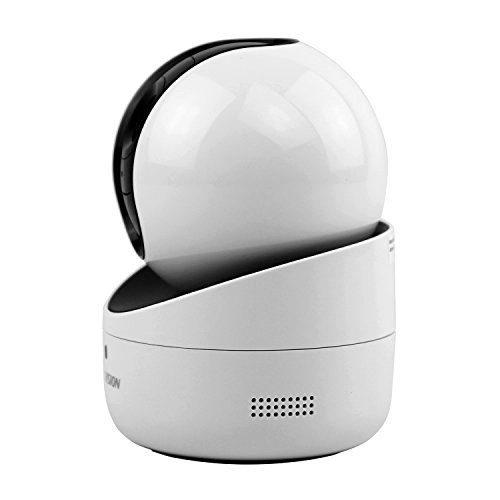

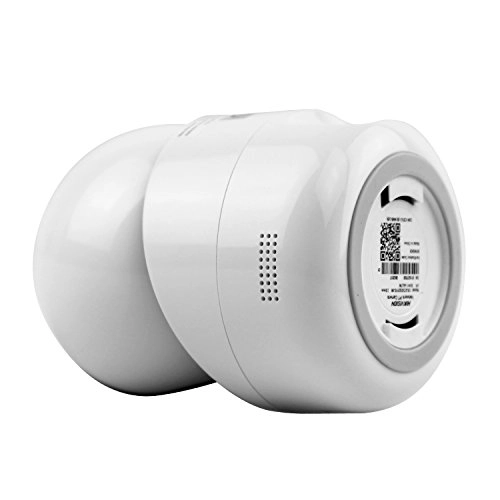

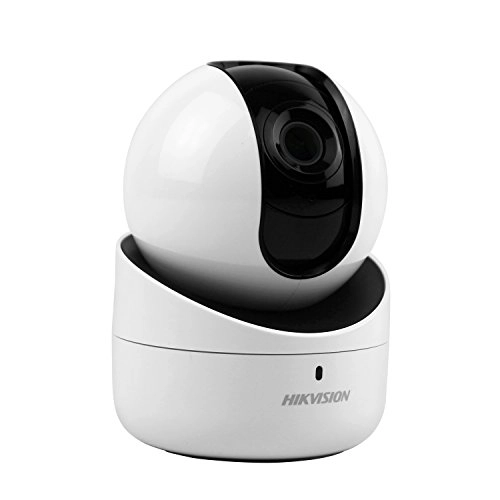

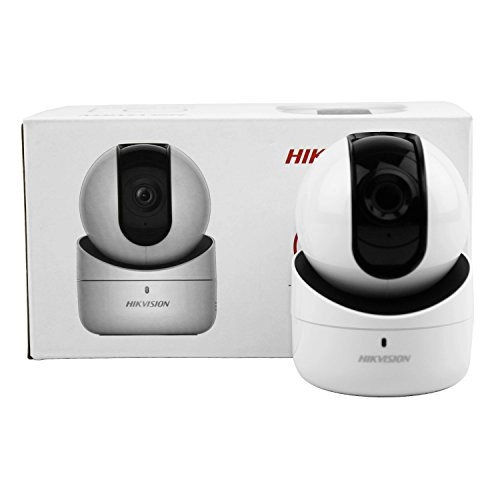

Hikvision DS-2CV2Q21FD-IW

Name: Hikvision DS-2CV2Q21FD-IW
Brand: Hikvision
SKU: 357242
Availability: InStock

Best offer

AED

225⁰⁰

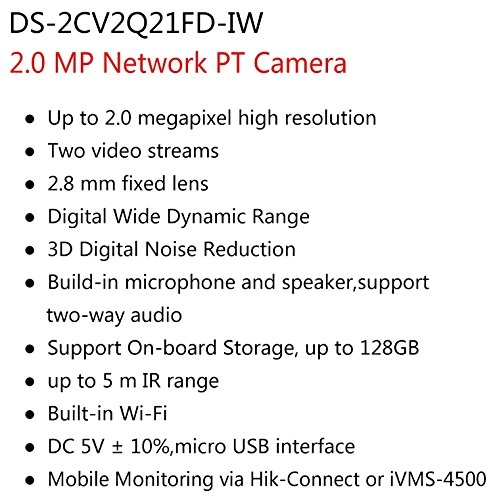

Key Features

Noise reduction technology: 3D noise reduction
Infrared (IR) cut-off filter: Yes
Digital watermark: Yes
Type: IP security camera
Active tampering alarm: Yes
Mirror: Yes
Frequency band: 2.4 - 2.4835 GHzGHz
DC output voltage: 5
Form factor: Spherical
Streaming method: Multicast
Cabling technology: 10/100Base-T(X)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Anti-flicker: Yes

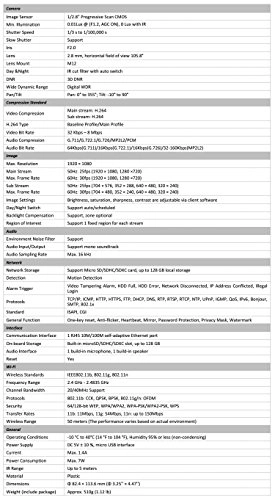

Specifications

Features

Number of sensors

Built-in microphone

✓

Audio formats supported

G.711, G.722.1, G.726, MP2L2

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

128 GB

Password protection

✓

Video motion detection

✓

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Frequency band

2.4 - 2.4835 GHz

Weight & dimensions

Weight

510 g

Height

113.60 mm

Diameter

82.40 mm

Power

Power consumption (max)

7 W

DC output current

1.40 A

Power source type

DC output voltage

Other features

Noise reduction

✓

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Design

Housing material

Plastic

Placement supported

Indoor/Outdoor

Reset button

✓

Mounting type

Ceiling/Wall

Form factor

Spherical

Packaging content

Included memory card size

32 GB

Network

Wi-Fi

✓

Networking standards

IEEE 802.1x

Supported network protocols

802.1x, Bonjour, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, QoS, RTCP, RTP, RTSP, SMTP, TCP/IP, UPnP

Streaming method

Multicast

Cabling technology

10/100Base-T(X)

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Ports & interfaces

Interface

RJ-45

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Technical details

Anti-flicker

✓

Audio

Built-in speaker(s)

✓

Lens system

Maximum aperture number

Fixed focal length

2.80 mm

Noise reduction technology

3D noise reduction

Video

Video compression formats

H.264

Frame rate

30 fps

Privacy masking

✓

Image quality adjustment

Brightness, Contrast, Saturation

Camera

Day/night mode

✓

Back Light Compensation (BLC)

✓

Field of view (FOV) angle

105 °

Camera shutter speed

1/3 - 1/100000 s

3D NR (Noise Reduction)

✓

Region of Interest (ROI) encoding

✓

Total megapixels

2 MP

Number of cameras

Sensor type

CMOS

Lens viewing angle, horizontal

105.8°

Progressive scan

✓

Full HD

✓

Wide Dynamic Range (WDR)

✓

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Digital Wide Dynamic Range (DWDR)

✓

Pan-tilt unit

Pan range

0 - 355 °

Image sensor

Maximum resolution

1920 x 1080 pixels

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

5 m

Product Details

Files

Product Brochure

mmo_49106948_1550139477_853_28026.pdf

PDF• 653 KB

User manual

mmo_49106948_1550139488_3565_25686.pdf

PDF• 2.6 MB
