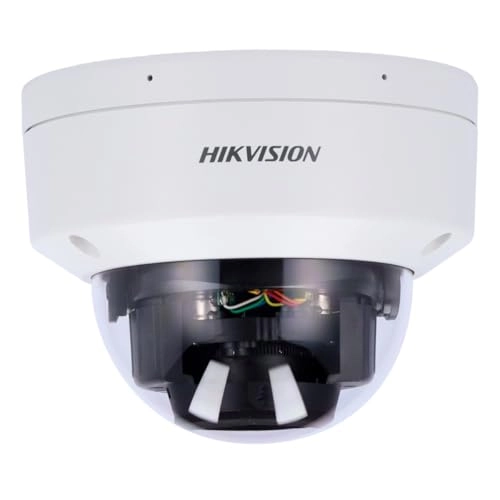

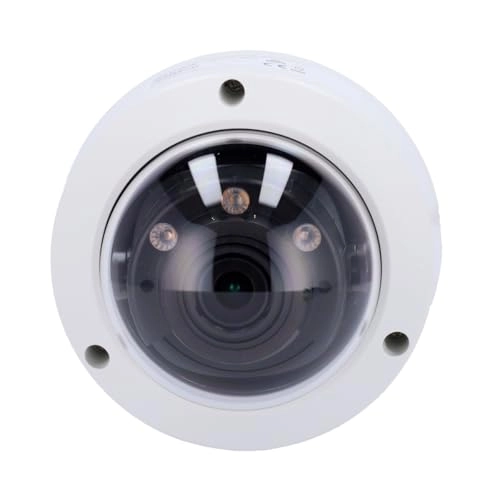

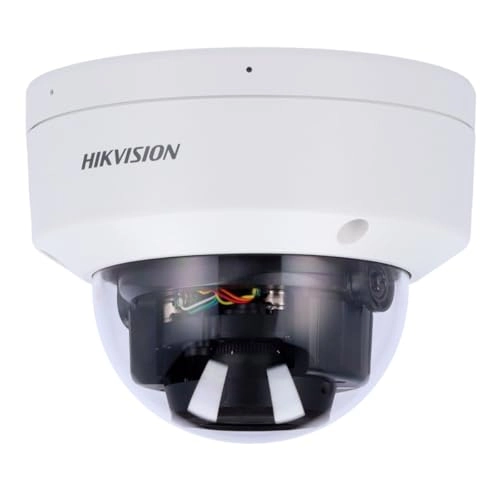

Hikvision DS-2CD2743G2-LIZS2U

Name: Hikvision DS-2CD2743G2-LIZS2U
Brand: Hikvision
SKU: 354795

Best offer

AED

689⁰⁰

Key Features

Camera tilt control: Yes
Detect distance: 63m
Observe distance: 25m
Recognize distance: 12m
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 57°°
Lens viewing angle, diagonal: 125°°
Power consumption (Power over Ethernet (PoE)): 12W
Identify distance: 6m
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Alert notification type: E-mail
Type: IP security camera

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Vandal proof, Water resistant, Waterproof

Voice codecs

G.711, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC, AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

512 GB

Password protection

✓

Video motion detection

✓

Security algorithms

TLS

Languages support

Multi

Number of languages

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Alert notification type

E-mail

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Sample rate

49 kHz

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520, 320 x 240, 3200 x 1800, 352 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA)

Recognize distance (wide)

12.80 m

Recognize distance (tele)

39.60 m

Detect distance

63 m

Packaging data

Package weight

830 g

Package height

141 mm

Package depth

150 mm

Package width

150 mm

Weight & dimensions

Weight

600 g

Height

97.60 mm

Diameter

122 mm

Length

252 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection

Power

Power consumption (max)

7.20 W

DC output current

0.60 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

12 W

Performance

Camera pan control

✓

Other features

I/O ports

line in, line out

Noise reduction

✓

Ergonomics

Angle of rotation

355 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC, SDHC, SDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK10

Housing material

Aluminium, Metal, Plastic

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling, Ceiling/Wall

Form factor

Dome

Built-in light

✓

Packaging content

Manual

✓

Network

Client interoperability

Hik-Central, Hik-Connect, iVMS-4200

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RCTP, RTCP, RTP, RTSP, SMTP, SNMP, SSL/TLS, TCP/IP, UDP, UPnP, UPnP?, WebSocket, WebSockets

Streaming method

Multicast

Cabling technology

10/100Base-T(X)

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Alarm input channels

Alarm output channels

Terminal block port

✓

Composite video out

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Sustainability compliance

✓

Certification

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, CE-EMC: EN 55032:2015+A1:2020, CE-LVD: EN 62368-1: 2014/A11: 2017, EN 50130-4:2011+A1:2014, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, IC: ICES-003: Issue 7, IK10: IEC 62262:2002, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, RCM: AS/NZS CISPR 32: 2015, Reach: Regulation (EC) No 1907/2006 IP67: IEC 60529-2013, WEEE: 2012/19/EU

Anti-flicker

✓

Compliance certificates

BIS, CB, CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Industry Canada (IC), KC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UL, WEEE

Audio

Automatic gain control

✓

Lens system

Lens mount interface

M12

Minimum aperture number

1.20

Maximum aperture number

1.60

Iris

✓

Number of lenses

Fixed focal length

2.80 mm

Detect distance (wide)

64 m

Detect distance (tele)

198 m

Observe distance (wide)

25.40 m

Observe distance (tele)

78.60 m

Identify distance (wide)

6.40 m

Identify distance (tele)

19.80 m

Identify distance

6 m

Noise reduction technology

3D noise reduction

Recognize distance

12 m

Observe distance

25 m

Video

Video compression formats

H.264, H.265, M-JPEG

Video formats supported

H.264, H.265, M-JPEG

Frame rate

30 fps

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Video recording

✓

Privacy masking

✓

Supported video modes

1080p, 1440p, 360p, 480p, 720p

Security

IP address filtering

✓

Privacy protection

✓

Audit log

✓

Heartbeat

✓

Network access storage (NAS)

✓

Password reset via email

✓

Pixel counter

✓

Flash log

✓

Automatic Network Replenishment (ANR)

✓

Digest authentication

✓

HTTPS encryption

✓

Focusing

Focus

Motorized

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Focal length range

2.8 - 12 mm

Bit rate

32 Kbps - 8 Mbps

Analog signal format system

PAL

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

104°

Progressive scan

✓

Full HD

✓

Wide Dynamic Range (WDR)

✓

Auto focus

✓

Intelligent Video Surveillance (IVS) system features

Crossing line, Face detection, Intrusion

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

125°

Lens viewing angle, vertical

57°

Camera tilt control

✓

Amplifier

Sample rates

8 - 48 kHz

Pan-tilt unit

Tilt angle range

0 - 75 °

Pan range

0 - 355 °

Image sensor

Maximum resolution

2688 x 1520 pixels

Dynamic range

120 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

IR/White

Night vision distance

30 m

Infra-red wavelength

850 nm

Product Details

Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond. By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios. Pro Series (All) Get the smart features and imaging performance you need at a great value
