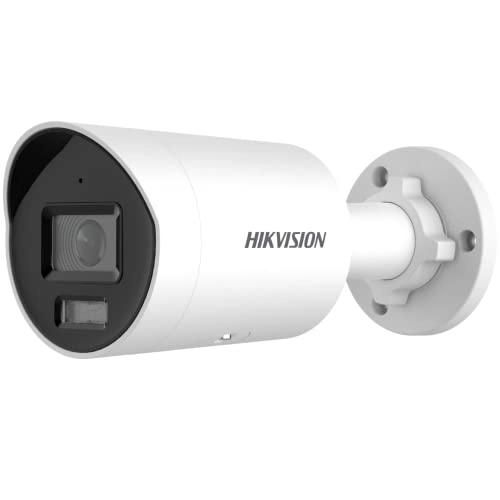

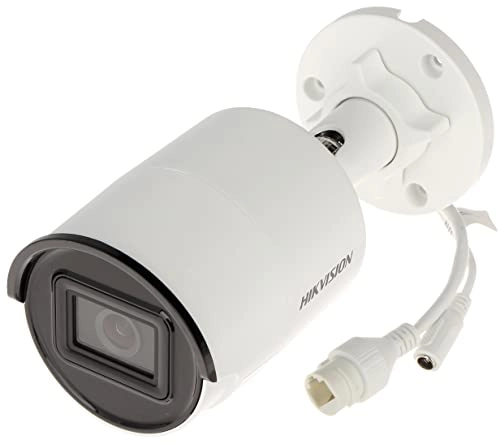

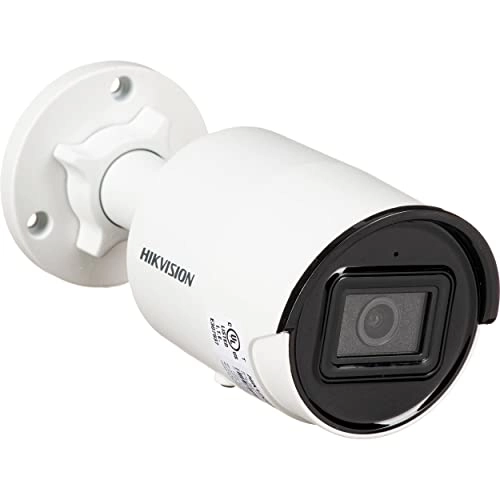

Hikvision DS-2CD2023G2-IU

Name: Hikvision DS-2CD2023G2-IU
Brand: Hikvision
SKU: 356452
Availability: InStock

Best offer

AED

415⁰⁰

Key Features

Camera tilt control: Yes
Detect distance: 38.6m
Observe distance: 15.3m
Recognize distance: 7.7m
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 50°°
Lens viewing angle, diagonal: 110°°
Power consumption (Power over Ethernet (PoE)): 7.5W
Identify distance: 3.9m
Infrared (IR) cut-off filter: Yes
User access level: Administrator
Digital watermark: Yes
Alert notification type: E-mail
Type: IP security camera

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Water resistant

Voice codecs

AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Weatherproof

✓

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC-LC

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

128 GB

Password protection

✓

Video motion detection

✓

Security algorithms

HTTPS, TLS, WPA-PSK, WPA2-PSK

Languages support

Multi

Number of languages

Connectivity technology

Wired, Wired & Wireless

Product colour

White

Video streaming

✓

Digital watermark

✓

Alert notification type

E-mail

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Supported graphics resolutions

1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520, 352 x 240, 352 x 288, 512 x 288, 640 x 360, 640 x 480 (VGA), 768 x 432

Recognize distance (wide)

12 m

Detect distance

38.60 m

Packaging data

Package weight

700 g

Package height

99 mm

Package depth

118 mm

Package width

216 mm

Weight & dimensions

Weight

420 g

Height

102.90 mm

Depth

32.60 mm

Width

65.20 mm

Diameter

70 mm

Length

155 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power

Power consumption (max)

6 W

Power over Ethernet (PoE)

✓

DC output current

0.50 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

7.50 W

Performance

Camera pan control

✓

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

Housing material

Metal

Placement supported

Indoor, Indoor/Outdoor

Reset button

✓

Mounting type

Ceiling/Wall, Desk

Form factor

Bullet

Network

Client interoperability

Hik-Central, Hik-Connect, iVMS-4200

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3af

Supported network protocols

802.1X, ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, SSL/TLS, TCP/IP, UDP, UPnP, UPnP?, UPnP™

Cabling technology

10/100Base-T(X)

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Channel bandwidth

20 MHz

Number of simultaneous live view channels

4 channels

User access level

Administrator

Ports & interfaces

Interface

RJ-45

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Certification

CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013), CE-EMC (EN 55032: 2015, CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013), EN 50130-4: 2011 +A1: 2014), EN 61000-3-2: 2014, EN 61000-3-3: 2013, FCC (47 CFR Part 15, KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1), LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU), RCM (AS/NZS CISPR 32: 2015), Reach (Regulation (EC) No 1907/2006), Subpart B), WEEE (2012/19/EU)

Removable IR-cut filter

✓

Anti-flicker

✓

Compliance certificates

CE, Industry Canada (IC), Low Voltage Directive (LVD), REACH, RoHS, WEEE

Audio

Automatic gain control

✓

Built-in speaker(s)

✓

Lens system

Lens mount interface

M12

Minimum aperture number

1.20

Maximum aperture number

Number of lenses

Fixed focal length

2.80 mm

Detect distance (wide)

60 m

Observe distance (wide)

23.80 m

Identify distance (wide)

6 m

Identify distance

3.90 m

Noise reduction technology

3D noise reduction

Recognize distance

7.70 m

Observe distance

15.30 m

Video

Video compression formats

H.264, H.265, M-JPEG

Frame rate

30 fps

Smart IR

✓

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

✓

Security

IP address filtering

✓

Privacy protection

✓

Audit log

✓

Heartbeat

✓

Digest authentication

✓

HTTPS encryption

✓

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Camera shutter speed

1/3 - 1/100000 s

Maximum operating distance

50 m

3D NR (Noise Reduction)

✓

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

2 MP

Number of cameras

Bit rate

32 Kbps - 8 Mbps

Analog signal format system

PAL

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

103°

Progressive scan

✓

Full HD

✓

Wide Dynamic Range (WDR)

✓

Intelligent Video Surveillance (IVS) system features

Face detection, Scene change

Highlight Compensation (HLC)

✓

Digital Wide Dynamic Range (DWDR)

✓

Lens viewing angle, diagonal

110°

Lens viewing angle, vertical

50°

Camera tilt control

✓

Amplifier

Sample rates

8 - 16 kHz

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

1920 x 1080 pixels

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

30 m

Infra-red wavelength

850 nm

Product Details

Dive into the cable-free frontier Tired of being restricted by wires? Whether you’re out in the outdoors, at a busy construction site, or in a place that’s quickly set up for a short time, dealing with wires is such a hassle. Here, the Cable-Free Series of products is like a game-changer for video security. These brand-new products break free from the old ways and bring in a new era where you don’t have to worry about cables. The EasyLink Wi-Fi Kit guarantees secure data storage and seamless device linkage, giving users peace of mind in different scenarios. Unlike traditional wiring that is time-consuming and messy, the EasyLink Power Line Communication (PLC) Kit uses existing electrical wiring as a communication medium, creating stable, wall-penetrating connections. The Always On Video (AOV) Solar Camera enables continuous recording with low power consumption, achieving full-time recording at low cost. With 4G cameras, no wires, no worry, perfectly suitable for outdoor locations. No cable, just be free!

Deep learning algorithm

The magic behind it all As its name implies, Hikvision AcuSense Technology provides accurate sensing in security hardware. Empowered by deep learning algorithms, AcuSense technology distinguishes people and vehicles from other moving targets.

Human and vehicle intrusion

Spotlights the events that matter The most common concerns in perimeter protection are trespassing and vehicle break-ins. AcuSense helps you to focus on these events in two ways: alarm will only trigger when the preset intrusion type takes place, and related videos are sorted by categories for easier search.

Accurate alarm for human and vehicle

You can focus on alarms triggered by humans and vehicles while false alarms triggered by small animals or other irrelevant objects are vastly reduced. Now you can enjoy this intelligent function with VCA or motion detection.

Visual and auditory warning

On-site response and deterrence methods using visual and customizable auditory warnings to add another layer of protection. Two-way audio function is now also available.

Search targets quickly by type

Video clips are sorted by human and vehicle categories, and object classification vastly improves search efficiency.

Files

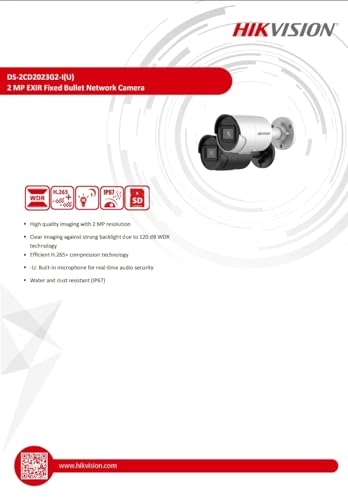

Product Brochure

mmo_113432446_1755676638_0967_157853.pdf

PDF• 1 MB

Quick Start Guide

mmo_113432446_1755676639_1915_157853.pdf

PDF• 21.6 MB

User manual

mmo_113432446_1755676639_2211_157853.pdf

PDF• 52.5 MB

Images

Videos

AcuSense products for Warehouses

MP4• 5.3 MB

AcuSense Products for Monitoring Centers

MP4• 4.1 MB

AcuSense Products for Restricted Areas

MP4• 7.5 MB

AcuSense Products for Residences

MP4• 8 MB

Turbo HD X security system, from responsive to active

MP4• 21.4 MB
