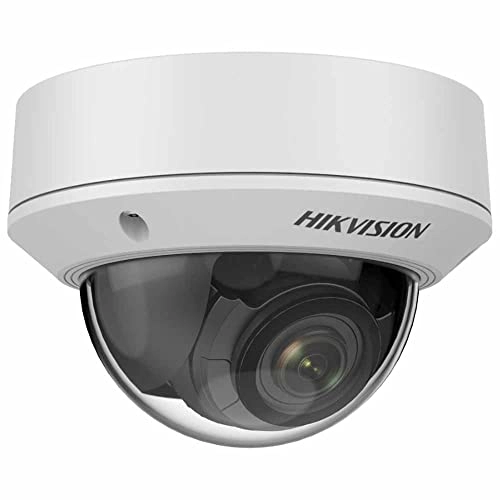

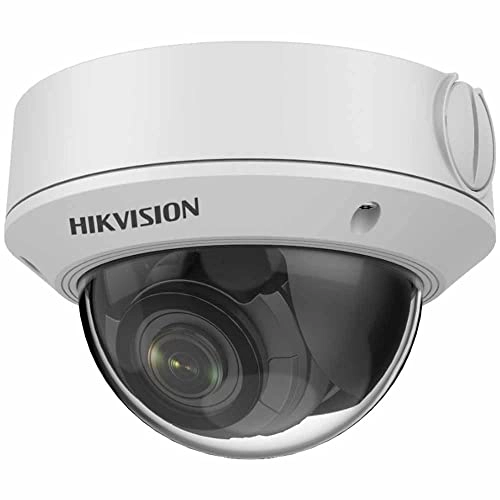

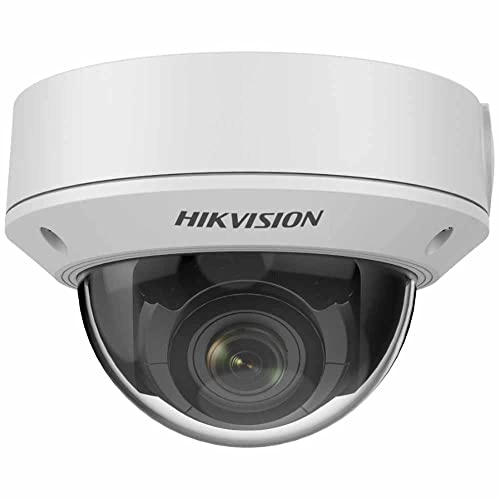

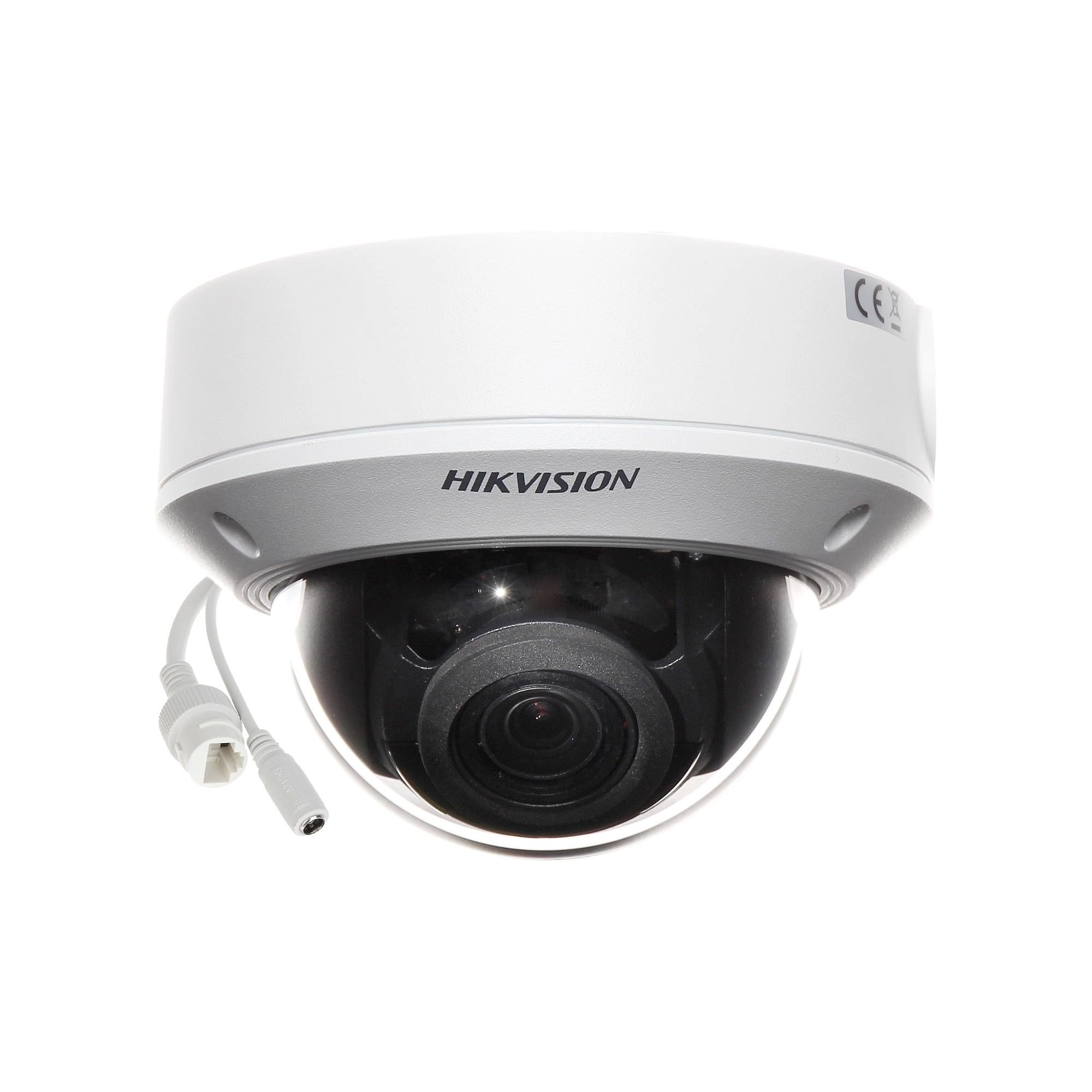

Hikvision DS-2CD1743G0-IZ

Name: Hikvision DS-2CD1743G0-IZ
Brand: Hikvision
SKU: 356688

Best offer

AED

285⁰⁰

Key Features

Camera tilt control: Yes
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 51°°
Lens viewing angle, diagonal: 123°°
Power consumption (Power over Ethernet (PoE)): 12W
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Type: IP security camera
Active tampering alarm: Yes
Mirror: Yes
Sample rate: 48kHz
Supported graphics resolutions: 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 320 x 240, 640 x 360, 640 x 480 (VGA)
Recognize distance (wide): 12.8m

Specifications

Features

Protection features

Dust resistant, Vandal proof, Water resistant

Voice codecs

G.711, G.722.1, G.726, MP2L2

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

128 GB

Password protection

✓

Video motion detection

✓

Number of languages

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Sample rate

48 kHz

Supported graphics resolutions

1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 320 x 240, 640 x 360, 640 x 480 (VGA)

Recognize distance (wide)

12.80 m

Recognize distance (tele)

39.60 m

Packaging data

Package weight

1200 g

Package height

154 mm

Package depth

140 mm

Package width

140 mm

Weight & dimensions

Weight

820 g

Height

99.90 mm

Diameter

141 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection

Power

Power consumption (max)

10 W

DC output current

0.80 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

12 W

Performance

Camera pan control

✓

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK10

Housing material

Metal, Plastic

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling, Ceiling/Wall

Form factor

Dome

Built-in light

✓

Packaging content

Manual

✓

Network

Client interoperability

Hik-Connect, iVMS-4200

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3af

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, QoS, RCTP, RTCP, RTP, RTSP, SMTP, SSL/TLS, TCP/IP, UDP, UPnP, UPnP™

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Alarm input channels

Alarm output channels

Terminal block port

✓

Composite video out

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Certification

2016), B), BIS (IS 13252(1):2010+A1:2013+A2:2015), CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, CE-EMC (EN 55032: 2015, CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 50130-4: 2011 +A1: 2014), EN 61000-3-2: 2014, EN 61000-3-3: 2013, FCC SDoC (47 CFR 15, IC VoC (ICES-003: 6, IEC 62368-1:2014), KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1), RCM (AS/NZS CISPR 32: 2015)

Anti-flicker

✓

Compliance certificates

BIS, CB, CE, Electromagnetic Compatibility (EMC), Industry Canada (IC), Low Voltage Directive (LVD), RCM, REACH, RoHS, UL, WEEE

Lens system

Maximum aperture number

1.60

Number of lenses

Detect distance (wide)

64 m

Detect distance (tele)

198 m

Observe distance (wide)

25.40 m

Observe distance (tele)

78.60 m

Identify distance (wide)

6.40 m

Identify distance (tele)

19.80 m

Noise reduction technology

3D noise reduction

Video

Video compression formats

H.264, H.265, M-JPEG

Video formats supported

H.264, H.265

Frame rate

30 fps

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Video recording

✓

Privacy masking

✓

Supported video modes

1080p, 1440p, 360p, 480p, 720p

Security

IP address filtering

✓

Privacy protection

✓

Audit log

✓

Heartbeat

✓

Password reset via email

✓

Digest authentication

✓

Focusing

Focus

Motorized

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Focal length range

2.7 - 13.5 mm

Bit rate

32 Kbps - 8 Mbps

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

98°

Progressive scan

✓

Wide Dynamic Range (WDR)

✓

Auto focus

✓

Intelligent Video Surveillance (IVS) system features

Face detection

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

123°

Lens viewing angle, vertical

51°

Camera tilt control

✓

Amplifier

Sample rates

8 - 16 kHz

Pan-tilt unit

Tilt angle range

0 - 70 °

Pan range

0 - 355 °

Image sensor

Maximum resolution

2560 x 1440 pixels

Dynamic range

120 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

50 m

Infra-red wavelength

850 nm

Product Details

Designed to meet the SMB users’ primary security needs and beyond, Hikvision’s Value Series Network Cameras provide reliable protection and smart functions at fairly reasonable prices. The cameras feature Hikvision’s ColorVu low-light-imaging technology and support Motion Detection 2.0 that automatically tells humans and vehicles from other moving objects.
