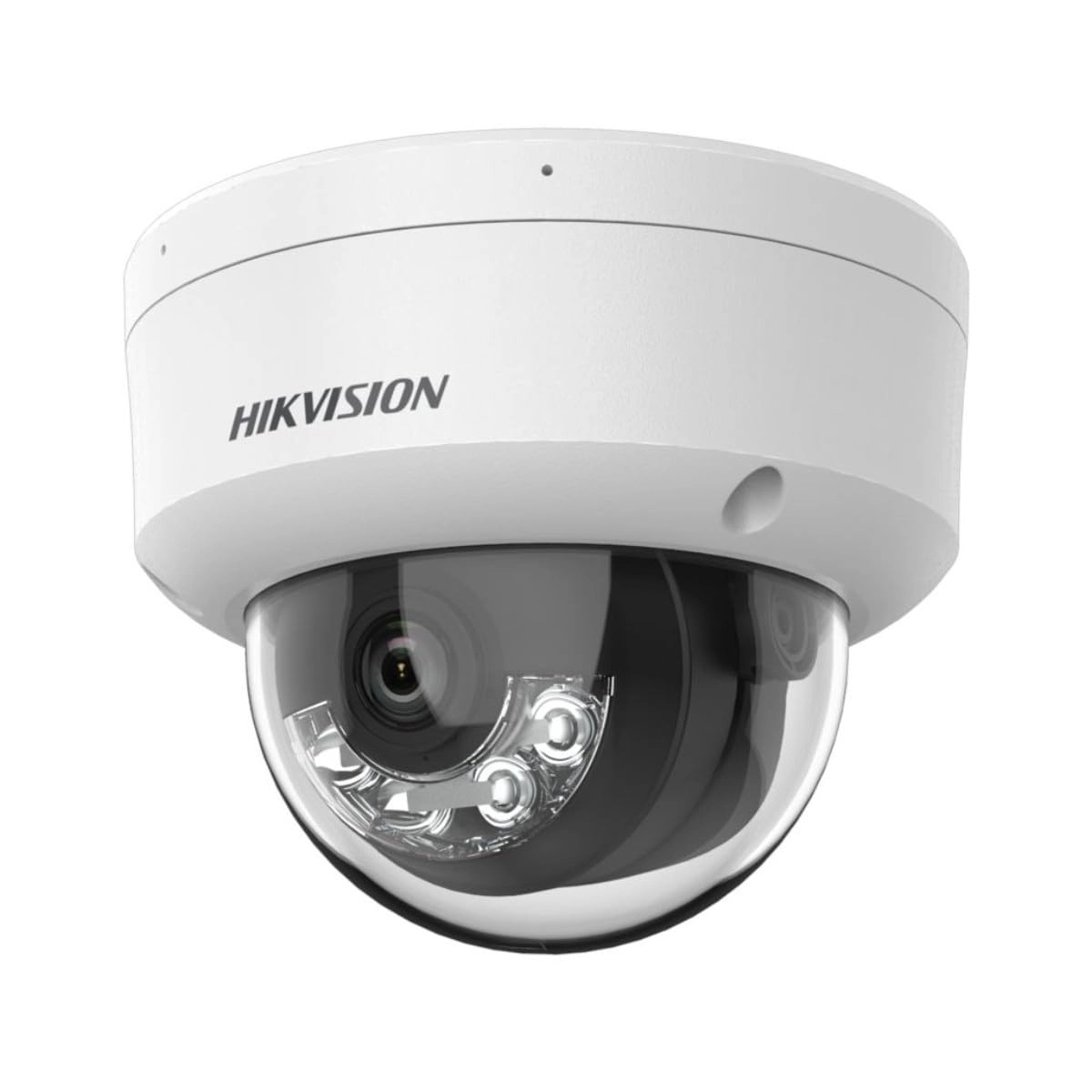

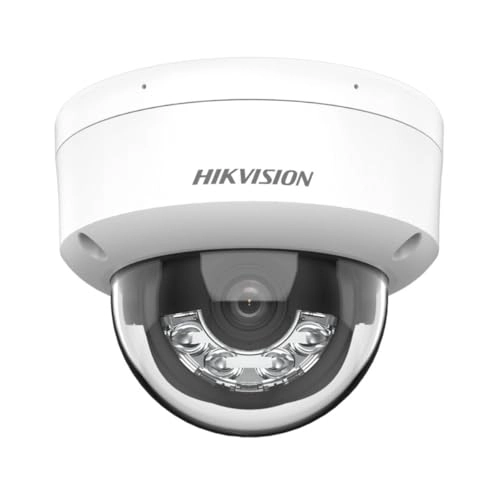

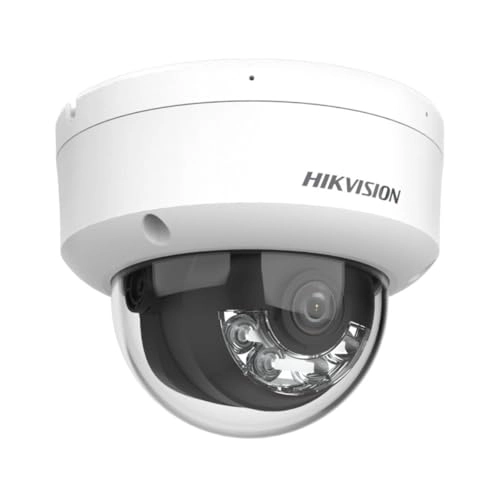

Hikvision DS-2CD1163G2-LIU

CAMERA • Image Sensor1/2.4" Progressive Scan CMOS • Max. Resolution3200 × 1800 • Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR • Shutter Time1/3 s to 1/100,000 s • Day & Night IR cut filter • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Lens • Lens Type Fixed focal lens, 2.8 and 4 mm optional • Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° • Lens MountM12 • Iris Type Fixed • ApertureF1.6 DORI • DORI 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m Illuminator • Supplement Light Type IR, White Light • Supplement Light Range Up to 30 m • Smart Supplement Light Yes • IR Wavelength850 nm Video • Main Stream 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) • Sub-Stream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG • Video Bit Rate32 Kbps to 16 Mbps • H.264 Type Baseline Profile, Main Profile, High Profile • H.265 Type Main Profile • Bit Rate Control CBR, VBR • Region of Interest (ROI)1 fixed region for main stream • Scalable Video Coding (SVC)H.264 and H.265 encoding Audio • Audio Type Mono sound • Environment Noise Filtering Yes • Audio Sampling Rate8 kHz/16 kHz • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Network • Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) • Simultaneous Live View Up to 6 channels • API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI, SDK, Hik-Connect • Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP • User/Host Up to 32 users 3 user levels: administrator, operator, and user • ClientiVMS-4200, Hik-Connect • Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ • Image • Wide Dynamic Range (WDR)120 dB • SNR≥ 52 dB • Day/Night Switch Day, Night, Auto, Schedule • Image Enhancement BLC, HLC,3D DNR • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser • Privacy Mask4 programmable polygon privacy masks • Interface • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port • On-Board Storage-F: Built-in memory card slot, support microSD/micro SDHC/micro SDXC card, up to 512 GB • Built-in Microphone Yes • Reset Key-F: Yes • Event • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception • Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture • General • Power 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W • Material Metal & Plastic • DimensionØ121.4 mm × 97.6 mm (Ø4.78" × 3.84") • Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") • Weight Approx. 550 g (1.2 lb.) • With Package Weight Approx. 800 g (1.8 lb.) • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Language English, Ukrainian • General Function Heartbeat, anti-banding, mirror, password protection, password reset via email • Approval • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 • Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 • Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 • Protection IP67: IEC 60529-2013, IK08: IEC 62262:2002
