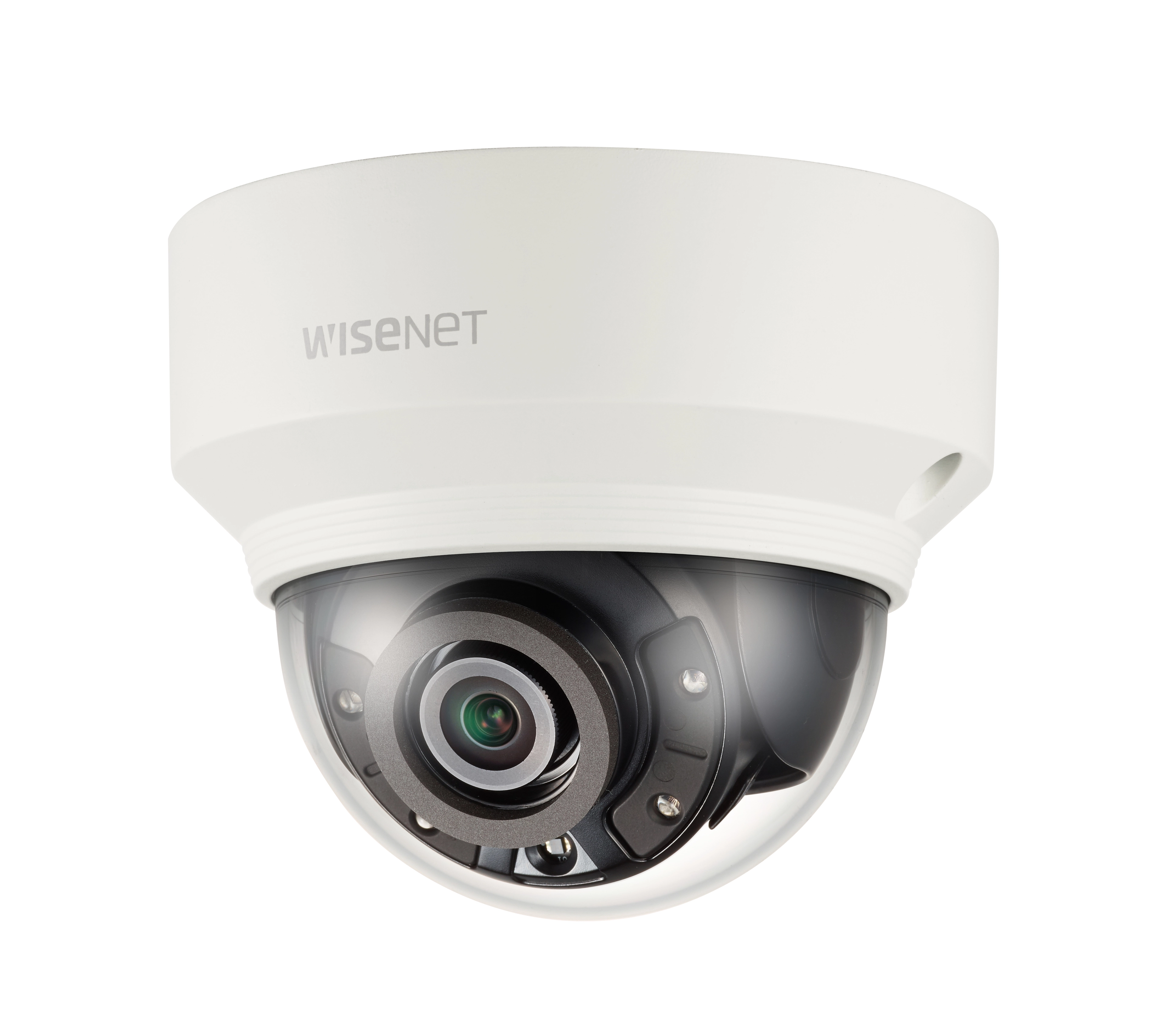

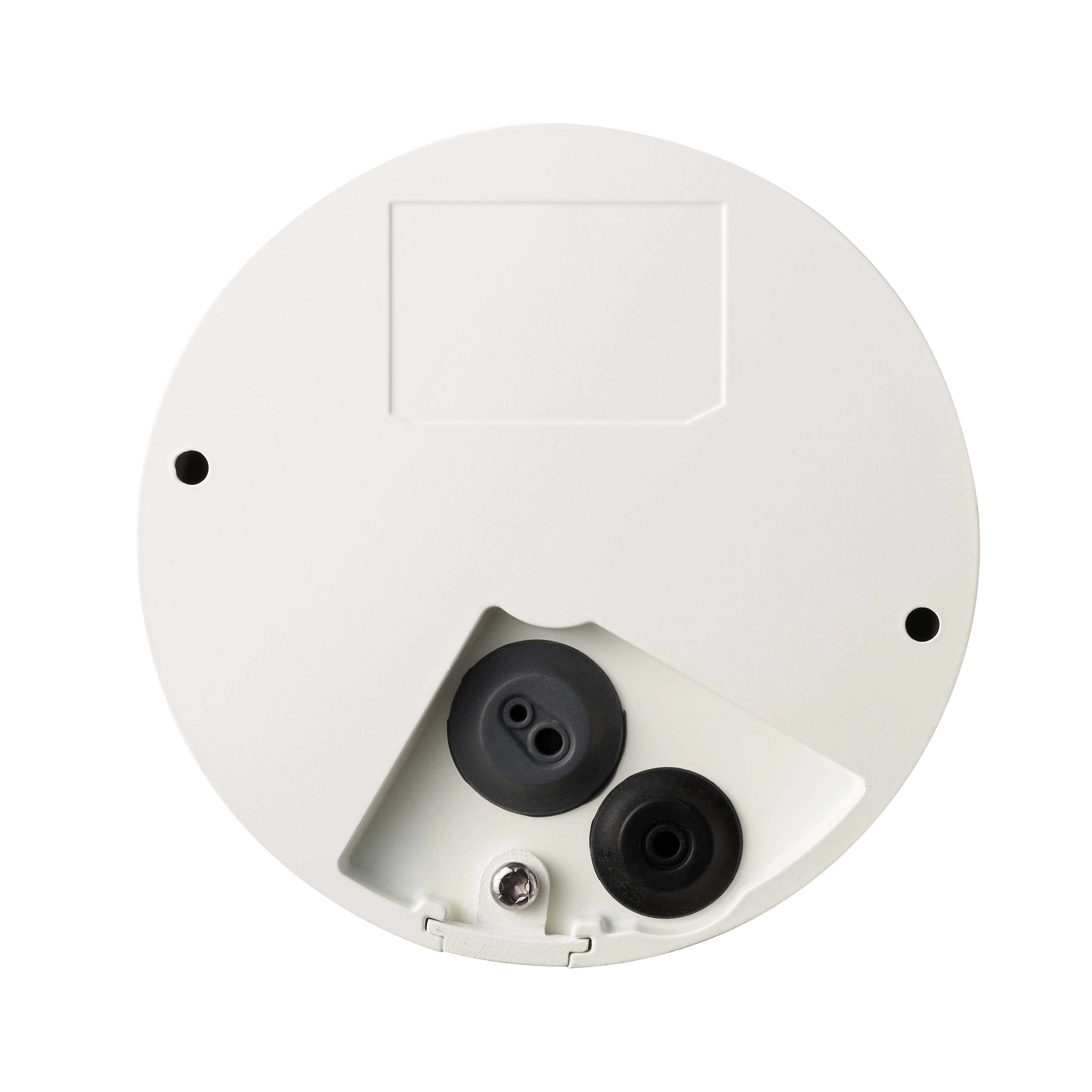

Hanwha QND-8020R

Name: Hanwha QND-8020R
Brand: Hanwha
SKU: 842941
Availability: InStock

Best offer

AED

2 248³⁹

Key Features

Camera tilt control: Yes
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Auto-tracking: Yes
Lens viewing angle, vertical: 71.9°°
Lens viewing angle, diagonal: 126.2°°
Power consumption (Power over Ethernet (PoE)): 9W
Infrared (IR) cut-off filter: Yes
Alert notification type: E-mail
Type: IP security camera
Active tampering alarm: Yes
Flip & mirror: Yes
Fog proof: Yes
Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920, 320 x 240, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA)
Sample rate: 48kHz

Specifications

Features

Web browser

✓

Protection features

Vandal proof

Number of sensors

Audio formats supported

AAC-LC, ADPCM, G.711, G.726

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

512 GB

Video motion detection

✓

Connectivity technology

Wired

Product colour

Ivory

Video streaming

✓

Alert notification type

E-mail

Type

IP security camera

Active tampering alarm

✓

Flip & mirror

✓

Fog proof

✓

Supported graphics resolutions

1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920, 320 x 240, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA)

Sample rate

48 kHz

Weight & dimensions

Weight

380 g

Height

90 mm

Depth

110 mm

Width

110 mm

Power

Power consumption (typical)

8 W

Power source type

PoE

Power consumption (Power over Ethernet (PoE))

9 W

Performance

Number of effective pixels (H x V)

2616 x 1976 pixels

PTZ modes

Digital PTZ

Auto-tracking

✓

Camera pan control

✓

System requirements

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra

Windows operating systems supported

Windows 10, Windows 7, Windows 8.1

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

355 °

Storage

Compatible memory cards

SD, SDHC, SDXC

Design

IK code

IK08

Housing material

Metal

Mounting type

Ceiling

Form factor

Dome

Network

Networking standards

IEEE 802.3af

Supported network protocols

ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, NTP, PIM-SM, PPPoE, QoS, RTCP, RTP(TCP), RTP(UDP), RTSP, SMTP, SNMPv1/v2c/v3(MIB-2), SSL/TLS, TCP/IP, UDP/IP, UPnP

Streaming method

Multicast, Unicast

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Ports & interfaces

Ethernet LAN (RJ-45) ports

Microphone in

✓

USB port

✓

Composite video out

Operational conditions

Operating relative humidity (H-H)

0 - 90 %

Storage relative humidity (H-H)

0 - 90 %

Technical details

Remote viewing

✓

Audio

Audio system

2-way

Audio detection

✓

Lens system

Number of lenses

Maximum aperture number

1.60

Fixed focal length

3.70 mm

Noise reduction technology

3D noise reduction

Video

Video formats supported

AVC, H.264, H.265, M-JPEG, MPEG4

Frame rate

30 fps

Privacy masking

✓

Text caption overlay

✓

Image quality adjustment

Contrast

Security

IP address filtering

✓

Focusing

Focus

Manual

Closest focusing distance

0.40 m

Camera

Back Light Compensation (BLC)

✓

Camera shutter speed

2 - 1/12000 s

Image stabilizer

✓

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Total megapixels

6 MP

Number of cameras

Signal-to-Noise Ratio (SNR)

50 dB

Sensor type

CMOS

Lens viewing angle, horizontal

97.5°

Progressive scan

✓

White balance

Indoor

Zoom capability

✓

PTZ control

✓

Wide Dynamic Range (WDR)

✓

Intelligent Video Surveillance (IVS) system features

Crossing line, Defocus, Face detection, Missing object, People counting

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

126.2°

Lens viewing angle, vertical

71.9°

Camera tilt control

✓

Shutter

Camera shutter type

Electronic

Pan-tilt unit

Tilt angle range

0 - 67 °

Pan range

0 - 354 °

Image sensor

Maximum resolution

2560 x 1920 pixels

Minimum illumination

0.16 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

30 m

Product Details

XND-8020R 5M Network IR Dome Camera

Files

User manual

mmo_69098179_1574787207_6562_21995.pdf

PDF• 16.7 MB

Product Brochure

mmo_69098179_1574787210_841_22077.pdf

PDF• 353.7 KB

Tech drawing

mmo_69098179_1576142339_8929_21797.pdf

PDF• 87.5 KB
