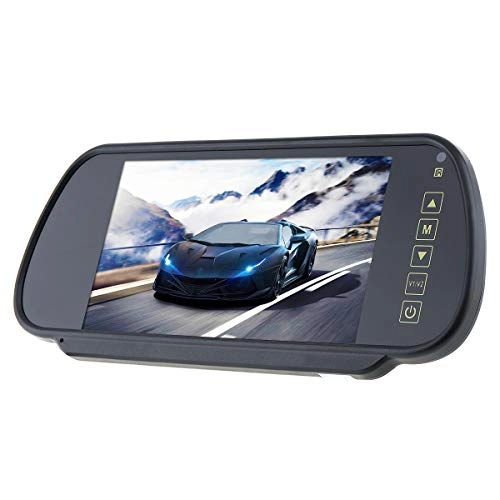

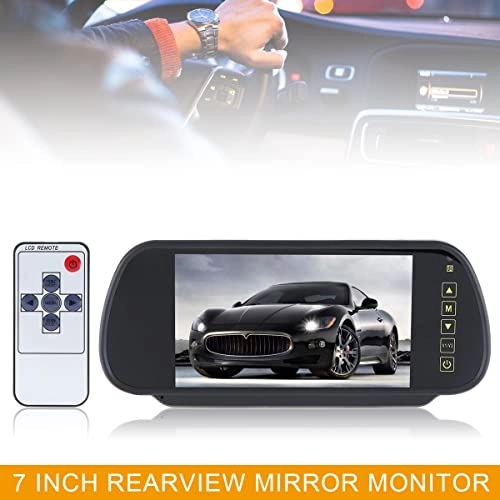

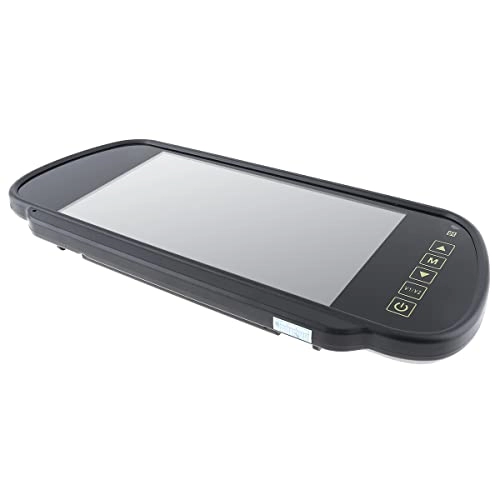

ePathChina EPC_CMO_318 - 7 Inch

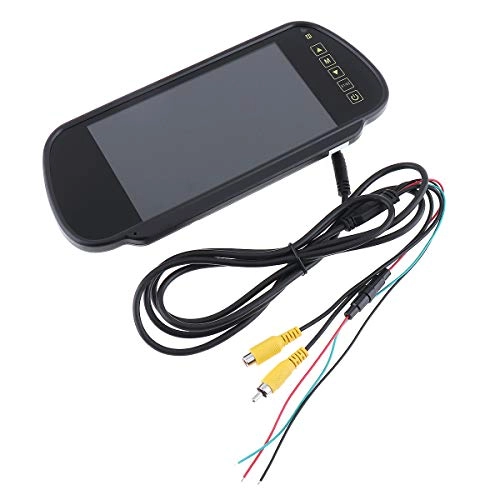

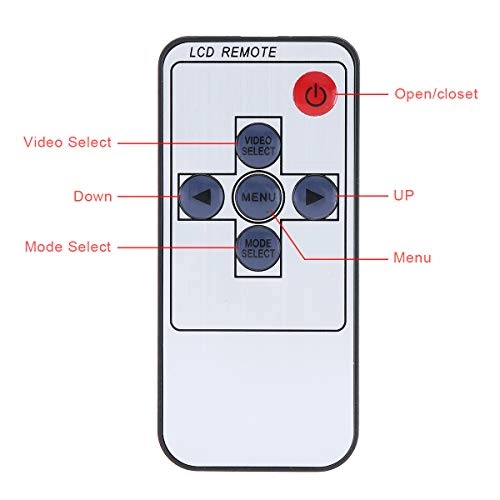

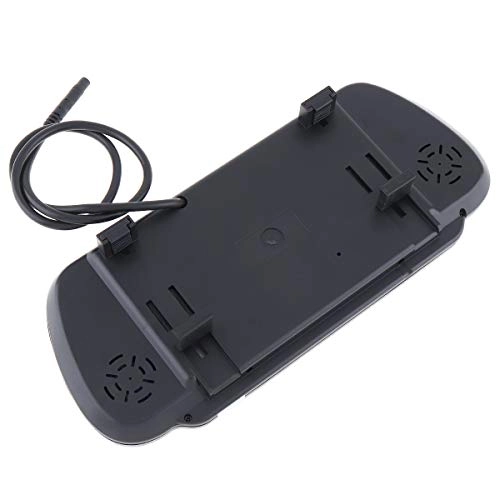

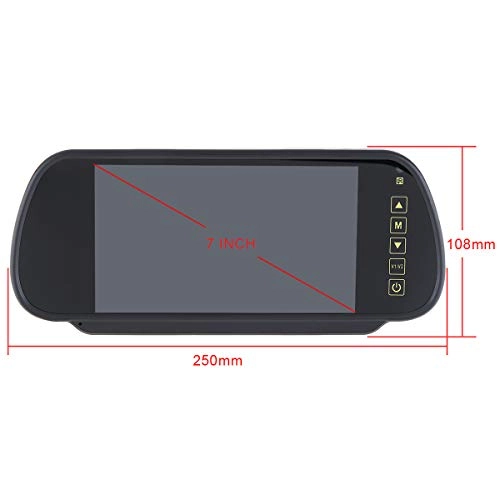

Specifications: Screen Dimensions: 7inch System: PAL & NTSC Power: DC 12V Consumption: 7W Video: Two way video input Rear Watching: Image can be chaged left and right Operate Mode: The key operation and remote control Introduction Of Function Keys: 1. Power: Switch for power supply 2. Video: V1 / V2 selecting 3. Menu: Menu ( brightness, colors, contrast ) button 4. Vol+: Increasa button 5. Vol -: Reduces button 6. Mode: Selecting results of display Installation Guide: - Red. To connect the anode of back-up light. - Black. To connect the cathode of back-up light. - Back-up response-line. To connect the anode of back-up light. - Red. To connect the anode of ACC ( key switch ) . - Black. To connect the cathode of ACC ( key switch ). - AVI. It can be connected with DVD and other videos. - Connect. Package Weight : 600 G / 21.16 Ounces Package Dimensions (L*W*H) : 280*168*65 MM / 11.02*6.61*2.56 Inches Package Include: 1 x Monitor 1 x Bracket 1 x Remote Control 1 x Adapter
