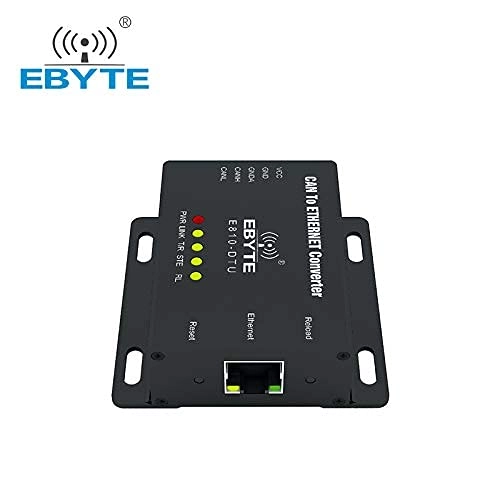

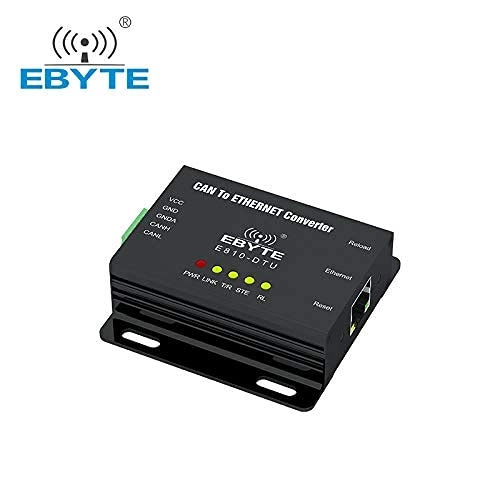

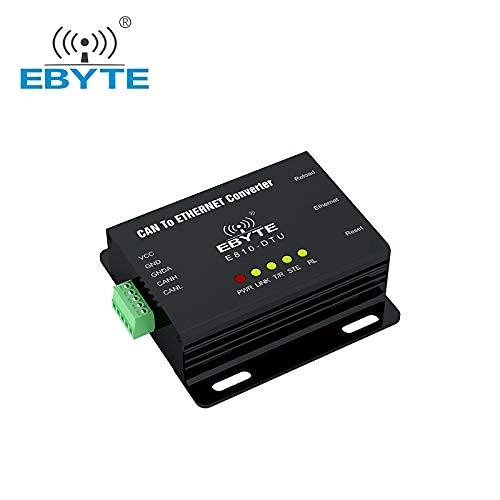

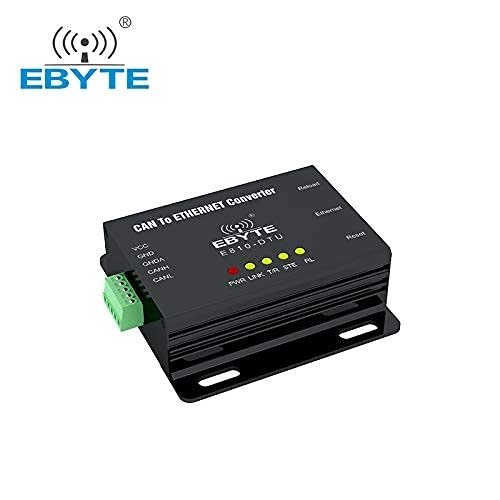

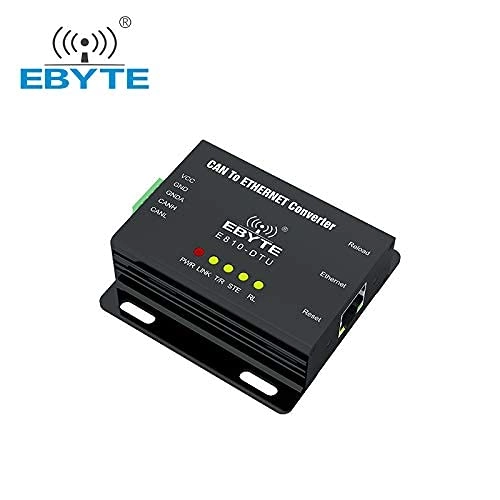

EBYTE E810-DTU(CAN-ETH)

[Interface] : CAN [Interface] : Ethernet [Feature] : CAN-BUS to Ethernet [Introduction] : The E810-DTU (CAN-ETH) is a high-performance CAN-Bus DTU that integrates one CAN interface and one Ethernet interface. With the high-performance E810-DTU (CAN-ETH), users can easily interconnect the CAN-bus network and the Ethernet network. Features CAN Features Integrated 1 channel CAN-bus interface； CAN-bus signal includes：CAN_H、CAN_L CAN-bus support CAN2.0A and CAN2.0B format, which satisfy ISO/DIS 11898 specification； CAN-bus communication baud rate has 15 baud rates from 6Kbps to 1Mbps； CAN-bus interface has electrical protection; common mode inductor for effective removal of common mode noise; Ethernet Features The standard Ethernet interface, RJ45, supports 10/100M self-adaptation; Support heartbeat packages, registration packages, short connections, KeepAlive, cache clearance and timeout restart functions; Support Modbus TCP to RTU function; Supporting Transport Cloud(Ebyte Cloud)； Support Web page settings； Working Port, Target IP and Target Port can be set； Support two SOCKET working simultaneously, four SOCKET working modes (TCP Server, TCP Client, UDP Server, UDP Client);
