D FKGH Rear Camera - Night Vision 720x540 pixels

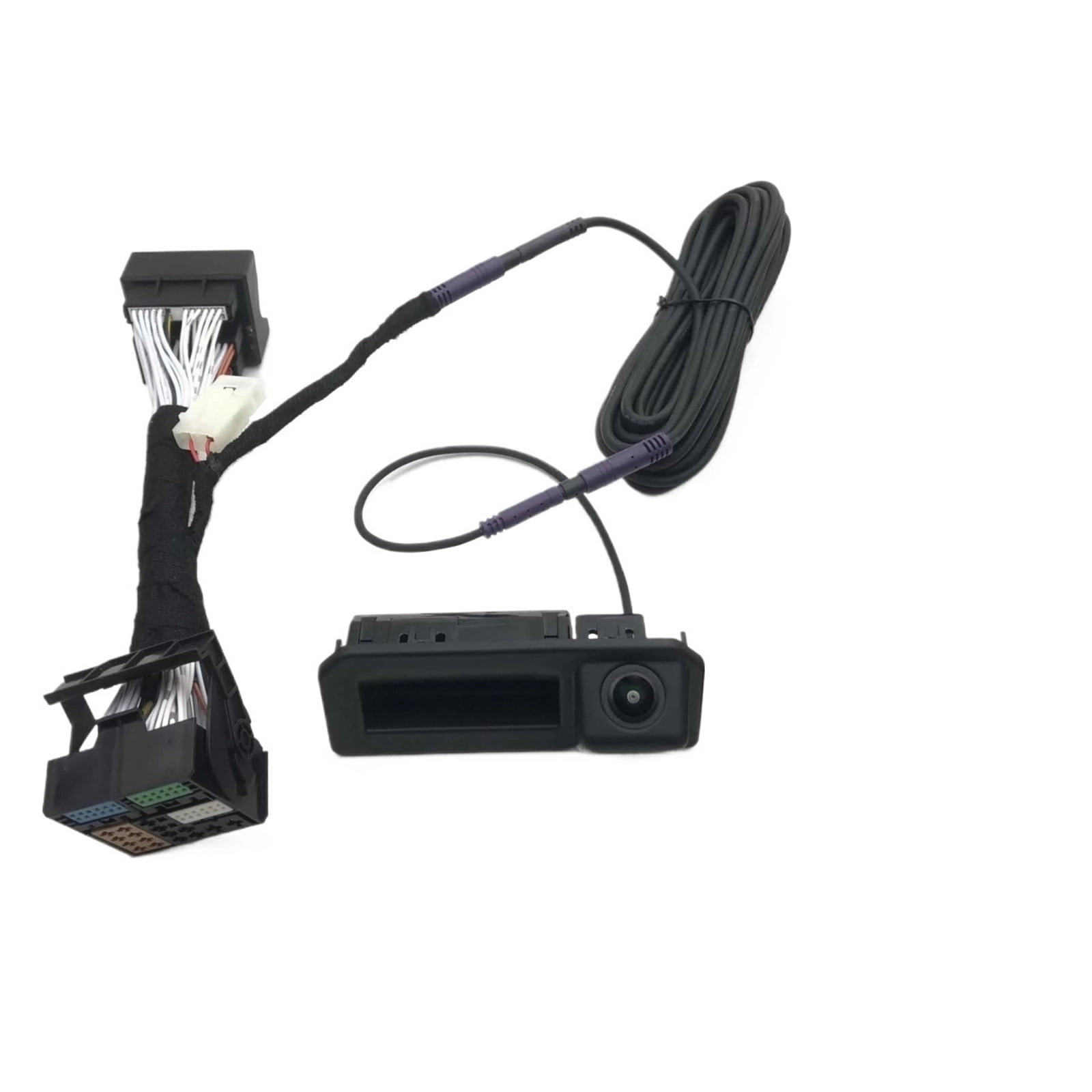

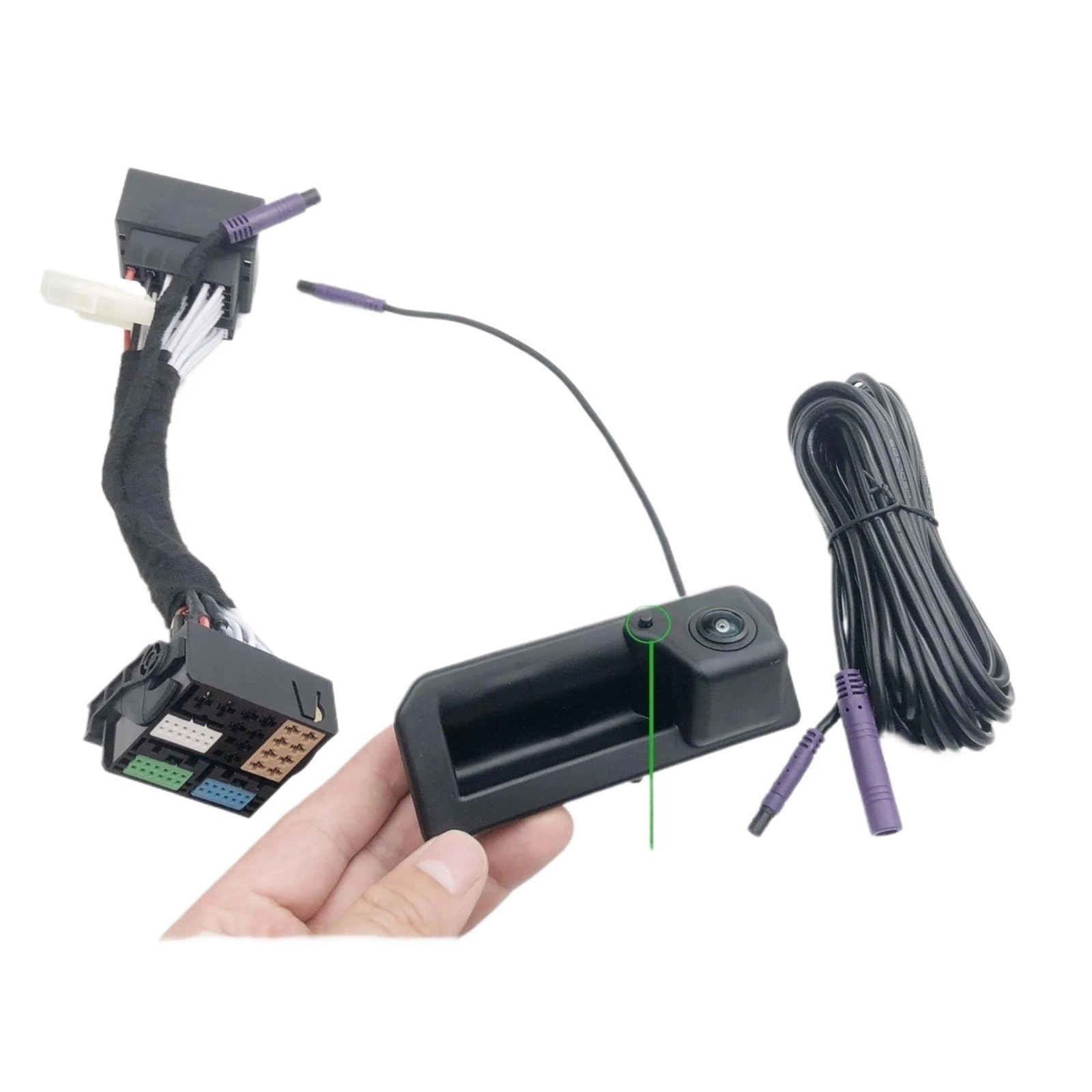

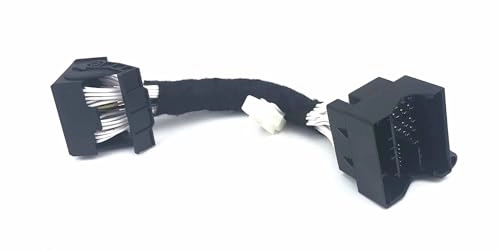

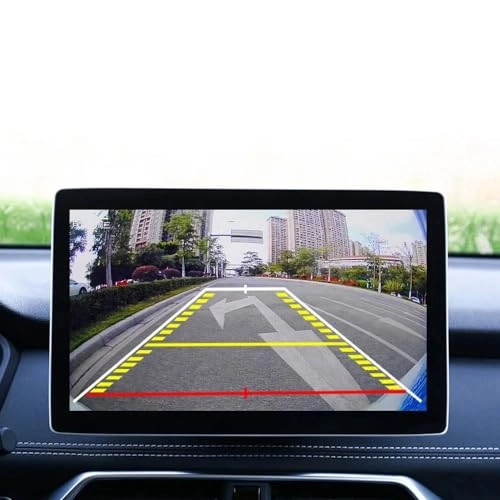

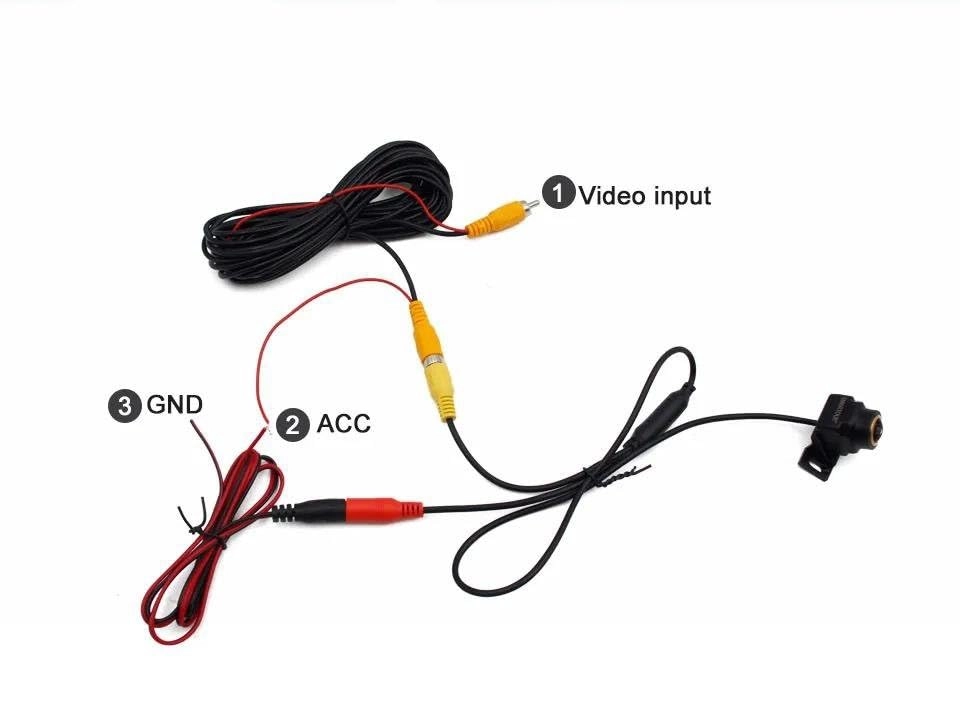

Steps for automatically activating the original car's rear view function 1. Insert the power plug into the corresponding position of the original vehicle navigation power line (as shown in Figure 3) pay attention to the positive and negative poles and the PQ platform model needs to be wired for power supply. 2. Plug in or connect the blue video heads (as shown in Figure 1) and plug in or connect the gray CAN cable adapter (as shown in Figure 2) (PQ platform CAN cable requires wiring) 3. Do not plug the camera in turn on the vehicle ignition and start the vehicle. Enable the to function normally on the radio or music interface. 4. MIB/MQB/PQ platform plug in the camera and the sound of the radio or music will pause and mute. After the sound returns to normal press and hold the on/off button to restart the or unplug the power. After two minutes plug in again. After the restarts shift into reverse gear and the reverse image screen will appear. Rotate the steering wheel and the trajectory line will swing with the steering wheel to complete activation. 5. 869 platform plug in the camera the will automatically restart. After the restores the radio or music interface shift to reverse gear to display the image and complete the activation. Kind reminder: It is recommended to complete the opening steps before wiring. After confirming the completion of opening proceed with wiring installation. The Reversing Camera For Car Can Replace The Rearview Mirror, Providing A Clear View Even In Rain, Fog And Mud. You Don’T Have To Worry About Water Getting Inside The Camera Or Fogging Up In The Rain Or When Washing Your Car. The back camera / reverse camera is specially designed for seeing the blind spot where your mirrors can’t reach, it can help you see more when you driving or parking, effectively avoid a lot of trouble.
