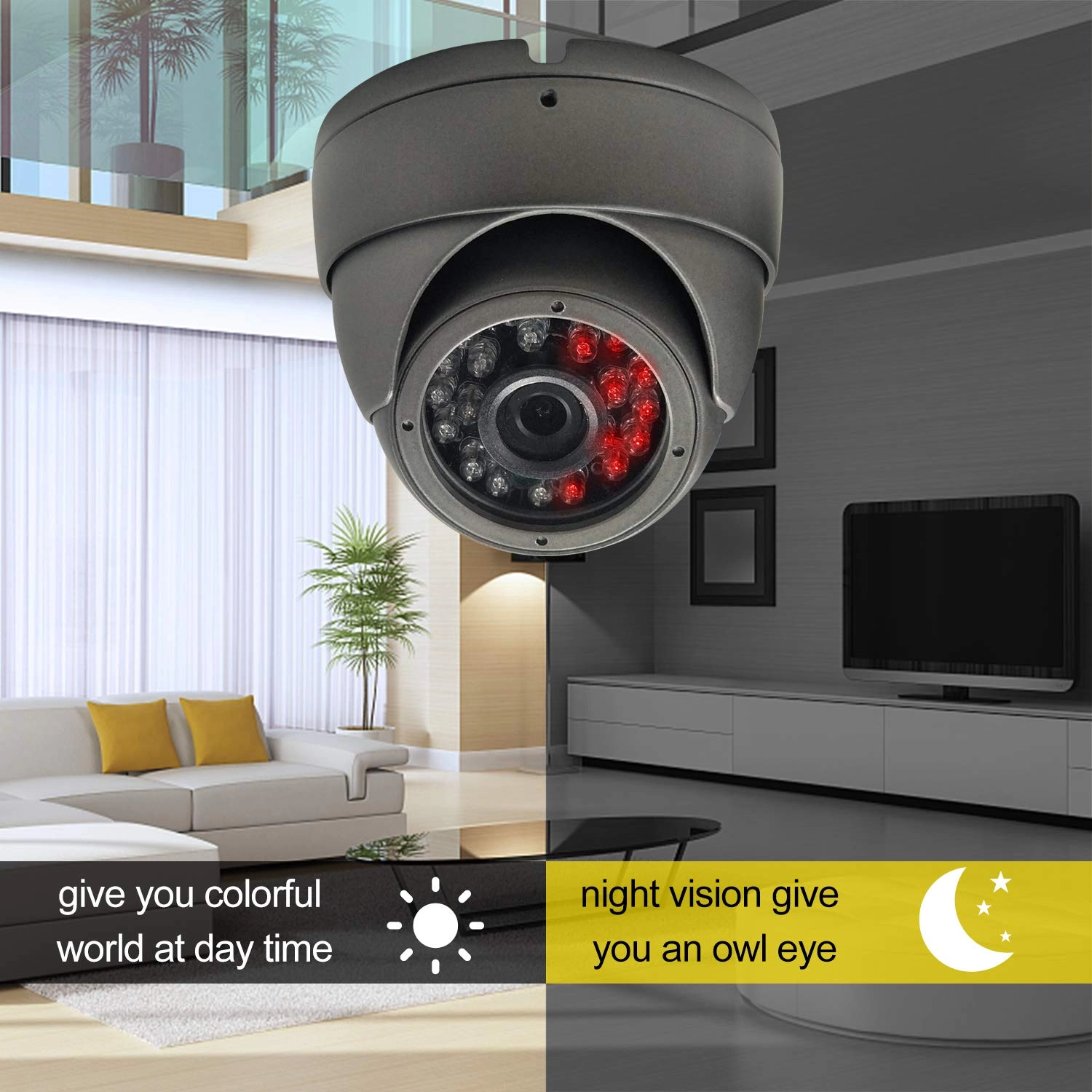

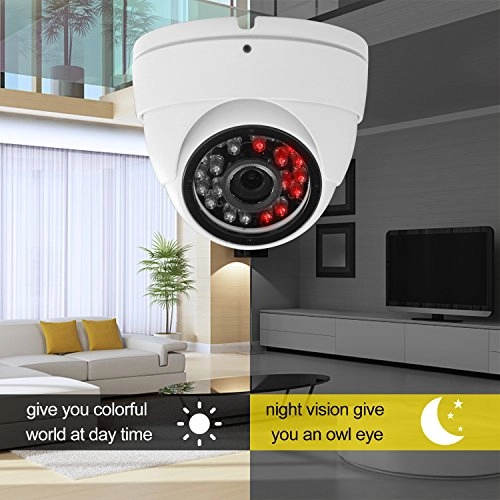

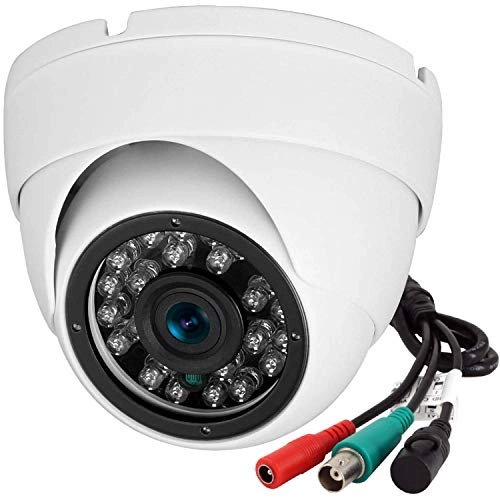

CUMCITIN Security Dome Camera 1080P

Tips:

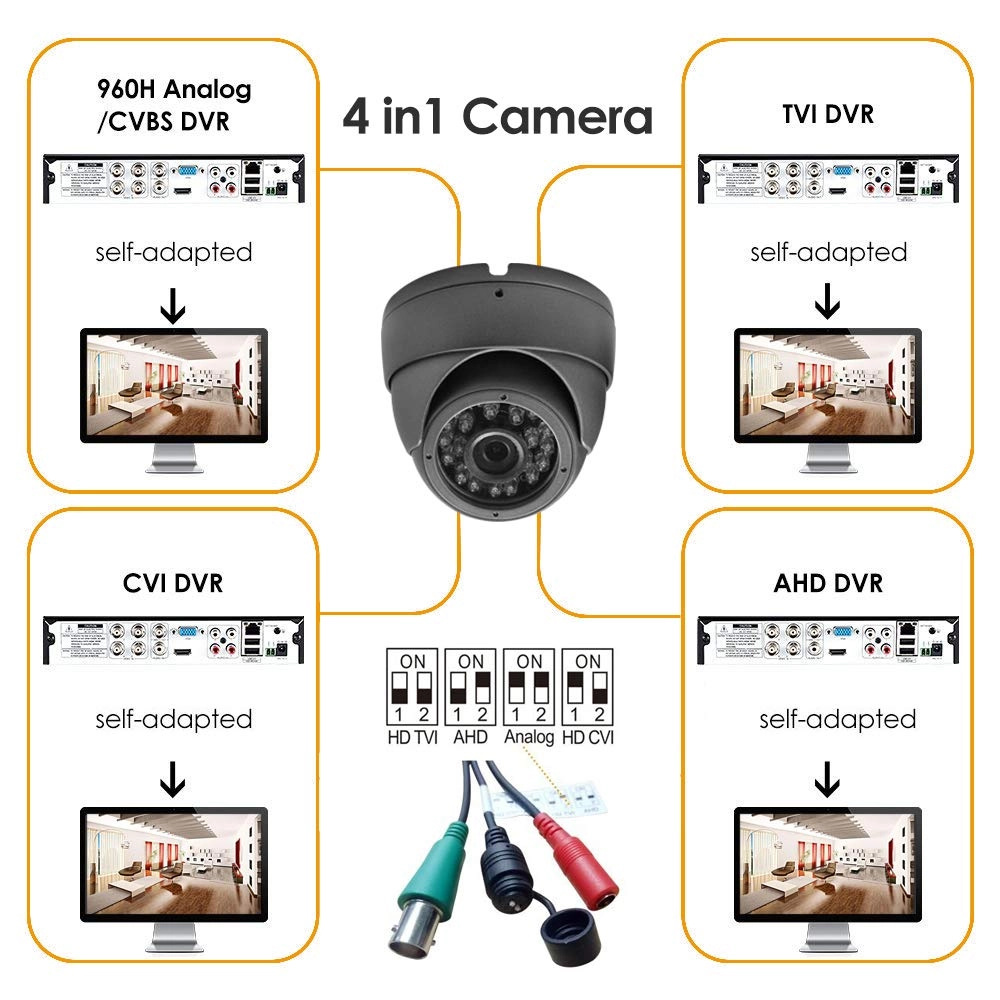

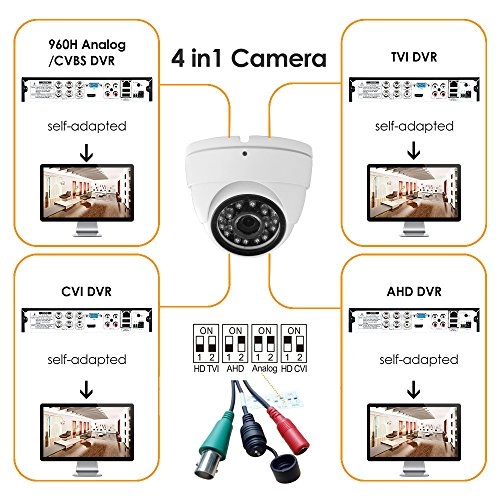

1. This camera has 4 modes for video output: 1080p AHD, 1080p CVI, 1080p TVI and 960H analog (cvbs)

2. Default MODE is TVI 1080P mode, please change to corresponding VIDEO MODE by DIP switch cable

3. The camera OSD Menu is controlled via DVR (through UTC function)

4. This surveillance camera needs a 12V/1A power adapter & BNC cable (Not Included) to connect with DVR system.

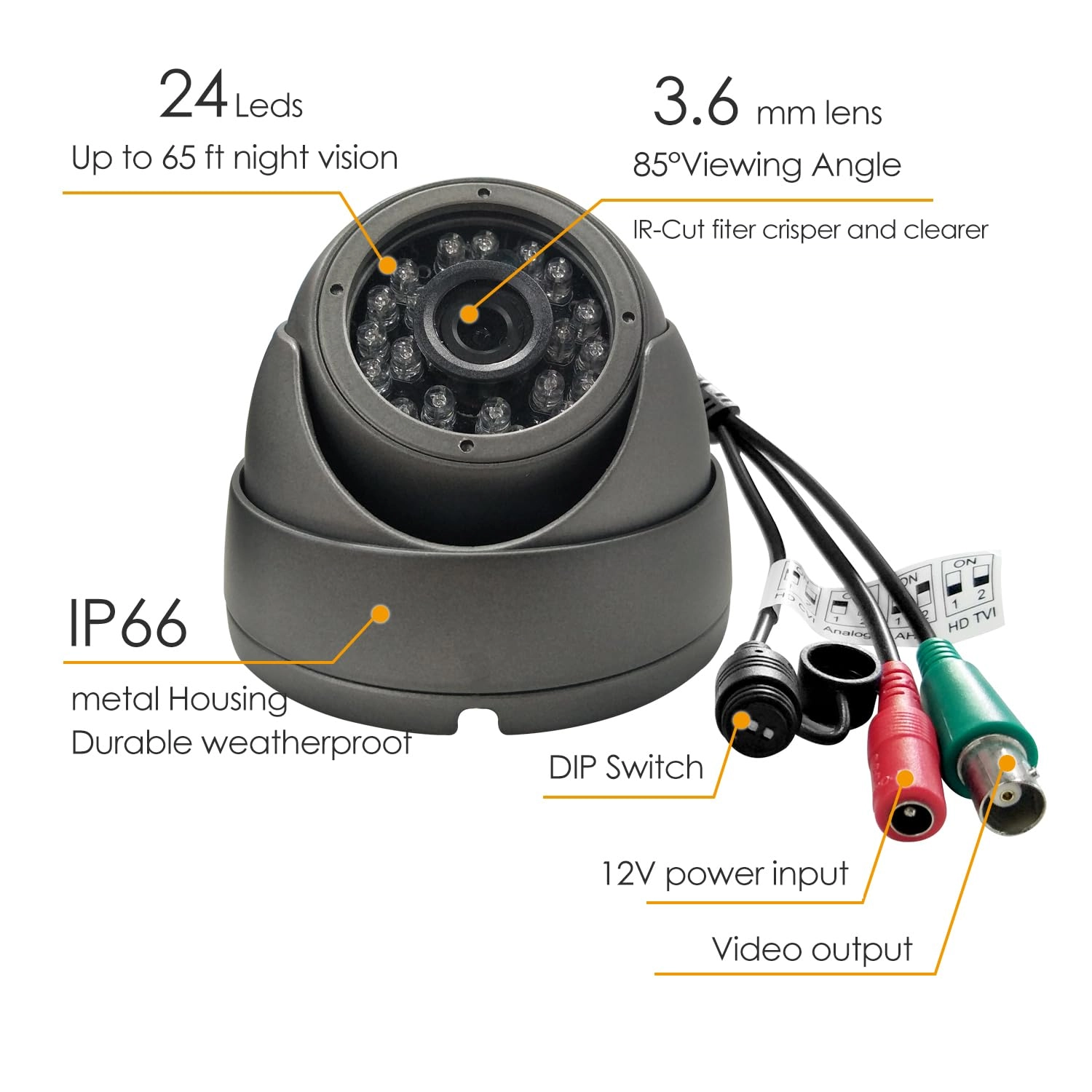

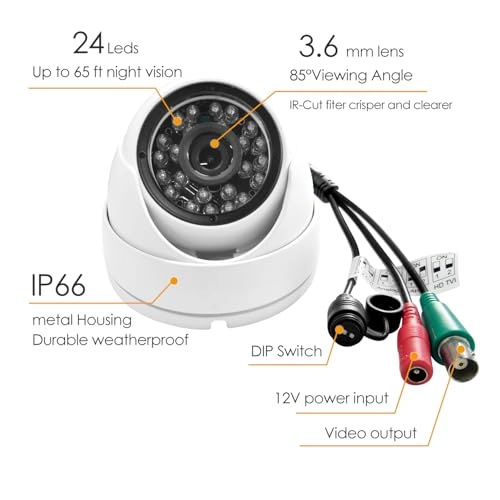

Technical Parameters :

- 1/2.9" color CMOS sensor - Resolution: 1920x1080

- 65' IR Range

- TV System: NTSC

- Video Output: HD-TVI(1080P),(AHD/TVI/CVI/CVBS)

- Day & Night: Support (ICR)

- Frame Rate: 25fps (50HZ), 30fps (60Hz)

- Min illumination: 0.1lux(LED ON) 0.01lux(0-3 lux LED)

- S/N Ratio: >52dB (AGC off)

- Electronic Shutter: Auto 1/50s (1/60s)-1/100.000s

- White Balance: Auto

- Gain Control: Auto

- Weatherproof for indoor/outdoor

- Power Supply: DC12V 1A

Package included :

1 x Dome camera

1 x Bag of mounting screws

1 x Manual
