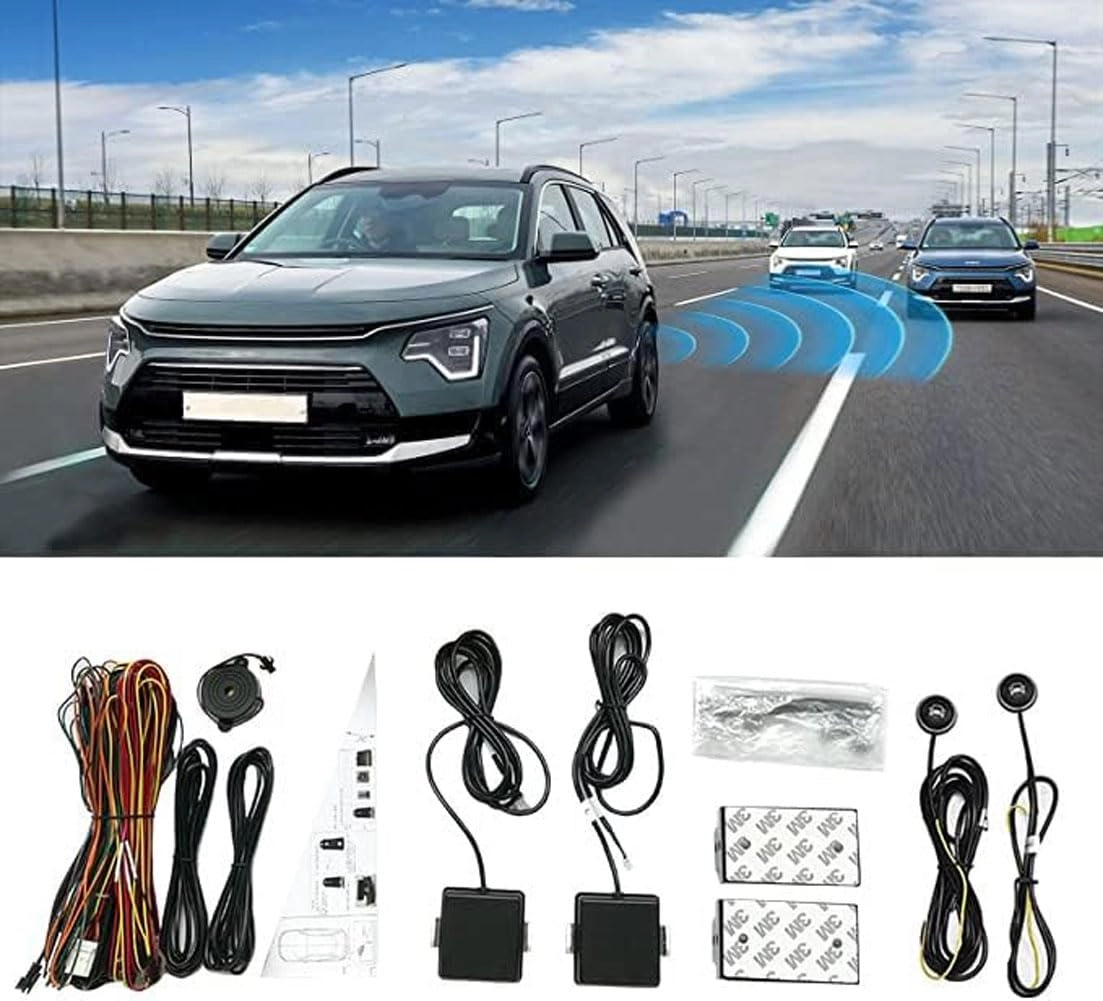

BY-J Blind Spot Detection System - 24GHz Millimeter Wave Radar Sensor

Characteristics 100% original factory, quality assurance! Type:Millimeter Wave Radar Blind Zone Monitoring Vehicle Lane Change Assistance（BSD BSM) Voltage: 12 V. Maximum power: 5 W (maximum) Working temperature: -40° + 85° Storage temperature: -40° + 85° Waterproof rating: IP67K Detection range: lateral distance: 0.3m-4m; rear lateral distance: 0.3m-10m. Detection range accuracy: 96 Alarm range: 0.3m-10m Alarm system accuracy: 96 Alarm method:Method 1 => The LED lights up. Method 2 => The LED flashes and beeps. voltage : 12 [Single Microwave Radar Sensor] High-speed frequency sensors for the left-rear and right-rear of the vehicle. The BSD system is activated with the turn signals, whenever there is a moving object pop into the rear of the vehicle, with the aid of LED lighting on, blinking, buzzer sound so that the driver can be cautious when lane changing to avoid the possibility of side crash accident. [Detecting Distance] The system uses a 24GHz millimeter-wave radar sensor chip, uses single transmit and four receive radar antennas, is equipped with sophisticated computer algorithms, and automotive-grade quality waterproof plugs, with a detection range of up to 15m, can monitor the closing objects in the neighbor lane within a range of 3.5m with speed gap over 0.5m/second. [Important Notes] This system integrates blind spot detection and reversing assistance.This item fits for most DC12v sedan, compact, SUV, MPVs, pickup etc, doesn't suitable for vehiche with metal bumper, and professional installer installation is required.
