Wire Tester RJ45 RJ11 Cable Tracker Line Finder – Multifunction Network Cable Tester Cat5 Cat6 LAN Ethernet Tester with Earphone for Cable Collation, Telephone Line Test, and Network Maintenance
The Ethernet Cable Tester is a versatile handheld network tester. It supports a wide range of applications for enhanced cable types and multiple functions. Not only the necessary test kits for telecom engineering, cabling engineering and network maintenance personnel, but also ideal for everyday life, such as telephone line cable testing, network cable tracking, TV cable and other weak electrical wires.
Sensitive sensor, stable and reliable.
With easy to operate and smooth appearance, the circuit finder and tracer is wide applicated in our life and work. The interface of the LAN tracker is flexible, switch is energy-saving and the high quality protecive case also provides more secure protection.
Specifications
- ✅Power specs: DC, 9V laminated battery(Not included)
- ✅Max operating current: Emitter+-10mA;Receiver+-30mA
- ✅Signal transmission format: Multi-frequency pulse
- ✅Testable wire: Twisted pair, telephone line, video line, common metal wire and network wire
- ✅Testable port: RJ11, RJ45
- ✅Signal output level: 8Vp-p
- ✅Signal transmission distance: 1-3000m
Function
- ✅Tracer function: This instrument is suitable for RJ11, RJ45, and other metal wires can be found through the transmitter.
- ✅Telephone line test: the work of the telephone line of the detection of various states, only the transmitter can be detected, such as determining TIP or PING line, to determine the work of the telephone line idle, ringing and off-hook state.
- ✅Line function: the line detection is on the line of the open, shorted, wrong, reverse the physical connection detection.
Typical Applications
- ✅Telecommunication network, line engineering. and routine maintenance.
- ✅Computer network line engineering.
- ✅Other metal wire wiring works and maintenance work.
Scope of Applications
- ✅Internet Cafe.
- ✅Hotel network room.
- ✅Electric power repair.
- ✅Monitoring installation.
- ✅Network line engineering.
Attentions
- ✅Do not use on a line with a strong current.
- Remove the battery when you don't use it for a long time.
- ✅Never use it in a thunderstorm.
- ✅Use the standard 9V alkaline product battery or 9V charging battery.
- ✅Storage note: Dust-proof and moisture-proof.

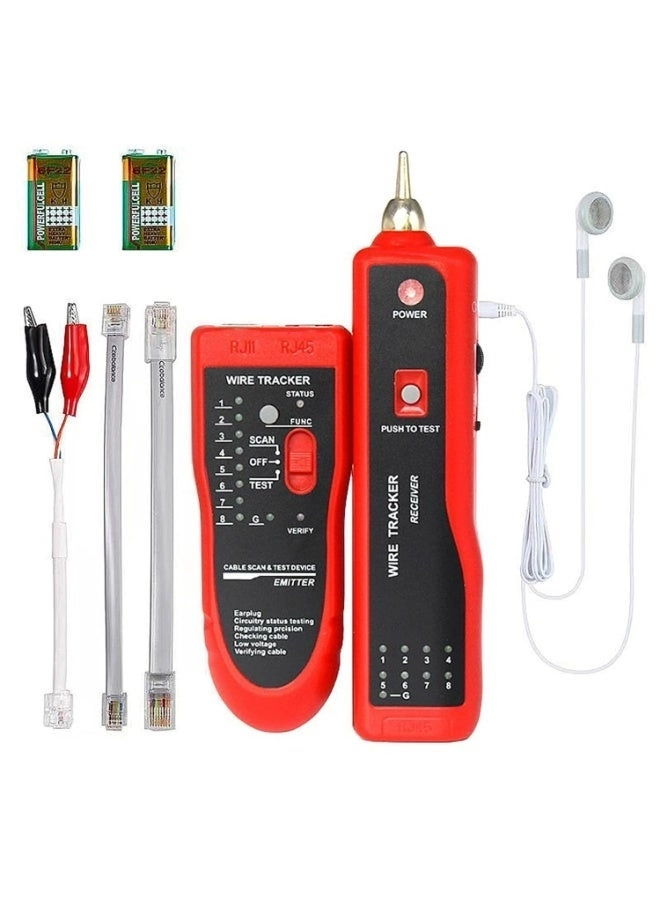

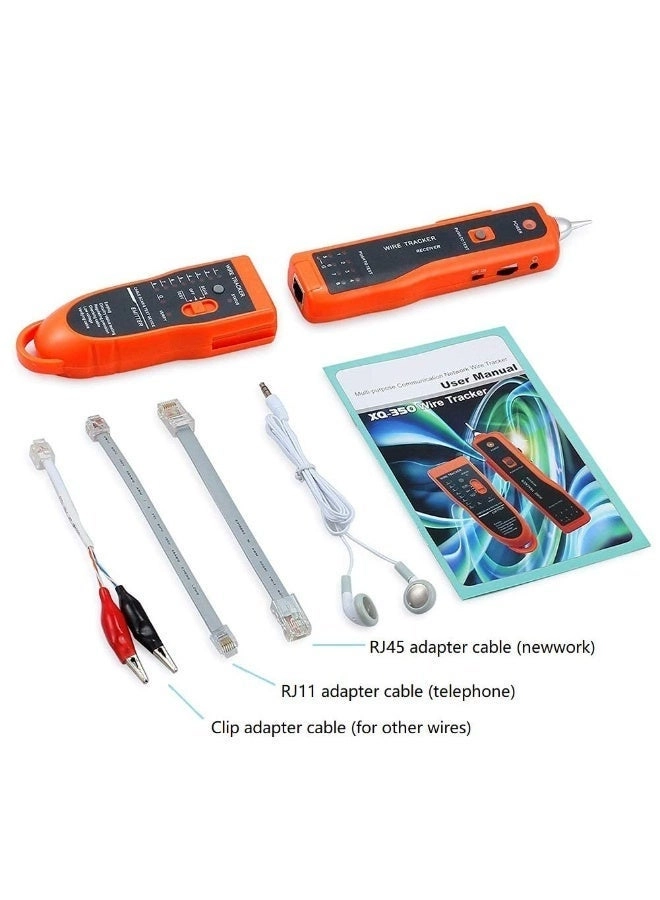

What's In The Box?
- ✅1 x Emitter
- ✅1 x Receiver
- ✅1 x Pair of Earphone

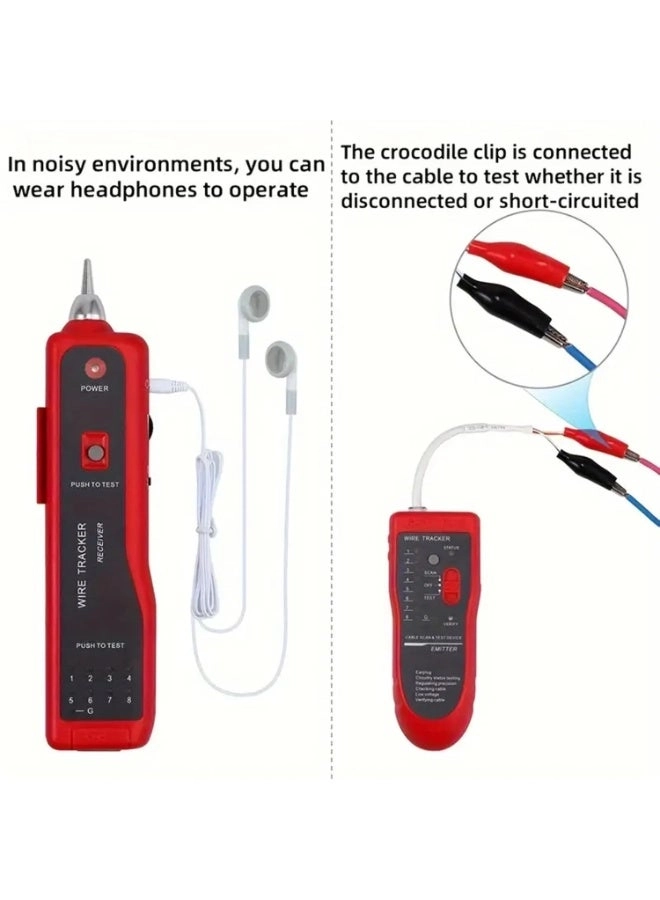

- ✅1 x Alligator clip adapter
- ✅1 x RJ11 with Clip Adapter Cable
- ✅1 x RJ45 Adapter Cable
- ✅1 x English User Manual
- ✅1 x Box
Network Line Verification Function:

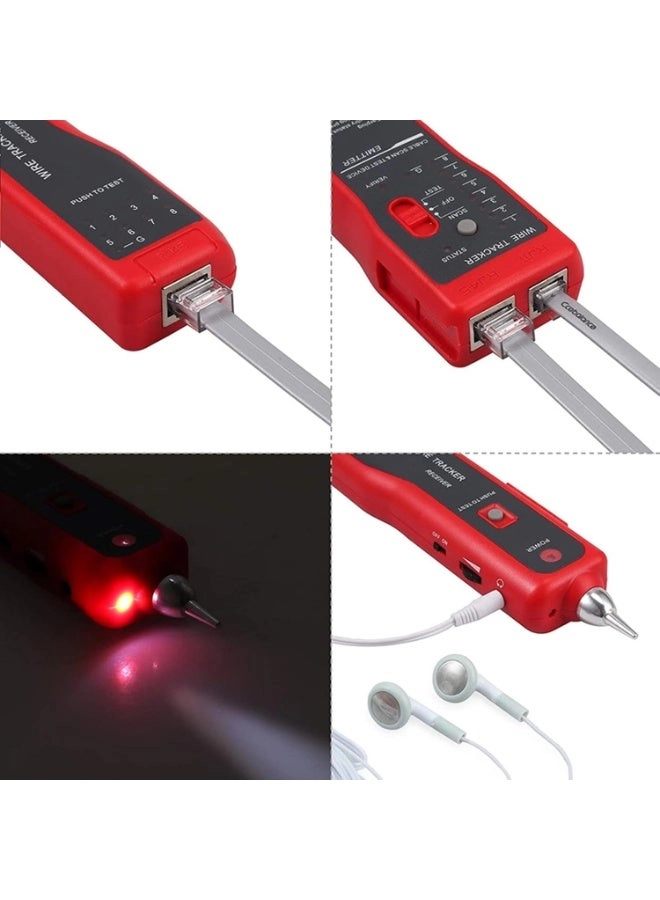

✅Insert the RJ45 plugs on both ends of the network cable into the corresponding port of the emitter and the receiver.

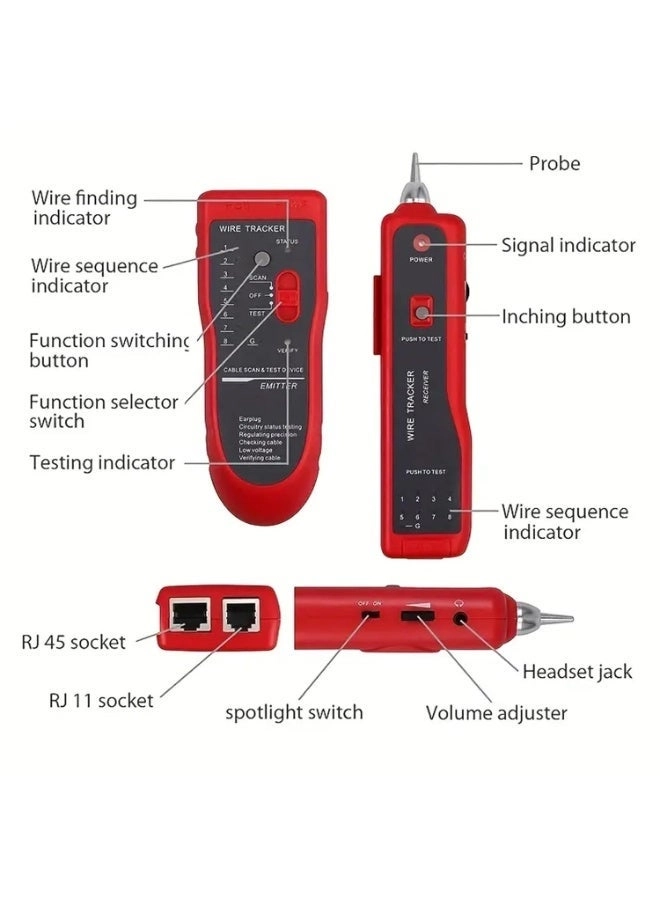

✅Move the function selector switch of the mitter to "TEST", then the testing indicator "VERIFY" will be on, indicating that the emitter works normally.
✅According to the 18 wire sequence indicators, determine such characteristics as short circuit. broken circuit, open circuit, crossing and so on.
The receiver does not have an RJ11 port and cannot perform a line test on an RJ11 cable.
