ARCTIC P14 Max - 1 fan(s) 140mm

Name: ARCTIC P14 Max - 1 fan(s) 140mm
Brand: ARCTIC
SKU: 905996
Availability: InStock

Best offer

AED

120⁹⁰

Key Features

Noise level: 0.3sone
Starting voltage: 3.9V
Number of fan blades: 5
Fan dimensions (W x D x H): 16 x 140 x 140mm
Fan weight: 240g
Rotational speed (max): 1700RPM
Maximum air pressure: 2.4mmH2O
Type: Fan
Bearing type: Fluid Dynamic Bearing (FDB)
Noise level (high speed): 24.5dB
Airflow: 123.76m³/h
Maximum airflow: 72.8cfm
Rated voltage: 12V
Fan current: 0.19A
Compatible processor series: Not supported

Specifications

Features

Country of origin

China

Screws included

✓

Pulse-width modulation (PWM) support

✓

Fan diameter

140 mm

Suitable location

Computer case

Supported processor sockets

Not supported

Product colour

Black

Rotational speed (max)

1700 RPM

Maximum air pressure

2.40 mmH2O

Type

Fan

Bearing type

Fluid Dynamic Bearing (FDB)

Noise level (high speed)

24.50 dB

Airflow

123.76 m³/h

Maximum airflow

72.80 cfm

Number of fan blades

Starting voltage

3.90 V

Packaging data

Package type

Box

Package weight

234 g

Package height

29 mm

Package depth

143 mm

Package width

143 mm

Weight & dimensions

Weight

194 g

Height

27 mm

Depth

140 mm

Width

140 mm

Cable length

0.40 m

Fan weight

240 g

Fan dimensions (W x D x H)

140 x 140 x 16 mm

Power

Power consumption (typical)

1.44 W

Voltage

12 V

Rated current

0.12 A

Rated voltage

12 V

Fan current

0.19 A

Performance

Noise level

0.30 sone

Other features

Airflow

123.69 m³/h, 123.76 m³/h, 161.4 m³/h, 186 m³/h, 88.35 m³/h

Packaging content

Number of screws

Manual

✓

Ports & interfaces

Fan connector

4-pin

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Processor

Compatible processor series

Not supported

Logistics data

Harmonized System (HS) code

84733080

Circular saw

Rotational speed (min)

200 RPM

Product Details

The P14 PWM features completely redesigned fan blades and is optimised for high static pressure. Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance.The wide RPM range from 200 to 1700 RPM can be regulated steplessly via PWM.The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.

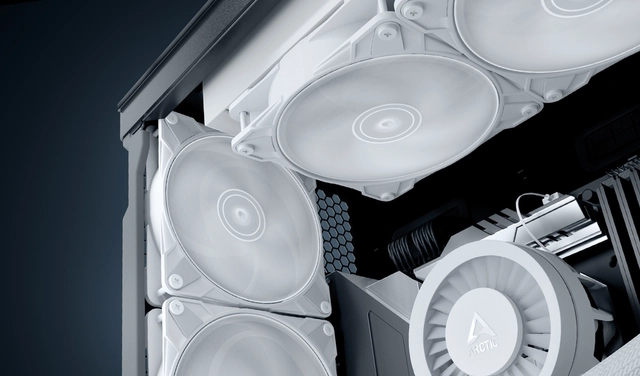

Extremely Wide Speed Range

Building up on the success of the P14 PWM, the P14 Max extends the controllable speed to an impressively wide range from 400 rpm up to 2800 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P14 Max provides a significant performance boost to existing air and water cooling solutions.

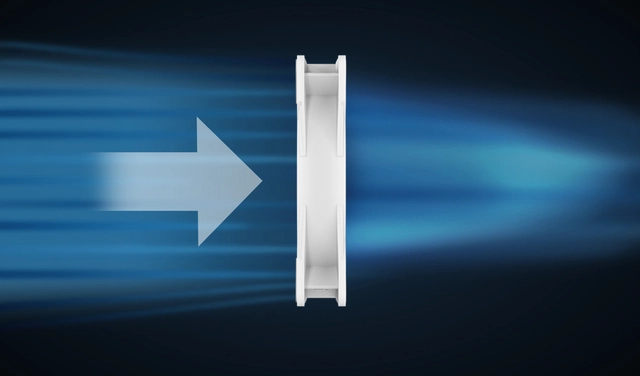

Maximum Performance — Without Compromises

The P14 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P14 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.

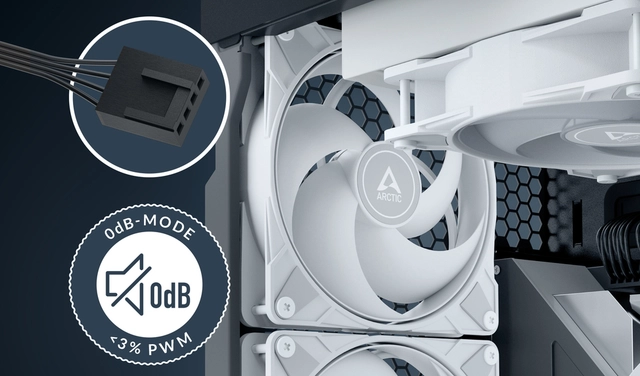

0 dB Mode — Zero rpm

The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P14 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.

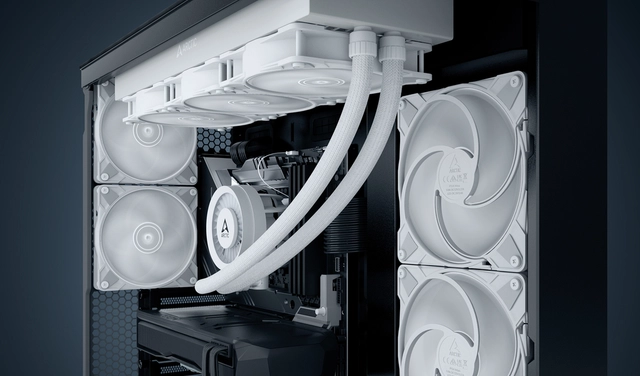

Improved Stability

The P14 Max features a closed fan wheel design. The advantage of this fan wheel combination is a pressure stability without compromise. In scenarios with high pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.

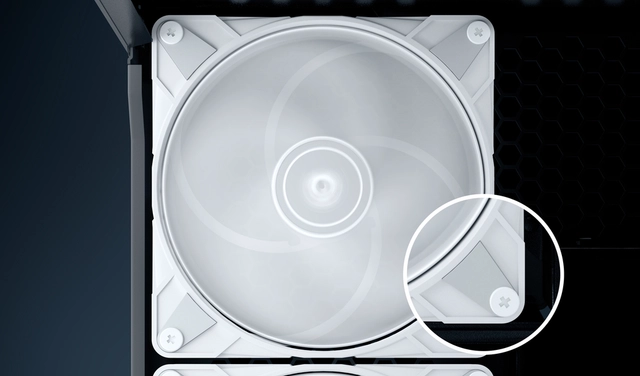

Maximum Smoothness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.

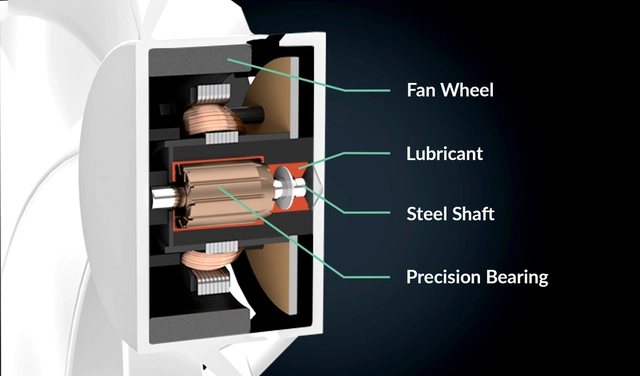

Virtually Silent due Fluid Dynamic Bearing

As a special feature, the P14 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds that customers have been asking for. At maximum speed, brute performance is still guaranteed. Although these bearings tend to wear out, ARCTIC does not compromise on durability and still offers the 6-year warranty.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.
