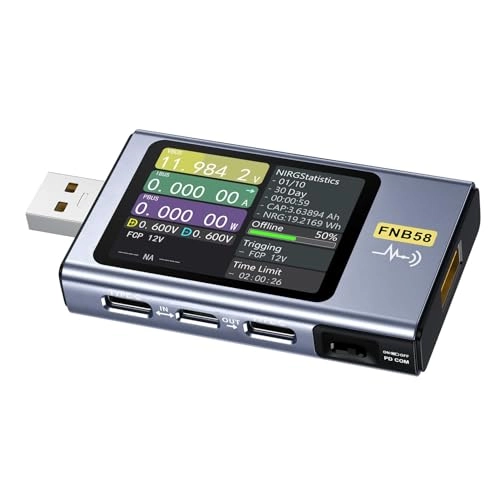

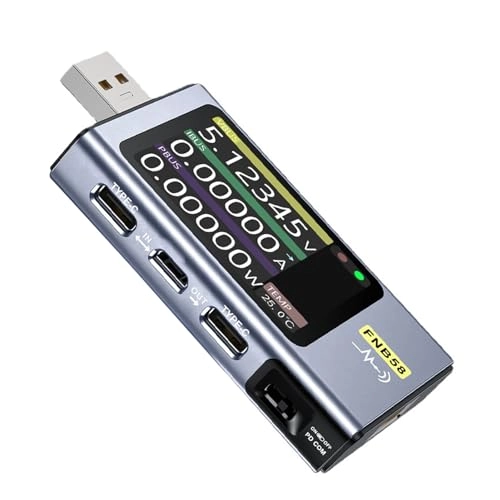

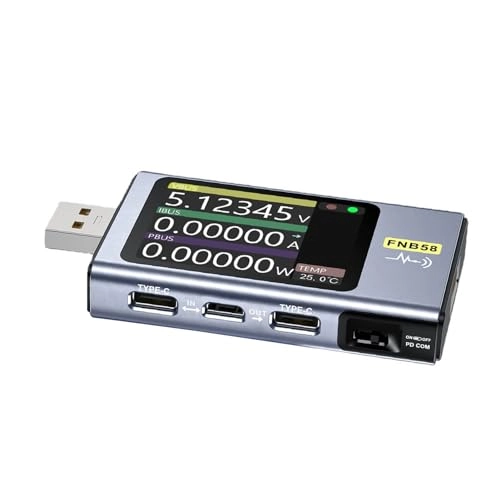

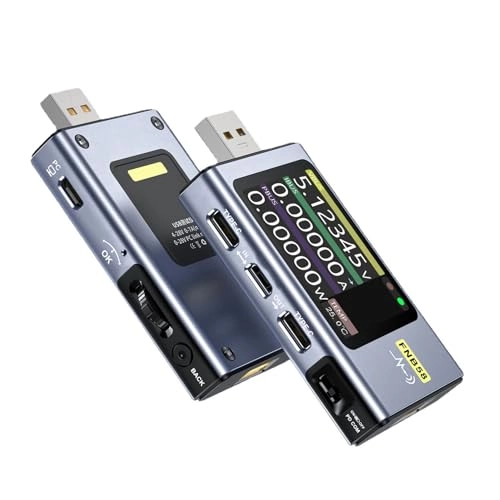

1. 2.0 inch HD LCD display: This USB power multimeter adopts 2.0 inch HD LCD display, the measurement data can be clearly visible by 5P high USB A, 24P full pin C input and output interface, charging detection.
2. Multifunctional: This USB digital multimeter is multifunctional, supports 10 groups of charging, stores discharge energy data, and has built-in battery capacity calculation formula, which allows you to quickly calculate battery capacity through the stored data.
3. Driver installation: This USB voltage and tester adopts driver installation, which synchronizes data, efficient and convenient, and can display overvoltage and over-alarms through APP.
4. Good Compatibility: This C ammeter voltmeter supports automatic protocol detection, protocol trap, fast PD2.0, 3.0, for PPPS, QC2.0, 3.0, QC4, for SCP, for AFC, for PE, for DASH. VOOC, SuperVOOC.
5. Good performance: This USB power meter has a good low resolution of 0,0001, which can track fine changes in voltage, and power in real time during charging, and also features simple display interface, independent function menu, and humanized operation.
Specifications:
Item Type: USB Tester
Material: PCB
Monitor Voltage: Range: 4-28V, Resolution: 0.0001V, Accuracy: ±(0.29‰+2)
Monitor : Range: 0-7A, Resolution: 0.0001A, Accuracy: ±(0.5‰+2)
Monitor Power: Range: 0-140W, Resolution: 0.0001W, Accuracy: ±(0.5‰+2)
Load internal equivalent: Range: 0 ~9999.9Q, Resolution: 0.0001Ω, Accuracy: ±(0.5‰+2)
D + / D - Voltage range: 0- 3.3V, Resolution: 0.001V, Accuracy: ±(1.0% + 2)
Device Temperature: Range: °C, Resolution: 1°C, Accuracy: ±(1.2+3), Range: ℉, Resolution: 1°F, Accuracy: ±(1.2+4)
Capacity: Range: 0-9999.99 Ah, Resolution: 0.0001 Ah
Power consumption: range: 0-999.99Wh, resolution: 0.0001Wh
Indoor cable: range: 0-999.9Q, resolution: 0.0001Ω
Battery life: Range: 99 days 23 hours 59 minutes 59 seconds, Resolution: 1 second
Recording time: range: 99 days 23 hours 59 minutes 59 seconds, resolution: 1 second
Instructions for use:
1. Monitor interface should not be connected to a power supply greater than 28V.2. The PC online port should not be connected to a power supply greater than 16V.3. Only 1 pair of monitor interfaces (1 input port, 1 output port) can work at the same time. If a pair of monitor interface already works, it is forbidden to connect devices to other monitor interfaces. (Except online PC port, PC port can be connected to external power supply). 4. Do not connect devices to monitor interface when using the fast charging Actuator module. 5. Listen after using the PD Actuator, convert, read the E Marker cable function, slide the PD communication switch in the bottom right corner to the OFF position.
Packing list:
Package Content : 1 x USB Tester
