Type 1 : Screen Rotary Endoscope
Rotate Endoscope Camera with screen
Hard cable 8mm 4'3inch screen HD IP67 mini video CCTV rotatable articulation endoscope camera
Articulation bendable angle
0° to 180° or 180° continuously adjustable and can be locked at any angle. Very easy operation: just push down the release button with the thumb to adjust the Rotate Wheel

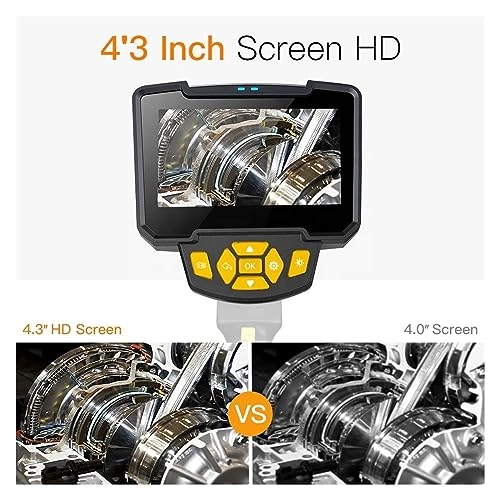

4.3 inch Color LCD Screen
The inspection is equipped with 4.3inch color LCD screen,it does not require a or connection,no signal instability and software crashes.Don't need download app.
Ip67 waterproof & Rain Proof Monitor
With IP67 waterproof level inspection camera head you can use the endoscope in wet, moist or even underwater inspection work such as sewer and pipeline inspection.
Widely Use
Wide application, can be used for automobile inspection, pipeline inspection, air conditioning inspection, etc
Specification:
Sensor: CMOS
Special Features: Waterproof / Weatherproof
Resolution:720P
Direction: 180 / 360 degree
Length: 80 / 200CM
Diameter: 8mm
Pixels: 100w
Cable: Hard cable
The minimum bending: 45MM
The maximum diameter: 8MM
Bending angle:120-180
Depth of field:20mm-60mm
Operating temperature:0-65
Lens angle:70 degrees
Inspection camera Accessories list:
1.One host
2.Hard cable(0.8M or 2M)
3. 4'3inch screen
4.User's manual
features:
1.3-in-1 data interface endoscope camera
2.Real-time video viewing.video recording and picture capture
3.High brightness LED lamp,five adjustable brightness Portable camera button for quick photo taking during easy use
4.180 or 360 degree endoscope's angle adjustable lockable one-handed operation,Quick and convenient
Endoscope for phone specification:
Sensor: CMOS
Special Features: Waterproof / Weatherproof
Resolution:720P
Direction: 180 / 360 degree
Length: 80 / 200CM
Diameter: 8mm
Pixels: 100w
Cable: Hard cable
The minimum bending: 45MM
The maximum diameter: 8MM
Bending angle:120-180
Depth of field:20mm-60mm
Operating temperature:O-65
Lens angle:70 degrees
Widely Use:
Wide application, can be used for automobile inspection, pipeline inspection, air conditioning inspection, etc
Flexible camera endoscope notice:
1.Please observe the precautions described below when operating the instrument.Failure to use the instrument as specified will not guarantee your safety.
2.Do not use or store in explosive,strong electricity magnetic fields,or flammable gas,otherwise it may cause fire or explosion.
3.It is forbidden to work under the condition of being chard,so as to avoid electric shock
4.Do not repair,disassemble or modify the instrument without authorization.
5.Do not subject the product to severe impact or crushing,otherwise it may cause dama to internal core parts and affect product use.
6.When using the dial,first press the dial down and then move forward or backward.Otherwise,the dial will be difficult to rotate. lf it is forcibly rotated,the dial lock may be damad and affect the use.
7.The minimum bending radius of the coil is 10CM.Less than this radius will cause dama to the internal precision parts.When the coil is bent more,the steering mechanism will lose its corresponding function.Do not bend the coil excessively.
8.When the device is in use,it will light a green LED.When adjusting the LED,press and hold for 3 seconds to make the LED to the brightest state.
9.If the instrument needs to be removed from the pipe after bending,reset the steering mechanism and slowly pull out the coil.If forcibly removed during bending,the
