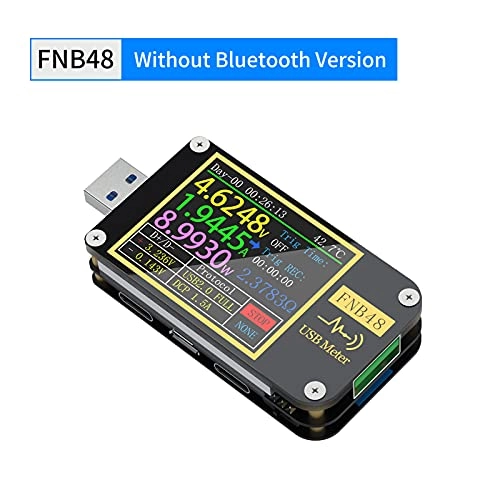

LIOKM FNB48 - Pd Voltmeter Amperemeter Capacity Test

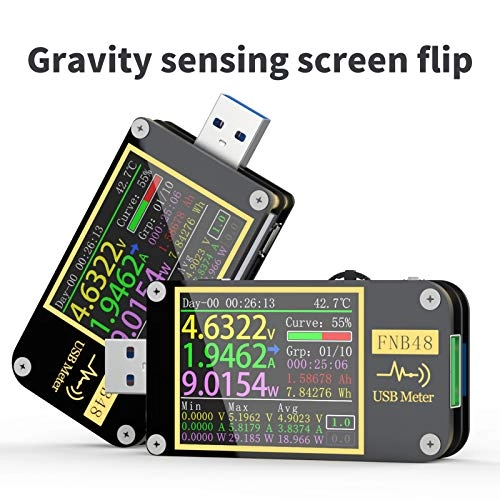

This tool is an multifunction protocol capacity test tool, it integrated USB-A, Micro-USB, type-C interface, with 1.77 inch high definition display screen, using external 16-bit ADC, PD protocol physical chip, which can real-time monitoring of the voltage, current, power, capacity, recharging protocol, curve waveform and so on, come on and try it, it will not let you down. Features: This product support read the data of E-Marker and DASH cable, and the chips of e-marker and DASH cables can be easily read after connecting the data lines. This product support screen flip function, through the gravity-induction, the screen can be free to flip, you can also turn off gravity-direction recognition and flip the screen by long pressing the middle key. This product uses differential pressure method to measure cable resistance. It is used with constant current load to easily detect cable resistance. Specifications: Material: ABS Monitor voltage: 4~24V Monitor voltage resolution: 0.00001V Monitor voltage accuracy:±(0.2%+2) Monitor current: 0~6.5A Monitor current resolution: 0.00001A Monitor current accuracy:±(0.5%+2) Monitor power: 0~156W Monitor current resolution: 0.00001W Monitor current accuracy:±(0.5%+2) Load equivalent international resistance: 0~9999.9 Load equivalent international resistance resolution: 0.0001 Load equivalent international resistance accuracy:±(0.5%+2) Capacity: 0~9999.99Ah Energy used: 0~9999.99Wh Cable resistance: 0~9999.99 D+/D- voltage: 0~3.3V D+/D- voltage resolution: 0.001V D+/D- voltage accuracy:±(1.0%+2) Equipment temperature:/ Package size: 91 * 63 * 19mm / 3.6 * 2.5 * 0.7in Package weight: 55g / 1.9ounce Packing list: 1 * Protocol Capacity Test Tool
