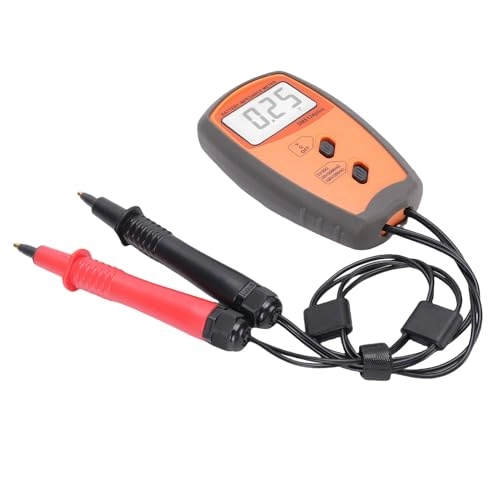

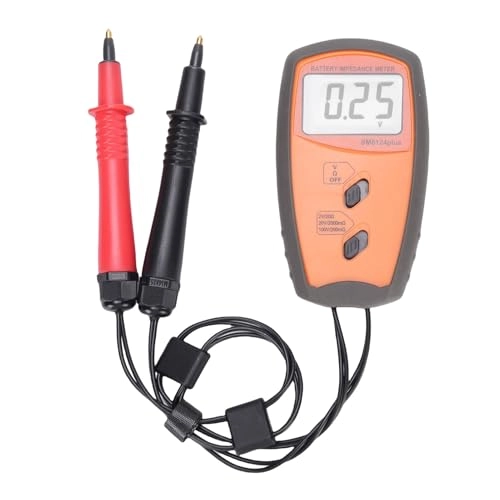

1. Easy to Operate: This battery tester features a compact size and portable design, allowing you to carry it with you. It is simple to operate, offering more convenience to your electrical testing projects
2. LCD Display: This battery voltage tester is equipped with an LCD screen that clearly and intuitively displays voltage and resistive values, making them easy to read and improving your work efficiency
3. Measurement Range: Internal resistive value test range of 1mΩ-199.9mΩ, 200mΩ-1999mΩ, and 2Ω-19.99Ω, voltage test range of 0-1.999V, 2V-19.99V, and 20-100.0V, suitable for a wider range of scenarios
4. ABS Material: The casing of this battery voltage tester is made of ABS, which is sturdy, wear resisting, and has a long service life, making it suitable for more scenarios and environments
5. Wide Application: This voltage and resistive value meter is suitable for testing various types of battery, including automotive battery, electric vehicle battery, and mobile phone battery
Specification:
Item Type: Battery Voltage Tester
Product Material: ABS
Battery: 1 x 6F22 Battery (not included)
Internal Resistive Value Measurement Range: 1mΩ-199.9mΩ, 200mΩ-1999mΩ, 2Ω-19.99Ω
Internal Resistive Value Resolution: (1mΩ-199.9mΩ) 0.1mΩ, (200mΩ-1999mΩ) 1mΩ, (2Ω-19.99Ω) 10mΩ
Voltage Measurement Range: 0-1.999V, 2V-19.99V, 20-100.0V
Voltage Resolution: (0-1.999V) 1mV, (2V-19.99V) 10mV, (20V-100.9V) 100mV
How to Use:
A: Battery Internal Resistive Value Measurement
1. Open the tester battery door and insert a battery (not included), then close the battery door.
2. Switch the power switch to the Ω position, the display shows 1, choose the range 200V/200mΩ, and connect the test pen to the positive and negative terminals of the battery. If the reading shows 1, switch to the 20V/2000mΩ or 2V/20Ω range.
3. The tester displays 1 when it exceeds the range.
4. After the measurement is complete, switch the switch to OFF position to turn off the power.
B: Battery Voltage Measurement
1. Open the tester battery door and insert a battery (not included), then close the battery door.
2. Switch the power switch to the V position, the display shows 0, choose the appropriate range based on the rated voltage of the battery (note: the selected range should be greater than the rated voltage to avoid damaging the tester), and connect the test pen to the positive and negative terminals of the battery.
3. The tester does not display voltage polarity, only the absolute value of the voltage.
4. The tester displays 1 when it exceeds the range. Immediately switch the switch to a higher range. If the voltage is unknown, switch to the 200V/200mΩ range. If the voltage is less than 20V, switch to the 20V/2000mΩ range. If the voltage is less than 2V, switch to the 2V/20Ω range. In voltage testing, the over range state is dangerous to the meter. Please try to avoid it.
5. After the measurement is completed, please switch to the OFF position to turn off the power.
PackageList:
1 x Battery Tester
1 x User Manual
1 x Storage Box
