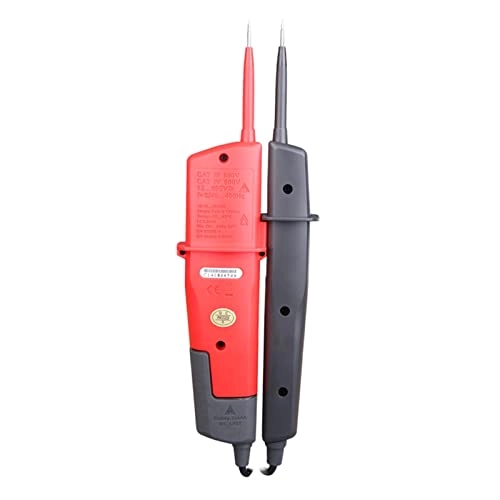

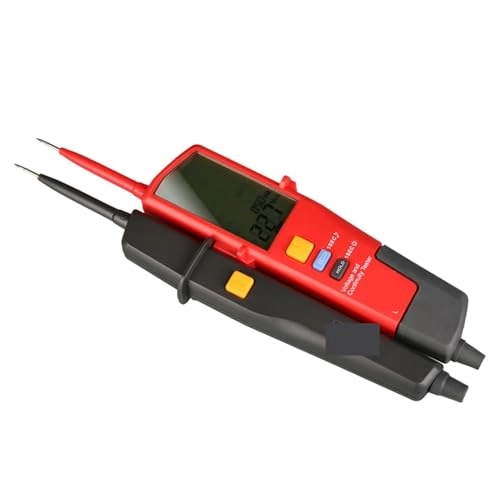

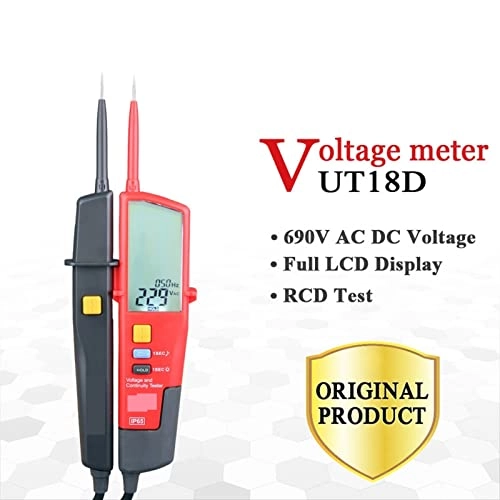

TUBBXA UT18D - 690V LCD Display

Features Auto power off,the conductor to be measured is greater than 12V Phase rotation test Continuity test with buzzer and LED indication RCD:Detecting leaskage protective switch(UT8B/C/D) Low battery indication and over voltage prompt LED prompt(Note:UT18D without this function) Flashlight Test live voltage without batteries(UT18A/B/C) Buzzer and silent mode Auto standby mode(UT18C/D) Auto range/Inspection Voltage,frequuency display(UT18C/D) LCD backlight(UT18D) Data hold(UT18C/D) Polarity indication Specifications Range Best Accuracy Model UT18A UT18B UT18C UT18D LED AC/DC Voltage Indication (V) 12V 8V±2V 8V±2V 8V±2V 8V±2V 24V 18V±2V 18V±2V 18V±2V 18V±2V 50V 38V±4V 38V±4V 38V±4V 38V±4V 120V 92V±6V 92V±6V 92V±6V 92V±6V 230V 174V±8V 174V±8V 174V±8V 174V±8V 400V 320V±10V 320V±10V 320V±10V 320V±10V 690V 550V±15V 550V±15V 550V±15V 550V±15V Phase Rotation Test Operating Voltage: 100V~690V Frequency: 50Hz~ 60Hz Single Lead (L2) Voltage Detection Operating Voltage: 100V~690V Frequency: 50Hz~ 400Hz Continuity Test Resistance: 0~100k Beeper and LED light Indicator RCD Test Operating Voltage: 230V (50Hz-400Hz) Polarity Detection Positive & Negative selfinspection All LED or LCD indicator No power Test Operating Voltage: 50VAC/120VDC~690VDC/AC Features IP65 Auto Range All Range Work Light All Range Low Battery Indication Voltage Range: 2.2V-2.4V Exceed Voltage Voltage Range: 713V-788V Auto standby <;10uA Silent mode All Range LCD Backlight All Range LCD Display (Voltage+Frequency) 6V~690V (40Hz~400Hz) ±(1.5%+5) ±(1.5%+5) General Characteristics Power 1.5V Batteries (R03) × 2 LCD Size UT18C-31×20mm; UT18D-73.5×35.5mm Product Color Red and Grey Product Net Weight UT18A/B=260g,UT18C/D=280g Product Size 272mm×85mm×31mm Standard Individual Packing Blister, English Manual
