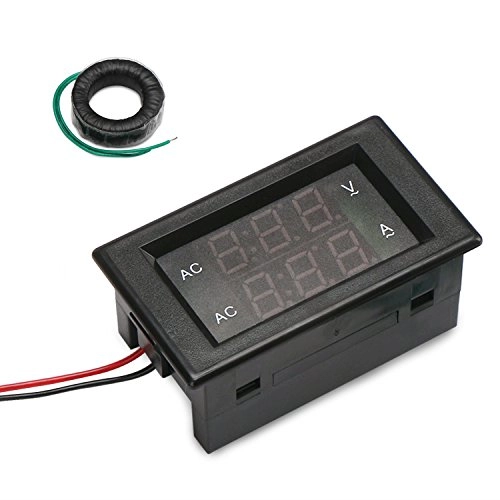

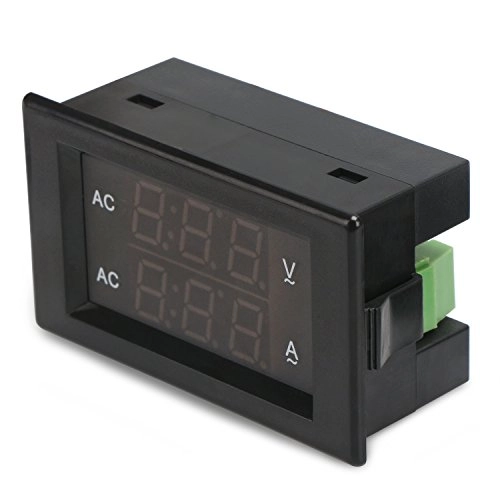

DROK Voltmeter Ammeter Panel - 500V 200A

Description: Display voltage and current on the same screen with different color (red for voltage, green for current). Green terminal should be connected to the CT; the red line and black line should be connected to the circuit being tested. Wrong connection will burn the meter. Note: 1. Please connect all components in your circuit at first, and connecting the 110V 220V power supply must be the final step. Do not touch the circuit and any parts on the back of this product after connecting with power supply to avoid electric shock. 2. Not suitable for high frequency electronic speed control, non city electric sine wave frequency or other occasions with high frequency components, because the product adopts the theory of capacitor step-down. Parameters: Voltage measuring range: AC60-500V Current measurement range: AC0-200A Resolution: 1V 1A CT inner hole: 25mm Measurement accuracy: 1% + 2 digits Display: 0.39 inch LED digital tube display Measuring speed: about 2times per second Exterior dimension: 70 * 40 * 30 mm Installation dimension: 68 * 38mm The power supply line, measuring length: about 150mm Transformer lead length: about 100mm Operating temperature: -10 ~ +50 Working humidity: 10 ~ 80% (no condensation) Working pressure: 80 ~ 106kPa Sun exposure: no direct exposure Package includes: 1x Digital Volt Ampere Meter + 1x Current Transfer (CT)
