The instrument is a portable and professional measuring instrument with a LCD digital display and a backlight, making it easy for users to read. The range switch is easy to measure with one hand operation, and has overload protection and low battery indication. Whether used by professionals, factories, schools, enthusiasts, or households, it is an ideal multifunctional instrument.
Specifications:
Color: Black / Red (Optional)

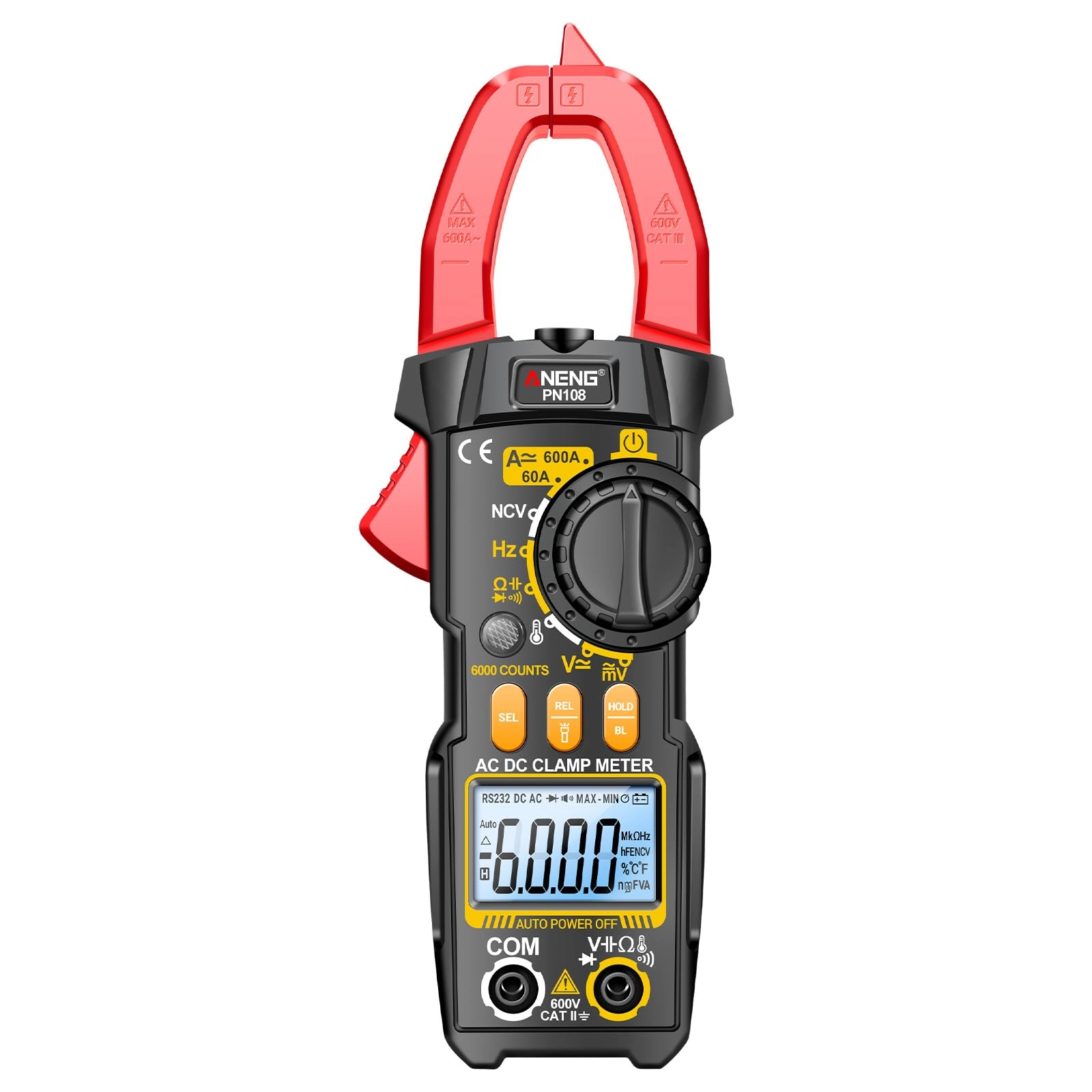

Model: PN108
Material: ABS
AC Voltage: 0mV-600V, 0.001V-0.1V, ±(1.2%+5)
DC Voltage: 0mV-600V, 0.001V-0.1V, ±(1.0%+5)
AC t: 0A-600A, 0.001A-1.0A, ±(4.0%+20)

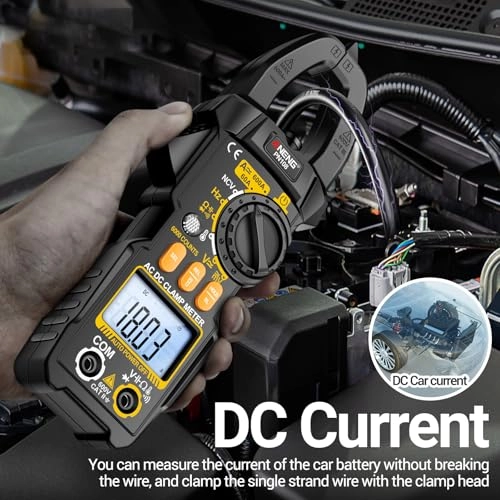

DC t: 0A-600A, 0.01A-1A, ±(2.0%+8)
Resistance: 0Ω-20MΩ, 0.1Ω-0.1MΩ, ±(1.2%+3)
Capacitance: 0nF-99.99mF, 0.001nF-0.01mF, ±(5.0%+5)
Hz: 0Hz-99.99kHz, 0.001Hz-0.01kHz, ±(0.3%+5)

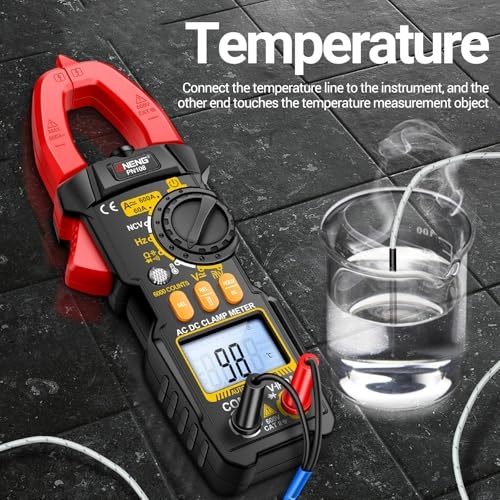

Temperature: 0℃-1000℃, 1℃, ±(1.9%+5)
0℉-1832℉, 1℉, ±(1.9%+6)
NCV: √
Diode: √
Buzzer: √
HOLD Data Retention: √
Screen Backlight: √
Flashlight Lighting: √
Low Battery Indication: √
Max Count: 6000 Counts
Auto Power Off: 15 if there is no operation, it will automatically shutdown
Battery: 2 * AAA Battery (Not included)
Item Size: 195 * 69.5 * 35mm / 7.67 * 2.73 * 1.37in
Item Weight: 174g / 6.13oz
Package Weight: 361g / 12.73oz
Package Size: 22 * 11.2 * 5cm / 8.66 * 4.41 * 1.97in
Package List:
1 * Clamp Meter
1 * Temperature Line
1 * Test Pen Line
1 * Storage Bag
1 * User Manual (English)
