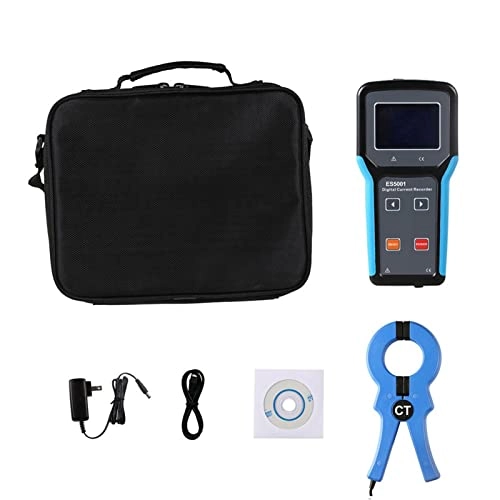

TISTIK ES5001 - 1000A CAT Ⅱ(600V) Φ50mm

Feature: 1、High precision ---- resolution 0.1mA、 accuracy 0.5% 2、Powerful function ---- 4G SD card 、 9999 groups data storage 3、Clock function 4、Large capacity rechargeable battery 5、Separate design readings are convenient Specification: Range：0.0mA-1000A Jaw size：Φ50mm Resolution：0.1mA Accuracy：±0.5%FS Function：AC current measurement record, online monitoring record, line maintenance, fault finding Power：DC6V Nickel-metal hydride rechargeable battery 1.2V×5 Test method：Clamp CT, mean current detection Display mode：LCD：128dots×64dots Frequency：50/60Hz Host size：W/H/T: 100mm×204mm×35mm Current clamp size：W/H/T: 101mm×214mm×27mm Weight：Host：409g（including battery） charger：83.5g Current clamp：260g LCD size：Display area：62mm×44mm Sampling rate：2 times/sec Storage medium：TF card Data storage：9999 groups（Losing power or replacing the battery will not lose data） time settings：Set the interval within 1 to 60 minutes, 0 minutes means not automatically stored Record time：Continuous operation for 2 days in power saving mode Real-time clock：Have Clock setting function：Have Data interface：Standard protocol, USB transmission Line voltage：Line test below AC600V Overflow display：Over-range overflow function: "OL" symbol display battery voltage：When the battery voltage drops to 5.2V, the battery voltage is low and the symbol is displayed, reminding you to charge. The measured data is also accurate. rated power：15mA in power saving mode, up to 25mA Lead length：Standard 2 meters Working temperature and humidity：-10℃～40℃；below 80%rh Storage temperature and humidity：-10℃～60℃；below 70%rh Insulation resistance：20MΩ or more,1000V Suitable for Safety Regulations：IEC1010-1、IEC1010-2-032、 pollution grade 2、CAT Ⅲ(600V) IEC61326(EMC standard)
