[>99.5% Accuracy]:Thanks to KW208's powerful STM-32 chip, it provides more than 99.5% precise testing reports within milliseconds(testing results refer to Midtronics), greatly improved the testing speed compared to other battery testers.
[Useful Feedback Results ]Provide reliable results within seconds, accurancy up to 99.9%; display suggestion according to the testing results (Good, Recharge, Replace), detects bad cells directly.
[Professional]:Suitable for automobile factory, garage, auto battery manufacturer, and DIY enthusiasts, etc.
Functions :
1.System voltage 12 Volts and Voltage test
2.Test Result Good, Recharge or Replace
3.Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal resistance value (m) and Life in percentage (%)
4.Cranking system and Charging system
5.Record and re-play battery data.
6.Battery test, cranking test, charging test and other additional functions.
7.The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,DIN and IEC are supported
KW208 Support all 12V kind Batteries
Car, SUV, boat, light Pickup trucks, motorcycle
Battery test, cranking test, charging test and other additional functions

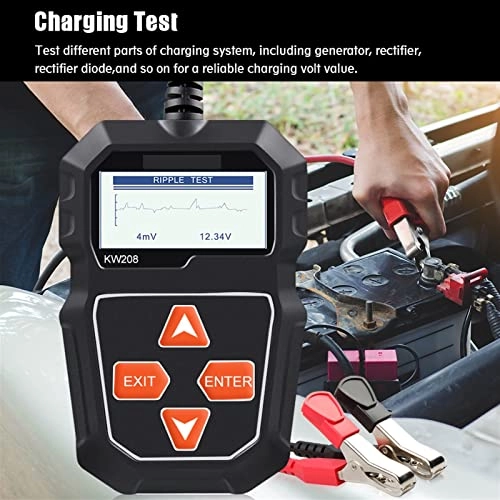

Charging Test
Test different parts of charging system, including generator, rectifier, rectifier diode and son on for a reliable charging volt value.
Cranking Test
Analyzes the actual cranking voltage and the cranking time to help you quickly figure out the whole state of the starting system.
The amplifier circuit adopts high precision chip and is calibrated by profession instrument.
Thanks to KW208's powerful STM-32 chip, >99.5% Accuracy. It provides more than 99.5% precise testing reports within milliseconds(testing results refer to Midtronics), greatly improved the testing speed compared to other battery testers.
Multi-language Support
Support 8 Languages : English, German, French, Dutch, Russian, Spanish, Italian ,Portuguese
KW208 Car Battery Tester Application
Use a test a wide range of 12v batteries(Starting{SLI},Deep Cycled and Marine) of Wet(Flooded),VRLA or Maintenance Free (MF),Sealed Maintenance Free (SMF), Absorption Glass Mat(AGM),EFB and GEL Cell.
KW208 support measure standards:
Use a test a wide range of 12v batteries(Starting{SLI},Deep Cycled and Marine) of Wet(Flooded),VRLA or Maintenance Free (MF),Sealed Maintenance Free (SMF), Absorption Glass Mat(AGM),EFB and GEL Cell.
1.CCA:100-2000
2.BCI:100-2000
3.CA:100-2000
4.MCA:100-2000
5.JIS:26A17-24SH52
6.DIN:100-1400
7.IEC:100-1400
8.EN:100-2000
9SAE:100-2000
Three Test Operation Steps of KW208 Car Battery Tester
Step 1. Connect the 12V battery, red clips to positive pole and black clips to negative pole.
Step 2. Battery Test: Firstly select the type of battery to be tested, then the test criteria and the test range, and then you have the results within few seconds.
Step 3. Cranking Test: After selecting the cranking test function, follow the prompts to start the engine. Test completed.
Step 4. Charging Test: After entering the charging test function, follow the prompt to increase the speed to 2500 RPM for 5 seconds, then press OK. Test completed.
Packing List
1*KW208 Battery Tester
1*Instruction Manual
1*Safe packing box
1*Oxford cloth waterproof tool bag(Only if you choose a package)
