Features:
BM580 Battery Tester adopts the state-of-art conductance testing technology in the word to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery,healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintence personnel to find the problem quickly and accurately.
If your car battery suddenly runs out, and you don't know the cause of this problem. BM580 is a full-style battery analyzer, which can be used by both beginners and professals.
The battery tester can provide fast and accurate test results within a minute. Check the battery charging status, the battery health status for you.

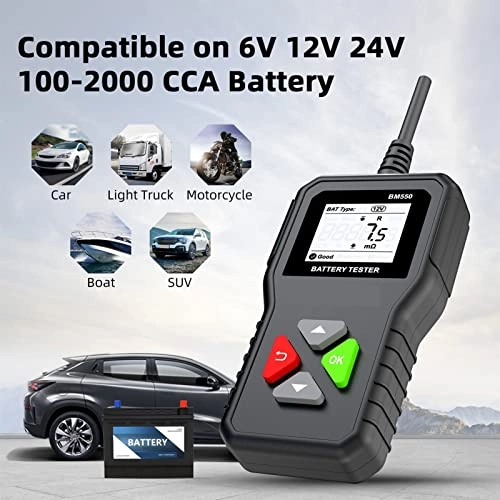

Works on 6 V/12 V battery, CCA100-2000, 2 Ah-220 Ah
notifies the users to replace battery in advance when the battery tting ad.
1. Support test wide ran of 6V/12V batteries.
2. Simple and easy to operate.
3. Test batteries IN/ OUT of the vehicle.
4. Accurate results in milliseconds.
5. Battery life analysis, health percenta.

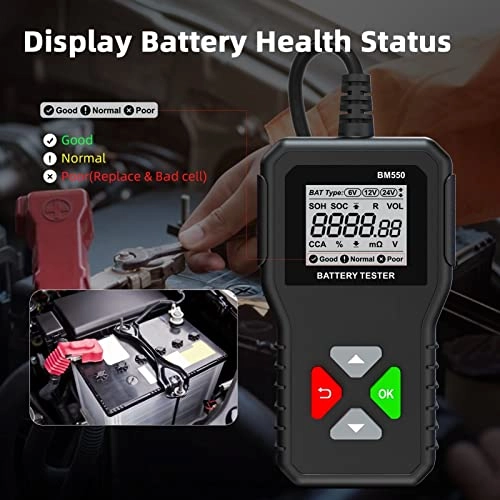

6. Analysis Result: Good, Rechar or Replace.
7. Lifetime free update and upgrade.

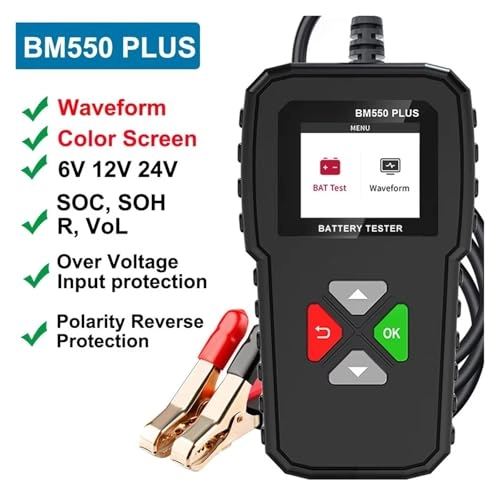

Quadruple Protect
1.Overvolat Input ProtectBelow 20V, it can be tested at will without dama the bad internal circuit board has a short circuit.
2.Reversible AccessThe positive and negative poles are connected incorrectly, and the device can be normal start, the device and battery are not damad.
3.Poor Contact PromptWhen the test clip does not clamp the positive and negative electrodes of the batter, the display will prompt.
4.Built-in Buzzer to RemindDuring the test, when the battery is in poor condit, the device will give an ble reminder.
Four functs can be switched at will to help you quickly detect the battery status of your car.
1.Battery Test Life / / CCA / Internal resistance
2.Start The Test/Cranking TestBattery dischar perfoce
3.Load Test Engine perfoce
4.Charging Test Engine charging system
Regardless Of Positive and Negative,even if the positive and negative polarity is wrong, the device can start normally.
Waveform Monitoring
Monitor the battery status in real time, understand the current floating size of the battery , and have automatic stora and playback functs.

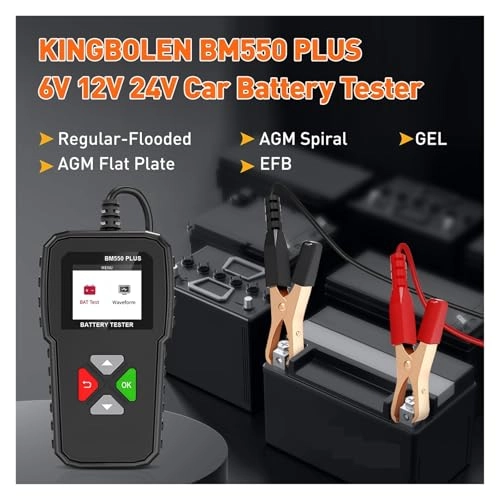

Support Multiple Battery Types
It supports a variety of battery standards around the world, can test almost all car start-up lead-acid batteries, and has a wide ran of applicats.
1.EPS lead-acid battery;
2.Car start battery;
3. / EFB start-stop battery ;
4.Electric vehicle battery ;
5.UPS lead-acid battery ;
6. battery
Note: UPS battery/electric vehicle battery/motorcycle battery can only measure internal resistance/power/, not battery life.
Low Frequency Constant Current Test
Give the battery a fixed frequency and current test signal, sample, rectify, and filter its , and then calculate the internal resistance of the battery.
Ten Major Test Standards:GB (2AH - 220AH )
ometry supports all current common battery standards, and a wide ran of tests can meet your various needs.
1.CCA: Cold Cranking Amps (100 - 2000 )
2.BCI: Battery Council Internatal (100 - 2000 )
3.CA: Cranking Amps (100 - 2000 )
4.MCA: Marine Cranking Amps (100 - 2000 )
5.JIS: Japan Industrial Standard (26A17 - 245H52 )
6.DIN: y Auto Industry Committee (100 - 1400 )
7.IEC: Internal Electrical Technical Commiss (100 - 1400 )
8.EN: European Automoblie Industry Associat (100 - 2000 )
9.SAE: Society of Automotive Engineers (100 - 2000 )
10.GB:China Naal Standard (2AH - 220AH ) Important breakthrough
Ripple Test
Test the charging system of the engine, the smaller the waveform fluctuat, the more stable the , indicating that the battery is in good condit.
Note: If the test result is normal, the battery is chard normally. If the reading is greater than 15.0V , please check the regulator; if the reading is less than 13.3V, Please check the connect points, wires and engine.

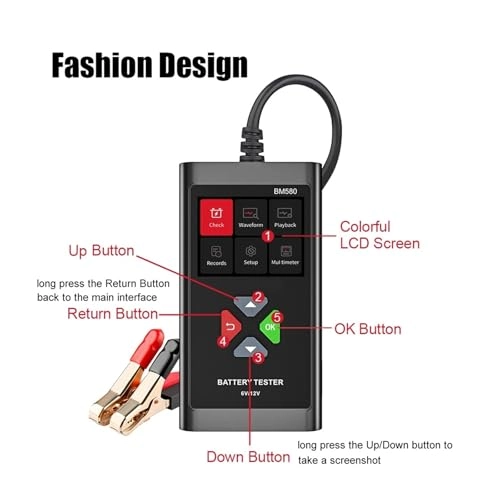

Screenshot Funct
