Hikvision DS-2CD1643G2-LIZ(S)U

User manual

mmo_110643811_1719779822_8419_18965.pdf

PDF• 11.1 MB

QSG

mmo_122576163_1726760826_6964_2348271.pdf

Images

Reviews

Join our newsletter

Be the first to know about new arrivals, sales, and exclusive picks

Hikvision DS-2CD1643G2-LIZ(S)U

Best offer

AED

474³³

This price may no longer be valid

Key Features

Camera tilt control: Yes
Detect distance: 63m
Observe distance: 25m
Recognize distance: 12m
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 50.6 - 16.4°°
Lens viewing angle, diagonal: 114.7 - 33.5°°
Power consumption (Power over Ethernet (PoE)): 12.9W
Identify distance: 6m
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Type: IP security camera
Active tampering alarm: Yes

Offers (2)

2 offers

From

AED

474

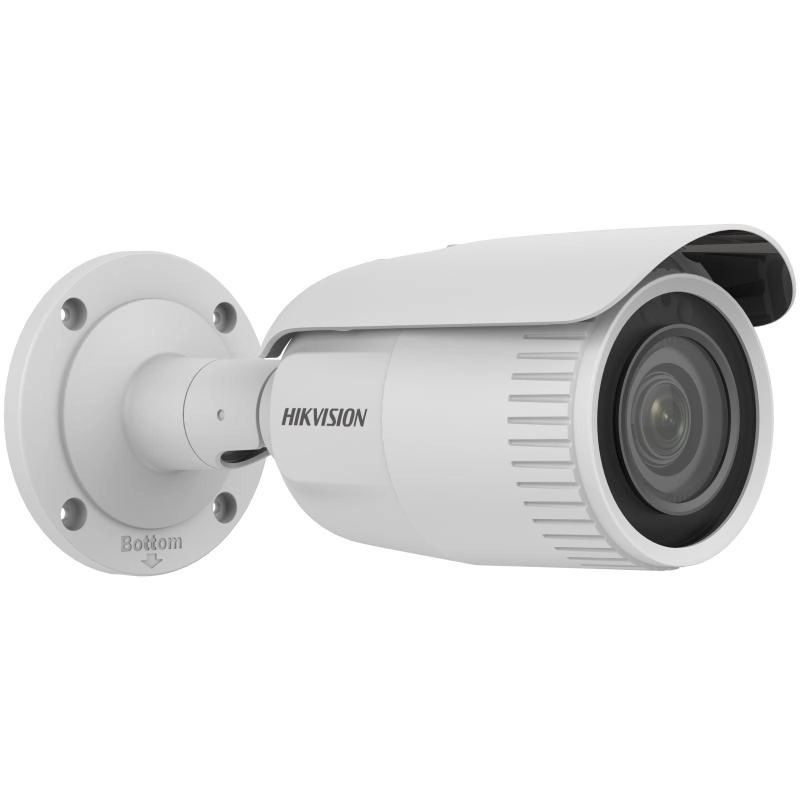

Hikvision DS-2CD1643G2-LIZ(S) U 4 MP Smart Hybrid Light Varifocal Bullet Network Camera, 1/3"Progressive Scan CMOS, Motorized Lens, Up to 50 m, Built-in mic,H.265+,Human &Vehicle Detection,IP67

Price expired

This price may no longer be valid

AED

474³³

Price History

Loading price history...

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Vandal proof, Water resistant

Voice codecs

G.711, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

512 GB

Password protection

✓

Video motion detection

✓

Security algorithms

TLS

Languages support

Multi

Number of languages

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Sample rate

48 kHz

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520, 320 x 240, 640 x 360, 640 x 480 (VGA)

Recognize distance (wide)

12.80 m

Recognize distance (tele)

39.60 m

Detect distance

63 m

Packaging data

Package weight

1120 g

Package height

141 mm

Package depth

137 mm

Package width

315 mm

Weight & dimensions

Weight

745 g

Height

97.60 mm

Diameter

105 mm

Length

244.40 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection

Power

Power consumption (max)

11 W

DC output current

0.90 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

12.90 W

Performance

Camera pan control

✓

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK10

Housing material

Aluminium, Metal, Plastic

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling, Ceiling/Wall, Wall

Form factor

Bullet

Built-in light

✓

Packaging content

Manual

✓

Network

Client interoperability

Hik-Connect, iVMS-4200

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3af

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RCTP, RTCP, RTP, RTSP, SMTP, SNMP, SSL/TLS, TCP/IP, UDP, UPnP, WebSocket, WebSockets

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Headphone outputs

Microphone in

✓

Alarm input channels

Alarm output channels

Terminal block port

✓

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Sustainability compliance

✓

Certification

Anti-flicker

✓

Compliance certificates

BIS, CB, CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Industry Canada (IC), Low Voltage Directive (LVD), RCM, REACH, RoHS, UL, WEEE

Audio

Built-in speaker(s)

✓

Lens system

Maximum aperture number

1.60

Number of lenses

Fixed focal length

2.80 mm

Detect distance (wide)

64 m

Detect distance (tele)

198 m

Observe distance (wide)

25.40 m

Observe distance (tele)

78.60 m

Identify distance (wide)

6.40 m

Identify distance (tele)

19.80 m

Identify distance

6 m

Noise reduction technology

3D noise reduction

Recognize distance

12 m

Observe distance

25 m

Video

Video compression formats

H.264, H.265, M-JPEG

Video formats supported

H.264, H.265

Frame rate

25 fps

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Video recording

✓

Privacy masking

✓

Supported video modes

1080p, 1440p, 360p, 480p, 720p

Security

IP address filtering

✓

Privacy protection

✓

Audit log

✓

Heartbeat

✓

Password reset via email

✓

Pixel counter

✓

Digest authentication

✓

HTTPS encryption

✓

Focusing

Focus

Motorized

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Focal length range

2.8 - 12 mm

Bit rate

32 Kbps - 8 Mbps

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

95.9 - 29.2°

Progressive scan

✓

Wide Dynamic Range (WDR)

✓

Auto focus

✓

Intelligent Video Surveillance (IVS) system features

Face detection

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

114.7 - 33.5°

Lens viewing angle, vertical

50.6 - 16.4°

Camera tilt control

✓

Amplifier

Sample rates

8 - 16 kHz

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

2560 x 1440 pixels

Dynamic range

120 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

IR/White

Night vision distance

50 m

Infra-red wavelength

850 nm

Product Details

Files

Product Brochure

mmo_110643811_1719779800_861_25912.pdf

PDF• 865.7 KB

Quick Start Guide

mmo_110643811_1719779811_3319_4979.pdf

User manual

mmo_110643811_1719779822_8419_18965.pdf

PDF• 11.1 MB

QSG

mmo_122576163_1726760826_6964_2348271.pdf

Images

Reviews
