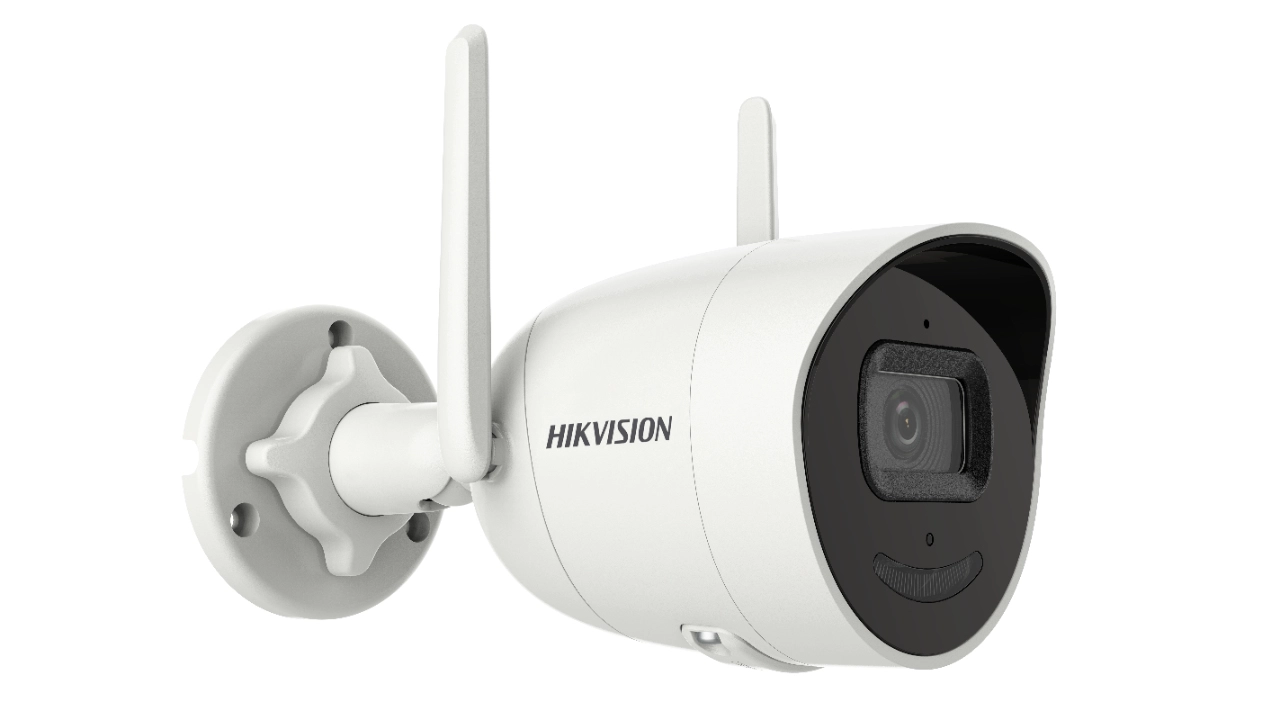

Hikvision DS-2CV2041G2-IDW

Name: Hikvision DS-2CV2041G2-IDW
Brand: Hikvision
SKU: 357135
Availability: InStock

Best offer

AED

399⁰⁰

Key Features

Camera tilt control: Yes
Detect distance: 63m
Observe distance: 25m
Recognize distance: 12m
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 53°°
Lens viewing angle, diagonal: 111°°
Identify distance: 6m
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Type: IP security camera
Mirror: Yes
Motion sensor: Yes

Specifications

Features

Web browser

✓

Antennas quantity

Protection features

Dust resistant, Waterproof

Voice codecs

AAC, G.711, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC-LD, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

256 GB

Password protection

✓

Video motion detection

✓

Security algorithms

128-bit WEP, 64-bit WEP, EAP-LEAP, EAP-MD5, EAP-TLS, WPA-EAP, WPA-PSK, WPA2-EAP

Number of languages

Connectivity technology

Wired, Wired & Wireless

Product colour

White

Video streaming

✓

Digital watermark

✓

Type

IP security camera

Mirror

✓

Motion sensor

✓

Sample rate

16 kHz

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 640 x 360, 640 x 480 (VGA)

Detect distance

63 m

Packaging data

Package weight

7700 g

Package height

125 mm

Package depth

125 mm

Package width

260 mm

Weight & dimensions

Weight

450 g

Height

96.10 mm

Depth

89.10 mm

Width

73 mm

Diameter

126 mm

Length

175.60 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power

Power consumption (max)

6 W

DC output current

0.50 A

Power source type

DC output voltage

Performance

Camera pan control

✓

Other features

Browser supported

Chrome 57.0+, Firefox 52.0, IE 10+

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP66

Housing material

Metal, Plastic, Polycarbonate (PC)

Placement supported

Indoor, Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling, Ceiling/Wall

Form factor

Bullet

Computer system

Antenna type

External

Packaging content

Manual

✓

Network

Client interoperability

Hik-Connect, iVMS-4200

Wi-Fi

✓

Bluetooth

✗

Networking standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, PPPoE, QoS, R TCP, RTCP, RTP, RTSP, SMTP, SNMP, SSL/TLS, TCP/IP, UDP, UPnP

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Channel bandwidth

40 MHz

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Sustainability compliance

✓

Certification

CE-RED (EN 301489-1 V2.1.1(BT 2.4G), EN 300328 V2.1.1(BT 2.4G), EN 300 328 V2.1.1(BT 2.4G), EN 300 328 V2.1.1(BT or 2.4G), EN 301 489-17 V3.1.1(BT 2.4G), EN 301 489-17 V3.1.1(BT or 2.4G), EN 301489-17 V3.1.1(BT 2.4G), EN 50130-4:2011 +A1:2014, EN 50130-4:2011 +A1:2014), EN 55032:2015, EN 60950-1:2005 + Am 1:2009 + Am 2:2013), EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62311:2008(BT 2.4G), EN 62311:2008(BT or 2.4G), EN 62311:2008(BT or 2.4G)), FCC ID (FCC 15.247(BT or 2.4G)), IC ID (RSS-247(BT 2.4G)), ICASA (EN 301 489-1 V2.1.1(BT or 2.4G), KC (KN 32:2015, KN 301489-1, KN 301489-17), KN 35: 2015, WPC (EN 301 489-1 V2.1.1(BT 2.4G)

Anti-flicker

✓

Compliance certificates

CB, CE, Federal Communications Commission (FCC), KC, REACH, RoHS, UL, WEEE

Audio

Built-in speaker(s)

✓

Lens system

Lens mount interface

M12

Maximum aperture number

1.60

Iris

✓

Number of lenses

Fixed focal length

2.80 mm

Identify distance

6 m

Noise reduction technology

3D noise reduction

Recognize distance

12 m

Observe distance

25 m

Video

Video compression formats

H.264, H.265

Frame rate

30 fps

Image quality adjustment

Brightness, Contrast, DNR, Saturation, Sharpness

Privacy masking

✓

Security

IP address filtering

✓

Privacy protection

✓

Audit log

✓

Heartbeat

✓

Network access storage (NAS)

✓

Automatic Network Replenishment (ANR)

✓

Digest authentication

✓

HTTPS encryption

✓

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Field of view (FOV) angle

97 °

Camera shutter speed

1/3 - 1/100000 s

Maximum operating distance

120 m

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Bit rate

32 Kbps - 8 Mbps

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

91°

Progressive scan

✓

Wide Dynamic Range (WDR)

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

111°

Lens viewing angle, vertical

53°

Camera tilt control

✓

Amplifier

Sample rates

8 - 16 kHz

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

2560 x 1440 pixels

Dynamic range

120 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

30 m

Infra-red wavelength

850 nm

Product Details

Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond. By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.

Files

QSG

mmo_125236146_1737702977_8008_589833.pdf

PDF• 578.1 KB

Product Brochure

mmo_125236146_1737702977_8402_589833.pdf

PDF• 1021 KB

User manual

mmo_125236146_1737702977_8654_589833.pdf

PDF• 11.1 MB
