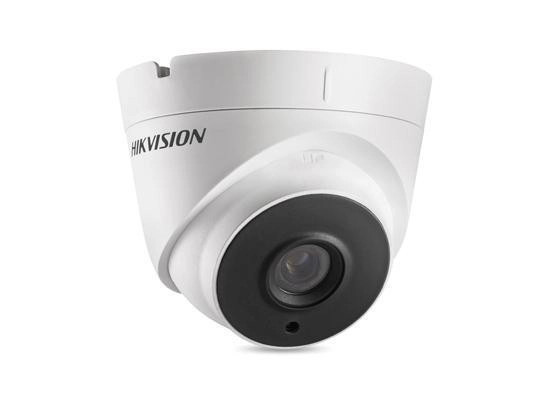

Hikvision DS-2CE56H5T-IT1

Name: Hikvision DS-2CE56H5T-IT1
Brand: Hikvision
SKU: 357124
Availability: InStock

Best offer

AED

199⁰⁰

Key Features

Camera tilt control: Yes
Camera pan control: Yes
Infrared (IR) cut-off filter: Yes
Type: CCTV security camera
Mirror: Yes
DC output voltage: 12
Angle of rotation: 360°
Built-in HDD: No
Form factor: Dome
Ethernet LAN: No
Composite video out: 1
Number of lenses: 1
Lens mount interface: M12
Fixed focal length: 2.8mm
Smart IR: Yes

Specifications

Features

Weatherproof

✓

Number of sensors

Card reader integrated

✗

Languages support

Simplified Chinese

Number of languages

Connectivity technology

Wired

Product colour

Grey

Type

CCTV security camera

Mirror

✓

Weight & dimensions

Weight

340 g

Height

68.30 mm

Depth

68.30 mm

Width

82.60 mm

Diameter

350 mm

Power

Power consumption (max)

5 W

Power over Ethernet (PoE)

✗

Power source type

DC output voltage

Performance

Camera pan control

✓

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Built-in HDD

✗

Design

International Protection (IP) code

IP67

Housing material

Metal, Plastic

Placement supported

Indoor/Outdoor, Outdoor

Mounting type

Ceiling/Wall

Form factor

Dome

Network

Wi-Fi

✗

Bluetooth

✗

Ethernet LAN

✗

Ports & interfaces

Interface

BNC

BNC output ports

Composite video out

Operational conditions

Operating relative humidity (H-H)

0 - 90 %

Audio

Automatic gain control

✓

Lens system

Number of lenses

Lens mount interface

M12

Fixed focal length

2.80 mm

Video

Frame rate

30 fps

Smart IR

✓

Image quality adjustment

Brightness, Mirror, Sharpness

Supported video modes

1080p

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Camera shutter speed

1//50000 - 1/25 s

Analog signal format system

PAL

Total megapixels

5 MP

Number of cameras

Sensor type

CMOS

Lens viewing angle, horizontal

70.1°

White balance

Auto

Digital Wide Dynamic Range (DWDR)

✓

Camera tilt control

✓

Pan-tilt unit

Tilt angle range

0 - 75 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

2560 x 1944 pixels

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

20 m

Product Details

- 5 Megapixel high-performance CMOS - Analog HD output, up to 5MP resolution - 2.8-12mm motorized vari-focal lens - True Day/Night - OSD menu, DNR, Smart IR - EXIR technology, up to 20m IR distance - IP67 weatherproof - Up the Coax(HIKVISION-C)

Files

Product Brochure

mmo_36569454_1511511462_6973_3526.pdf

PDF• 693.1 KB

User manual

mmo_36569454_1511511472_6106_29267.pdf

PDF• 1.6 MB
