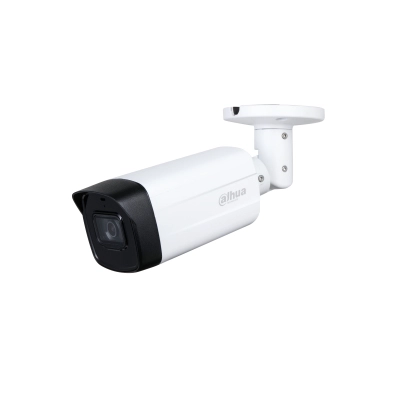

Dahua Technology HAC-HFW1500TP

Name: Dahua Technology HAC-HFW1500TP
Brand: Dahua Technology
SKU: 356928
Availability: InStock

Best offer

AED

135⁰⁰

This price may no longer be valid

Key Features

Signal-to-Noise Ratio (SNR) (panoramic camera): 65dB
Camera tilt control: Yes
Thermal frame rate (PAL): 960 HzHz
Thermal frame rate (NTSC): 960 HzHz
Detect distance: 80m
Observe distance: 32m
Recognize distance: 16m
Camera pan control: Yes
Noise reduction technology: 2D noise reduction
Lens viewing angle, vertical: 55°°
Lens viewing angle, diagonal: 130°°
Identify distance: 8m
Infrared (IR) cut-off filter: Yes
Fixed focus: Yes
Type: CCTV security camera

Specifications

Features

Protection features

Dust resistant, Water resistant, Waterproof

Weatherproof

✓

Number of sensors

Built-in microphone

✓

Connectivity technology

Wired

Product colour

White

Fixed focus

✓

Type

CCTV security camera

Mirror

✓

NTSC resolutions

2880 × 1620

PAL resolutions

2880 × 1620

Flip & mirror

✓

Supported graphics resolutions

1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620, 960 x 480, 960 x 576

Recognize distance (wide)

16 m

Recognize distance (tele)

30.10 m

Detect distance

80 m

Packaging data

Package weight

460 g

Weight & dimensions

Weight

270 g

Height

76.20 mm

Depth

80.20 mm

Width

198.90 mm

Power

Power consumption (typical)

5.20 W

Power consumption (max)

9.80 W

Power source type

DC output voltage

Performance

Number of effective pixels (H x V)

2880 x 1620 pixels

Camera pan control

✓

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Built-in HDD

✗

Design

International Protection (IP) code

IP67

Housing material

Aluminium, Metal, Plastic

Placement supported

Indoor, Indoor/Outdoor, Outdoor

Mounting type

Ceiling/Wall, Ceiling/Wall/Pole, Wall

Form factor

Bullet

Built-in light

✓

Network

Wi-Fi

✗

Bluetooth

✗

Ethernet LAN

✗

Ports & interfaces

DC-in jack

✓

Microphone in

✓

BNC output ports

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Sustainability compliance

✓

Certification

ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1), ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1), CE (EN 55032:2015, CE (EN55032, CE (EN55032:2015, EN 50130-4:2011+A1:2014, EN 55024:2010+A1:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC 15 subpartB, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, EN 62368-1:2014+A11:2017)FCC (CFR 47 FCC Part 15 subpartB, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, EN50130-4:2011+A1:2014, EN55024, EN55024:2010+A1:2015

Compliance certificates

Audio

Audio system

2-way

Lens system

Maximum aperture number

1.60

Number of lenses

Fixed focal length

2.80 mm

Detect distance (wide)

80 m

Detect distance (tele)

150.40 m

Observe distance (wide)

32 m

Observe distance (tele)

60.20 m

Identify distance (wide)

8 m

Identify distance (tele)

15 m

Identify distance

8 m

Noise reduction technology

2D noise reduction

Recognize distance

16 m

Observe distance

32 m

Video

Frame rate

30 fps

Smart IR

✓

Privacy masking

✓

Supported video modes

1080p

Thermal frame rate (PAL)

960 Hz

Thermal frame rate (NTSC)

960 Hz

Security

Privacy protection

✓

Focusing

Closest focusing distance

0.50 m

Camera

Day/night mode

✓

Lens diameter

3.60 mm

Gain control type

Auto/Manual

Back Light Compensation (BLC)

✓

Field of view (FOV) angle

130 °

Camera shutter speed

1/100000 s

Maximum operating distance

80 m

Normal focusing range

1.6 m

Total megapixels

5 MP

Number of cameras

Zoom capability

✗

Focal length range

2.7 - 12 mm

Analog signal format system

PAL

Signal-to-Noise Ratio (SNR)

65 dB

Sensor type

CIS, CMOS

Lens viewing angle, horizontal

77.5°

Progressive scan

✓

White balance

Auto

Wide Dynamic Range (WDR)

✓

Auto focus

✗

Highlight Compensation (HLC)

✓

Digital Wide Dynamic Range (DWDR)

✓

Lens viewing angle, diagonal

130°

Lens viewing angle, vertical

55°

Camera tilt control

✓

Shutter

Camera shutter type

Electronic

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

2880 x 1620 pixels

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

Number of illumination LEDs

Night vision

✓

LED type

Night vision distance

60 m

Panoramic camera

Number of Privacy masking areas (panoramic camera)

Signal-to-Noise Ratio (SNR) (panoramic camera)

65 dB

Product Details

Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-per-formance makes the camera an ideal choice for SMB solutions.

Files

User manual

mmo_107601098_1674734978_1988_20601.pdf

PDF• 2 MB

Quick Installation Guide

mmo_107601098_1674735531_543_2661.pdf

PDF• 2.9 MB

Product Brochure

mmo_87313021_1606255588_3745_29801.pdf

PDF• 781 KB

Installation Guide

mmo_91125617_1624543318_0406_51269.pdf

PDF• 2.9 MB
