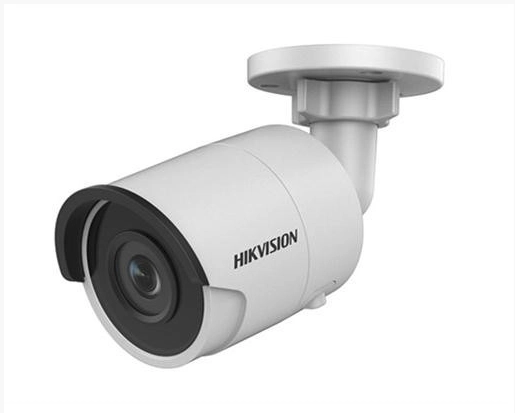

Hikvision DS-2CD2085FWD-I

Name: Hikvision DS-2CD2085FWD-I
Brand: Hikvision
SKU: 356271
Availability: InStock

Best offer

AED

551⁹⁸

This price may no longer be valid

Key Features

Noise reduction technology: 3D noise reduction
Power consumption (Power over Ethernet (PoE)): 7.5W
Infrared (IR) cut-off filter: Yes
Digital watermark: Yes
Type: IP security camera
Active tampering alarm: Yes
Mirror: Yes
Sample rate: 48kHz
Flip & mirror: Yes
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440, 2560 x 1920, 352 x 240, 352 x 288, 3840 x 2160, 640 x 360
Behavior analysis: Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection
DC output voltage: 12
Angle of rotation: 360°
Built-in HDD: No
Form factor: Bullet

Specifications

Features

Web browser

✓

Voice codecs

G.711, G.722.1, G.726, MP2L2, PCM

Weatherproof

✓

Number of sensors

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

128 GB

Password protection type

User

Password protection

✓

Video motion detection

✓

Security algorithms

802.1x RADIUS, HTTPS, SNMP

Number of languages

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Sample rate

48 kHz

Flip & mirror

✓

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440, 2560 x 1920, 352 x 240, 352 x 288, 3840 x 2160, 640 x 360

Packaging data

Package height

118 mm

Package depth

121 mm

Package width

216 mm

Weight & dimensions

Weight

410 g

Diameter

70 mm

Length

155 mm

Management features

Behavior analysis

Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection

Power

Power consumption (max)

7 W

Power over Ethernet (PoE)

✓

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

7.50 W

System requirements

Windows operating systems supported

Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Minimum processor

2.0 GHz+

Minimum RAM

1024 MB

Other features

Browser supported

Apple Safari 5.02+, Google Chrome 18 +, Internet Explorer 8.0+, Mozilla Firefox 5.0+

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC, SDHC, SDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK10

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling/Wall, Wall

Form factor

Bullet

Packaging content

Manual

✓

Network

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, SSL/TLS, TCP/IP, UDP, UPnP

Cabling technology

10/100Base-T(X)

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Ports & interfaces

Interface

RJ-45

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Technical details

Certification

CE, FCC

Removable IR-cut filter

✓

Anti-flicker

✓

Compliance certificates

RoHS

Audio

Automatic gain control

✓

Lens system

Lens mount interface

M12

Minimum aperture number

1.20

Maximum aperture number

Iris

✓

Fixed focal length

2.80 mm

Noise reduction technology

3D noise reduction

Video

Video compression formats

H.264, H.265, H.265 Pro, M-JPEG

Video formats supported

H.264, H.265, M-JPEG

Frame rate

20 fps

Image quality adjustment

Brightness, Contrast, DNR, Saturation, Sharpness

Privacy masking

✓

Supported video modes

1080p, 1440p, 240p, 360p, 720p

Security

IP address filtering

✓

Heartbeat

✓

HTTPS encryption

✓

Camera

Day/night mode

✓

Back Light Compensation (BLC)

✓

Field of view (FOV) angle

81 °

Camera shutter speed

1/100000 - 1/3 s

3D NR (Noise Reduction)

✓

Region of Interest (ROI) encoding

✓

Total megapixels

8 MP

Number of cameras

PTZ control

✓

Bit rate

32Kbps~16Mbps

Analog signal format system

PAL

Sensor type

CMOS

Lens viewing angle, horizontal

79°

Progressive scan

✓

Full HD

✓

Wide Dynamic Range (WDR)

✓

Auto focus

✓

Intelligent Video Surveillance (IVS) system features

Face detection, Intrusion

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Digital Wide Dynamic Range (DWDR)

✓

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

3840 x 2160 pixels

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

30 m

Infra-red wavelength

850 nm

Product Details

- Up to 8 megapixel high resolution - Max. 3840 × 2160@20fps - 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional - H.265, H.265+, H.264+, H.264 - 120dB Wide Dynamic Range - 3D Digital Noise Reduction - DC12V & PoE (802.3af) - IR range: up to 30 m - Support on-board storage, up to 128 GB - IP67

Files

Product Brochure

mmo_36546274_1512471406_3512_9843.pdf

PDF• 831.2 KB

User manual

mmo_36546274_1512471422_973_15411.pdf

PDF• 4.3 MB

Quick Start Guide

mmo_37428327_1586345832_2189_6650.pdf

PDF• 1.3 MB
