WIZSEC DS-2CD2T87G2P-LSU/SL

Camera

Image Sensor：2 × 1/1.8" Progressive Scan CMOS

Max. Resolution：5120 × 1440 Shutter Time：1/3 s to 1/100,000 s

Min. Illumination：Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light

Angle Adjustment：Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type：Fixed focal lens, Dual lens: 4 mm

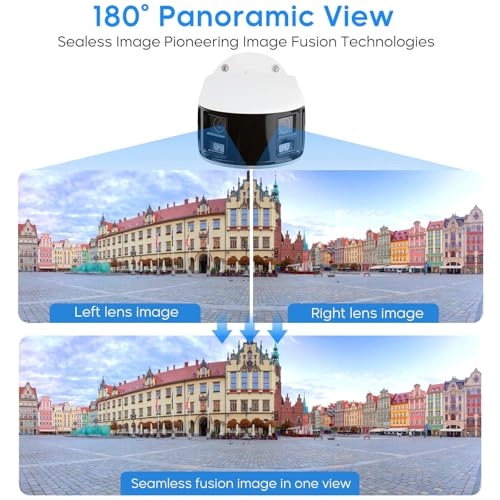

Focal Length & FOV：4 mm, horizontal FOV: 180°, vertical FOV: 44°

Lens Mount：M16 Iris Type：Fixed Aperture：F1.0

Depth Of Field：3.6 m to ∞

DORI：4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type：White Light Supplement Light Range：Up to 40 m

Smart Supplement Light：Yes

Audio

Audio Type：Mono sound

Audio Compression：G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate：64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate：8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering：Yes

Network

Protocols：TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

Simultaneous Live View：Up to 6 channels

API：Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host：Up to 32 users（3 user levels: administrator, operator, and user）

Security：Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)

Network Storage：NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client：iVMS-4200,Hik-Connect,Hik-Central

Web Browser：Pl
