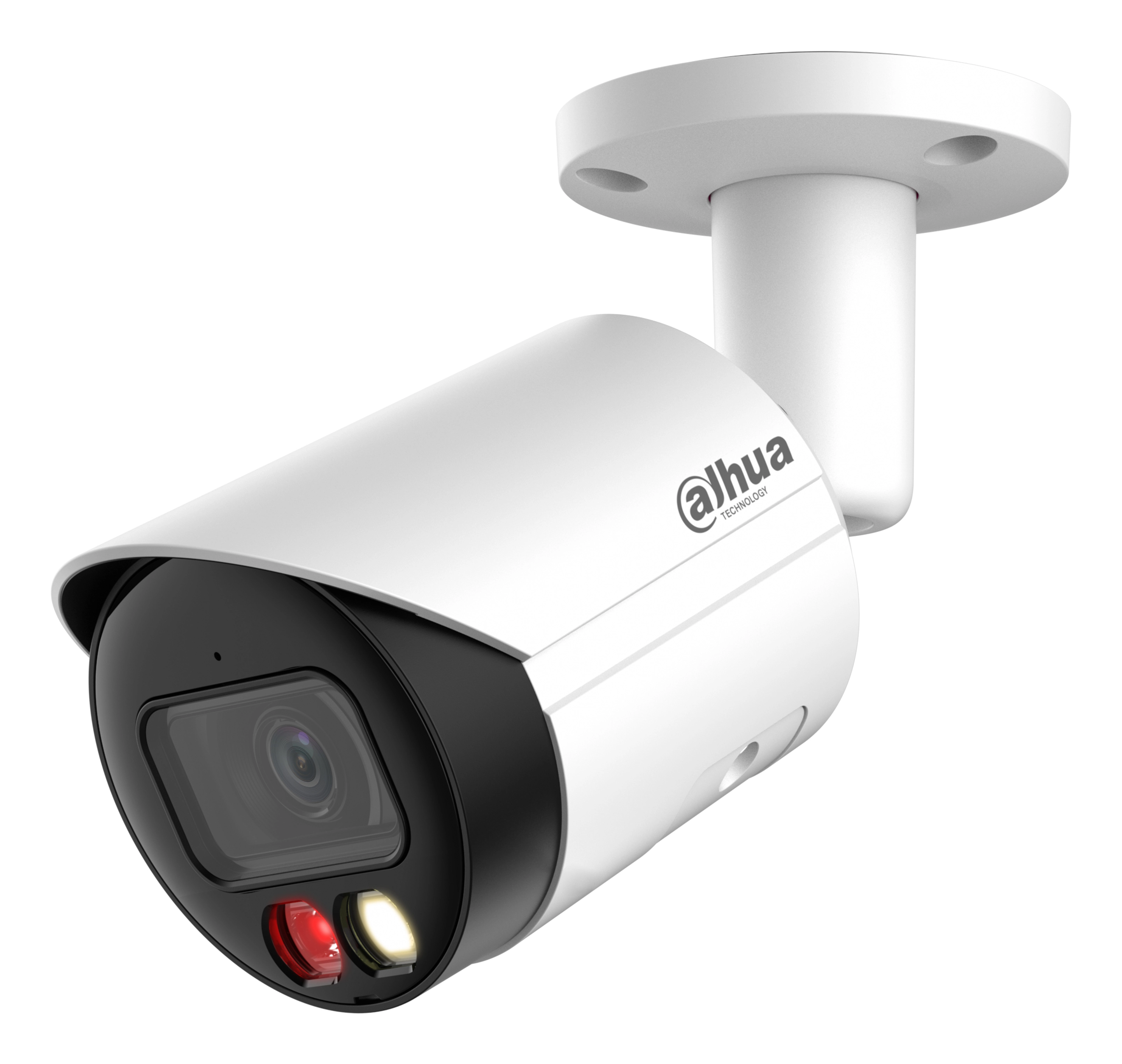

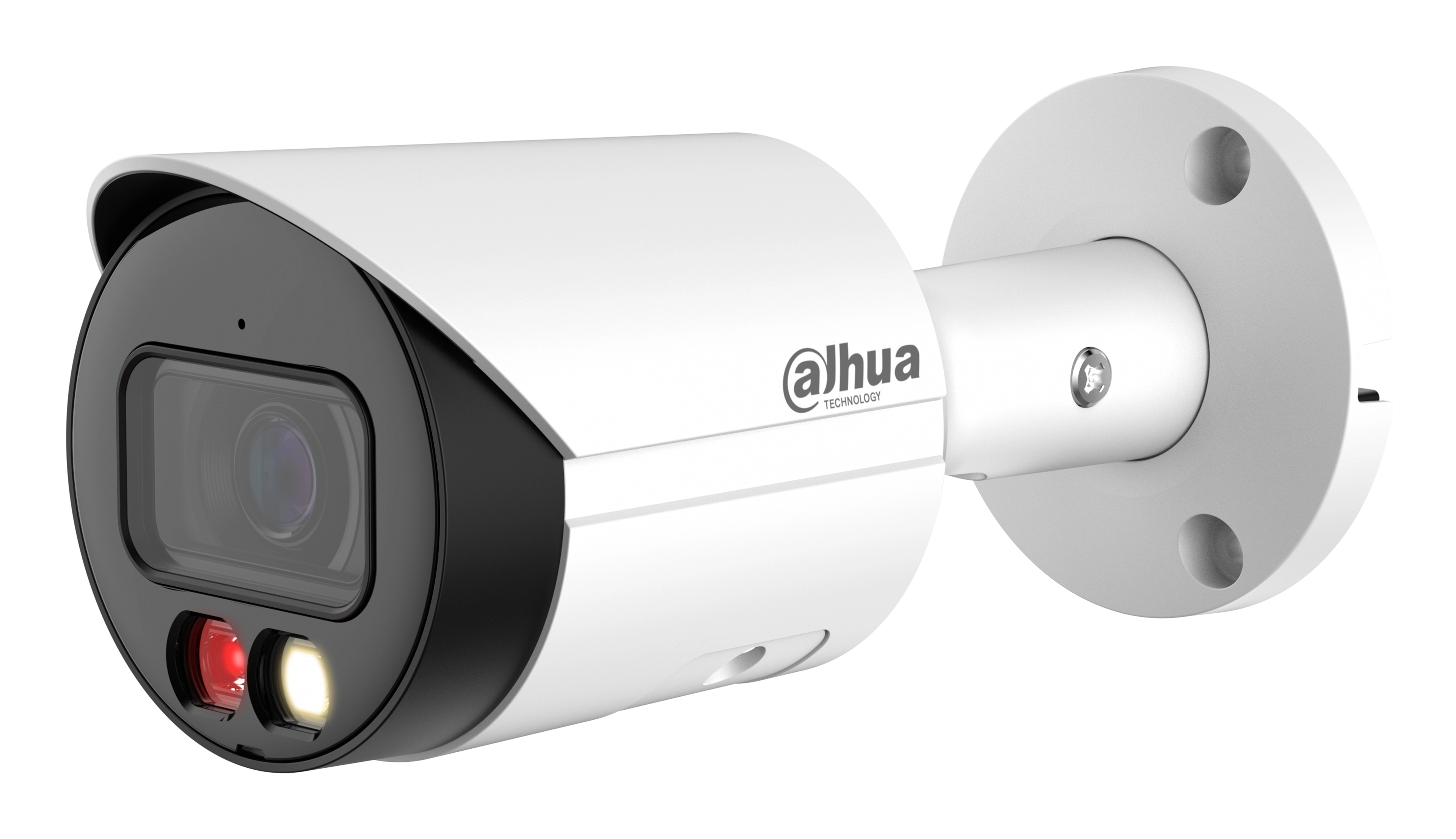

Dahua Technology IPC-HFW2849S-S-IL

Name: Dahua Technology IPC-HFW2849S-S-IL
Brand: Dahua Technology
SKU: 352663
Availability: InStock

Best offer

AED

499⁰⁰

This price may no longer be valid

Key Features

Camera tilt control: Yes
B/W night vision distance: 30m
Detect distance: 84.8m
Observe distance: 33.9m
Recognize distance: 17m
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 58°°
Lens viewing angle, diagonal: 132°°
Power consumption (Power over Ethernet (PoE)): 5.9W
Identify distance: 8.5m
Fixed focus: Yes
Type: IP security camera
Mirror: Yes
Flip & mirror: Yes

Specifications

Features

Web browser

✓

Protection features

Waterproof

Voice codecs

G.711Mu, G.711a, G.726, PCM

Internal memory

128 MB

Weatherproof

✓

Number of sensors

Built-in microphone

✓

Audio formats supported

G.711 A-law, G.711 μ-law, G.726, PCM

Card reader integrated

✓

Cloud-managed

✓

Maximum memory card size

256 GB

Video motion detection

✓

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Fixed focus

✓

Type

IP security camera

Mirror

✓

Flip & mirror

✓

Supported graphics resolutions

1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440, 2688 x 1512, 2688 x 1520, 2880 x 1620, 3072 x 1728, 3072 x 2048, 342 x 240, 352 x 240, 352 x 288, 3840 x 2160, 640 x 480 (VGA), 704 x 480, 704 x 576

RAM capacity

256 MB

ROM capacity

128 MB

Detect distance

84.80 m

Packaging data

Package weight

590 g

Weight & dimensions

Weight

470 g

Height

70 mm

Depth

70 mm

Width

70 mm

Diameter

70 mm

Length

166.20 mm

Management features

Web-based management

✓

Management software

DSS

Power

Power consumption (typical)

2.70 W

Power consumption (max)

5 W

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

5.90 W

Performance

Camera pan control

✓

System requirements

Mobile operating systems supported

Android, iOS

Other features

Browser supported

IE11 Chrome Firefox, IE9, IE: IE8, Safari

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash)

Built-in HDD

✗

Design

International Protection (IP) code

IP67

Housing material

Metal

Placement supported

Indoor/Outdoor

Mounting type

Ceiling/Desk, Ceiling/Wall, Ceiling/Wall/Desk, Wall

Form factor

Bullet

Built-in light

✓

Packaging content

Manual

✓

Network

Client interoperability

CGI, Milestone, ONVIF (Profile S/Profile G/Profile T), P2P

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.3af

Supported network protocols

ARP, Boujour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SFTP, SMTP, TCP, UDP, UPnP

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Ethernet LAN

✓

Live view

✓

Ports & interfaces

Ethernet LAN (RJ-45) ports

Alarm input channels

Alarm output channels

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Number of video streams

Certification

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, CE-LVD: EN 62368-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC Part 15, CE-LVD: EN62368-1, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Lens system

Lens mount interface

M12

Minimum aperture number

1.60

Maximum aperture number

1.60

Number of lenses

Fixed focal length

2.80 mm

Identify distance

8.50 m

Noise reduction technology

3D noise reduction

Recognize distance

17 m

Observe distance

33.90 m

Video

Video compression formats

H.264, H.264B, H.264H, H.265, M-JPEG

Frame rate

30 fps

Smart IR

✓

Image quality adjustment

Mirror

Privacy masking

✓

Security

Privacy protection

✓

Network access storage (NAS)

✓

HTTPS encryption

✓

Focusing

Closest focusing distance

1.50 m

Camera

Day/night mode

✓

Lens diameter

2.80 mm

Gain control type

Auto/Manual

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Adjustment shutter speed

Auto/Manual

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Normal focusing range

1.3 m

Total megapixels

8 MP

Number of cameras

Bit rate

12 Kbps - 8192 Kbps

Signal-to-Noise Ratio (SNR)

56 dB

Sensor type

CMOS

Lens viewing angle, horizontal

111°

Progressive scan

✓

White balance

Natural

Wide Dynamic Range (WDR)

✓

Intelligent Video Surveillance (IVS) system features

Intrusion, Tripwire

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

132°

Lens viewing angle, vertical

58°

Camera tilt control

✓

Shutter

Camera shutter type

Electronic

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

3840 x 2160 pixels

Dynamic range

120 dB

Minimum illumination

0 lx

Night vision

Number of illumination LEDs

Night vision

✓

LED type

Night vision distance

30 m

B/W night vision distance

30 m

Product Details

Launched by Dahua Technology, WizSense is a series of wide range AI products and solutions that adopt independent AI chip and deep learning algorithm. It can recognize human and vehicle in an image with high accuracy, enabling users to focus on real targets. WizSense focuses on human and vehicle, benefiting everyone with intelligent functions, simple configuration and inclusive products. Intelligent: Powered by AI chip and deep learning algorithm, WizSense provides various features that realizes accurate alarms for human and vehicle, and quick target search, maximizing resources to increase overall efficiency. Simple: WizSense offers simple configuration, especially for SMD and AI Coding enabled by default. It eases your customer's daily job and also empowers them to make better business decisions. Inclusive: Inclusivity of WizSense is the idea that everyone gets the opportunities and benefits from AI. With affordable prices and easy configuration of Dahua WizSense, AI is no longer confined to an ivory tower, but applied to real scenarios instead.

Files

Product Brochure

mmo_107519564_1672072614_2859_21067.pdf

PDF• 492.7 KB

User manual

mmo_107519564_1673724499_4451_31443.pdf

PDF• 9.5 MB

Quick Start Guide

mmo_109043917_1747490985_2349_2926867.pdf

PDF• 567.8 KB
