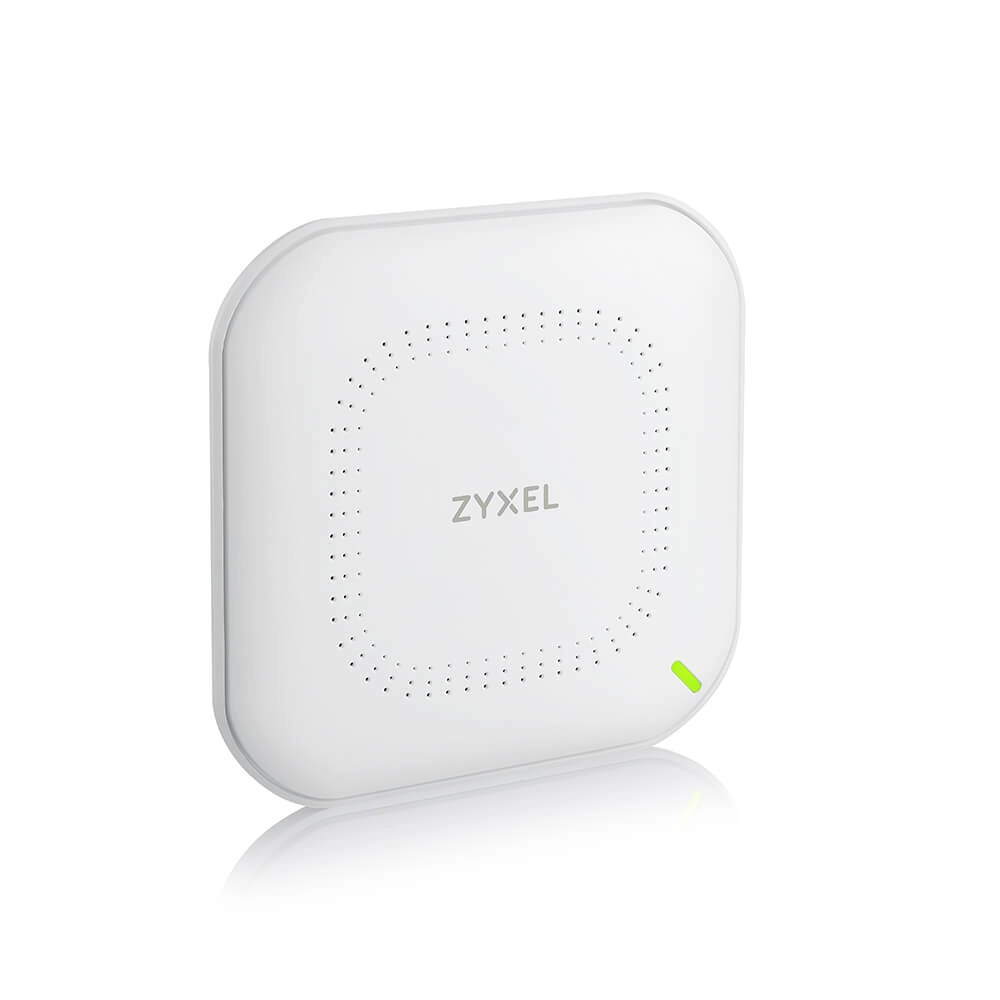

Zyxel NWA1123ACV3

Key Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate (2.4 GHz): 300Mbit/s
Maximum data transfer rate (5 GHz): 866Mbit/s
Maximum data transfer rate: 866Mbit/s
Placement: Ceiling
Antenna type: Internal
MIMO type: Multi User MIMO
Product colour: White
LED indicators: Yes
Remote Authentication Dial-In User Service (RADIUS): Yes
MIMO: Yes
VLAN support: Yes
Power over Ethernet (PoE): Yes
Security algorithms: 802.1x RADIUS, EAP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3

Specifications

Features

Country of origin

China

Security algorithms

802.1x RADIUS, EAP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3

MIMO

✓

Product colour

White

Maximum data transfer rate

866 Mbit/s

Placement

Ceiling

Maximum data transfer rate (5 GHz)

866 Mbit/s

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

5 GHz

✓

2.4 GHz

✓

Weight & dimensions

Weight

249 g

Height

37.50 mm

Depth

141 mm

Width

140 mm

Power

Output current

1 A

AC input voltage

100 - 240 V

Output voltage

+12 V

Power supply

11 W

AC input frequency

50 - 60 Hz

Input current

0.3 A

Power over Ethernet (PoE)

✓

Design

LED indicators

Yes

Computer system

Antenna type

Internal

Network

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11n, IEEE 802.1x

VLAN support

✓

MIMO type

Multi User MIMO

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Security

MAC address filtering

✓

Remote Authentication Dial-In User Service (RADIUS)

✓

Logistics data

Harmonized System (HS) code

85176990

Product Details

The Zyxel NWA1123ACv3 802.11ac Wave 2 Dual-Radio PoE Access Point supports a combined data rate of up to 1.2Gbps. With Zyxel’s innovative design and commitment to “RF First” for high performance and reliable connections through design, the NWA1123ACv3 delivers increased coverage and improved connection speeds for every client. The NWA1123ACv3 supports NebulaFlex, giving you the ability to easily switch between standalone and our license free Nebula cloud management, anytime, with a few simple clicks. Best interior WiFi performance in style Struggling between performance and environment cohesion when deploying business wireless APs is in the past. The stylish exterior of NWA1123ACv3 is suitable for any interior that not only outperforms but also blends into the interior better as well as preventing the equipment theft. Optimize for what you need To create a thoroughly enhanced WiFi experience, NWA1123ACv3 made a big move on MU-MIMO and RF First design via fine-tuned software and innovative hardware. Featuring with DCS and load-balance, NWA1123ACv3 delivers smooth and superior WiFi experience in workplaces. WPA3 WiFi security for Safer Networks Supporting the latest WPA3 standard, the NWA1123ACv3 is designed to bring stronger encryption and authentication to protect your wireless network. Manage it your way! As it comes with the support of NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA1123ACv3 can be managed via NCC (Nebula Control Center), or simply operates alone (controller-less). You can choose the way that is best suited to your needs.
