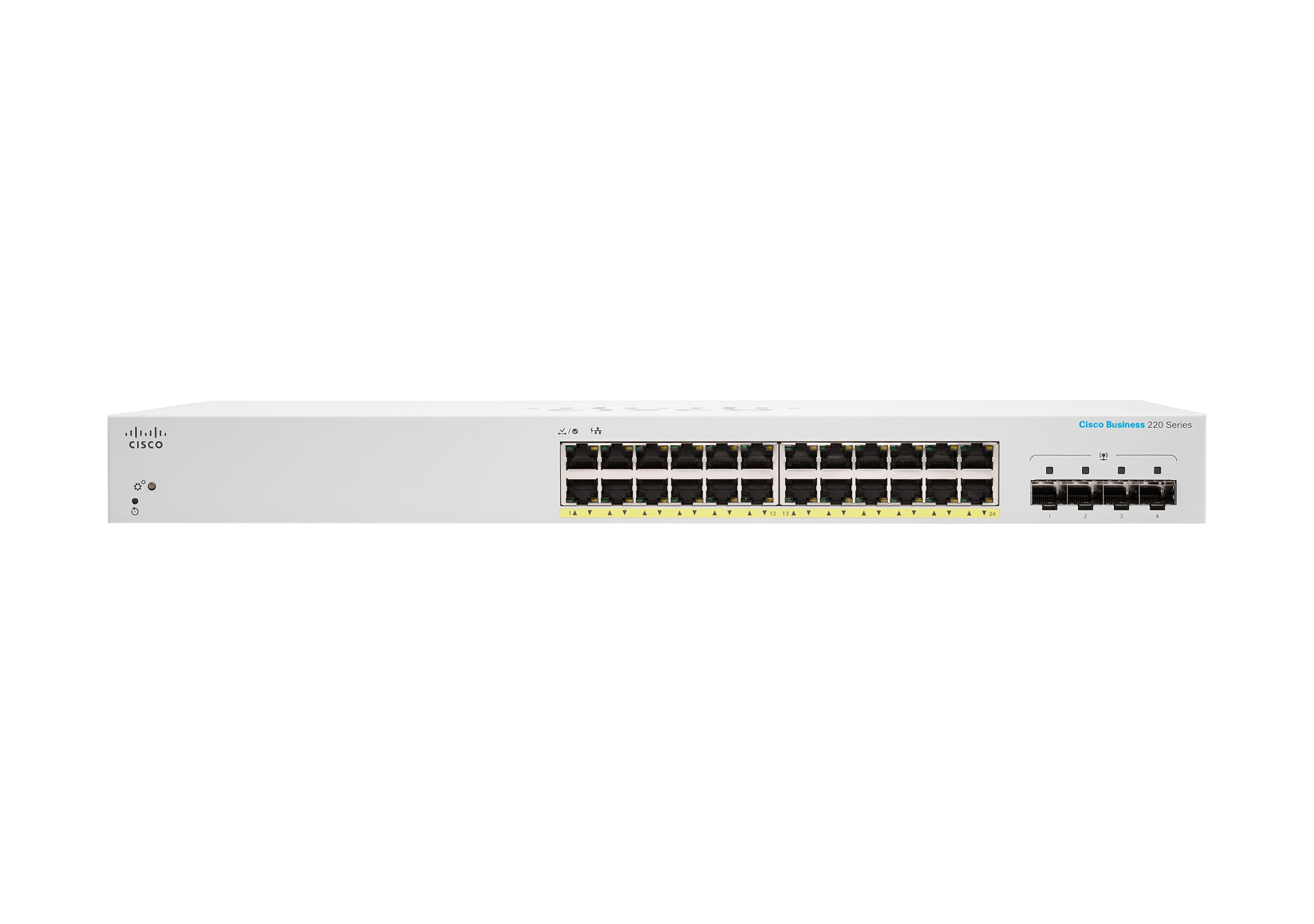

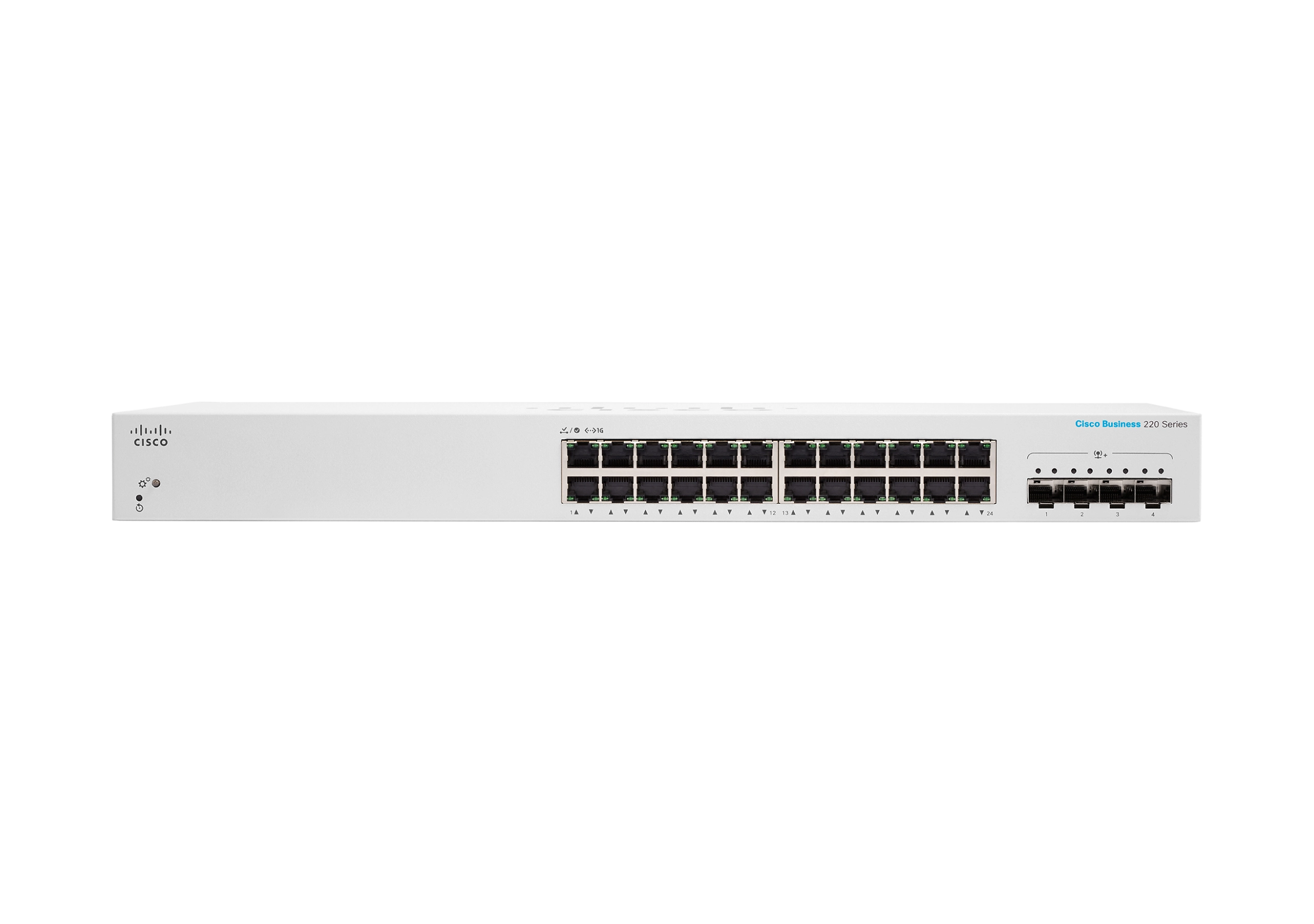

Cisco CBS220-24FP-4X-NA 24-Ports

Key Features

Switch layer: L2, L3
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 95.23Mpps
Multicast MAC address table: 8192entries
DHCP features: DHCP client, DHCP relay
Store-and-forward: Yes
Number of queues: 8
Number of static routes: 32
Number of IP interfaces: 16
Multicast Listener Discovery (MLD) snooping: MLD v1/2
Static route: Yes
Number of multicast groups filtered: 256
Gigabit Ethernet (copper) ports quantity: 24
Port mirroring: Yes

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

698220 h

Market segment

Business

Internal memory

256 MB

Processor frequency

800 MHz

MIB support

Quality of Service (QoS) support

✓

Password protection

✓

Security algorithms

802.1x RADIUS, SSH, SSH-2, SSL/TLS

Rack mounting

✓

Noise level

34.80 dB

Virtual LAN features

Voice VLAN

Product colour

White

Packet buffer memory

4.10 MB

Queue scheduling algorithms

SP, Weighted Round Robin (WRR)

SFP+ module slots quantity

Access Control List (ACL)

✓

Access Control List (ACL) rules

512

Switching capacity

128 Gbit/s

MAC address table

8192 entries

Authentication type

IEEE 802.1x, RADIUS

Configuring Location Settings (CLI)

✓

Jumbo frames support

✓

Forwarding rate

41.66 Mpps

Multicast support

✓

Static route

✓

Multicast Listener Discovery (MLD) snooping

MLD v1/2

Switch layer

L2, L3

Packaging data

Package weight

5800 g

Package height

109.20 mm

Package depth

574 mm

Package width

419.10 mm

Weight & dimensions

Weight

4030 g

Height

43.90 mm

Depth

439.90 mm

Width

257 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

System event log

✓

Number of multicast groups filtered

256

Power

Power plug type

Type C

AC input voltage

100 - 240 V

Power supply location

Internal

AC input frequency

50 - 60 Hz

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

195 W

Power saving mode (EEE)

✓

Number of power supply units

Wireless LAN features

IGMP snooping

✓

Design

Reset button

✓

LED indicators

Yes

Form factor

Redundant fans support

✗

Computer system

Built-in processor

✓

Packaging content

Mounting hardware

Quick start guide

✓

Cables included

Power supply included

✓

Rack mount kit

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Management protocols

HTTP/HTTPS, SNMP, SNMP v1/2c/3, SNTP, TFTP, Telnet

VLAN support

✓

Number of VLANs

256

Auto MDI/MDI-X

✓

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

Rate limiting

✓

Ethernet LAN data rates

10, 100, 1000

Active link detection

✓

Cable length detection

✓

Flow control support

✓

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T

10G support

✓

Link aggregation

✓

Jumbo frames

9216

Port mirroring

✓

Store-and-forward

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

SFP module slots quantity

Cable types supported

Cat5e

Console port

RJ-45/Mini-USB

USB 2.0 ports quantity

Combo SFP ports quantity

Installed SFP+ modules quantity

Power over Ethernet plus (PoE+) ports quantity

Gigabit Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

833.59 BTU/h

Technical details

Sustainability compliance

✓

Switch type

Managed

Compliance certificates

CE, WEEE

Memory

Flash memory

64 MB

Protocols

IPv4 & IPv6 features

Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL)

GARP VLAN Registration Protocol (GVRP)

✓

Data transmission

Number of IP interfaces

Number of static routes

Number of queues

Throughput

95.23 Mpps

Security

MAC address filtering

✓

SSH/SSL support

✓

Broadcast storm control

✓

Loop protection

✓

BPDU filtering/protection

✓

IP-MAC-Port binding

✓

Authentication

Guest VLAN, Port-based authentication

IGMP entries

256

DHCP features

DHCP client, DHCP relay

Ethernet LAN features

IP routing

✓

Logistics data

Harmonized System (HS) code

85176990

Solid state drive

Memory type

DRAM

Multicast features

Multicast MAC address table

8192 entries

Product Details

The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution. With Cisco Business 220 Series switches, you can not only build an efficient and reliable network to connect the workforce, you can also create advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees. Cisco Business 220 Series provides capabilities that help you create business-class networks. These features deliver a solution to simplify the operation, increase uptime, and get your business better connected to employees, customers, and suppliers.

Files

Product Brochure

mmo_85990304_1625079675_6489_32593.pdf

PDF• 913 KB

User manual

mmo_94373968_1651781130_0003_29410.pdf

PDF• 651.7 KB

Videos

Portfolio Overview Video

MP4• 5.7 MB

Product Feature Overview Video

MP4• 14.3 MB

Unboxing Video

MP4• 36.9 MB
