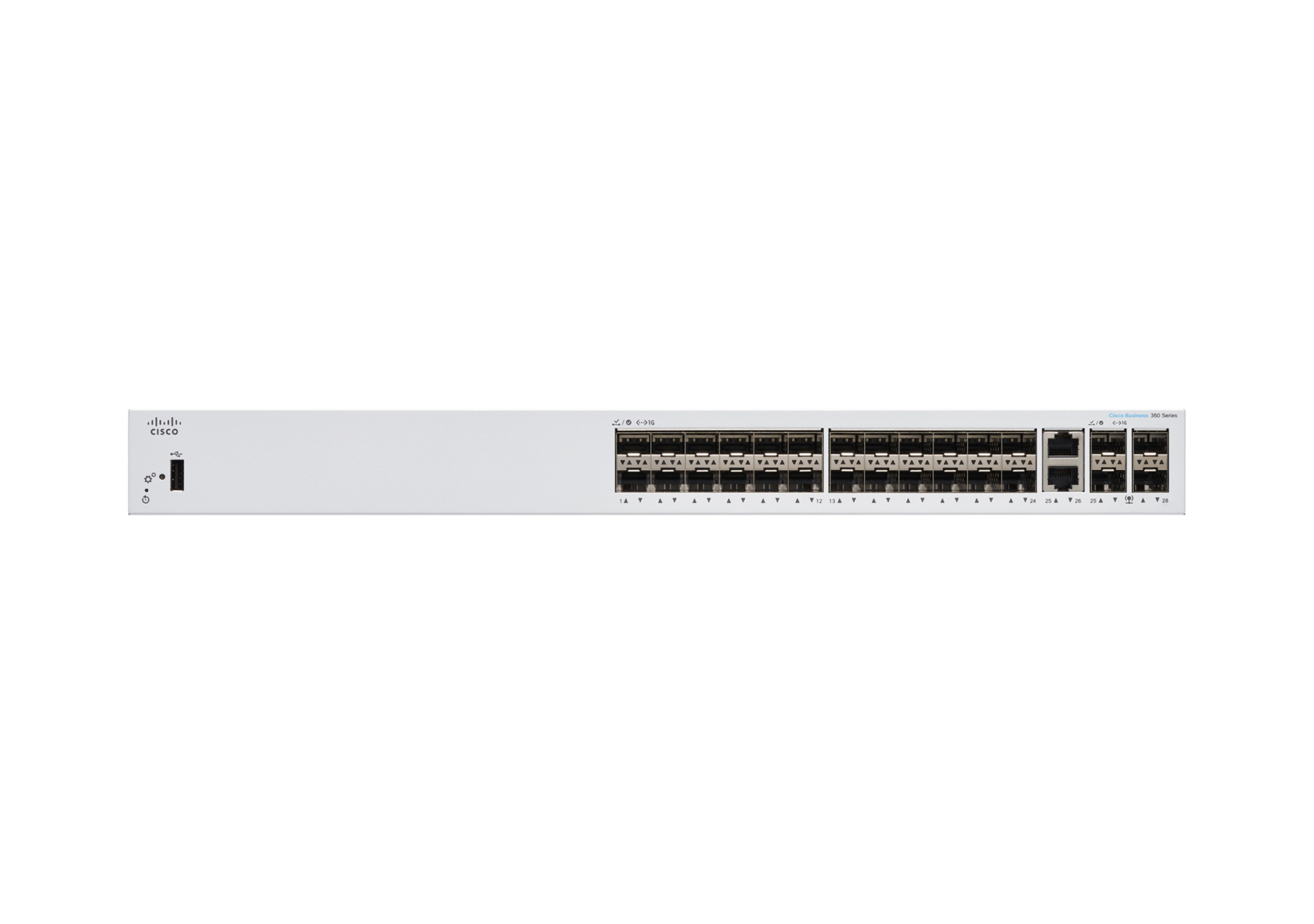

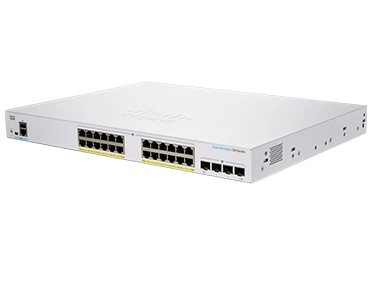

Cisco CBS350-24P-4X 24-Ports

Best offer
AED
5 45890

This price may no longer be valid

Key Features

  • Switch layer: L2/L3, L3
  • Physical stacking (units): 4
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • 10G Ethernet (copper) ports quantity: 4
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • DHCP features: DHCP option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay
  • Number of queues: 8
  • Number of static routes: 990
  • Number of IP interfaces: 128
  • Multicast Listener Discovery (MLD) snooping: MLD v1/2
  • Static route: Yes
  • Gigabit Ethernet (copper) ports quantity: 24
  • Port mirroring: Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Half duplex: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Country of origin
China
Mean time between failures (MTBF)
1033942 h
Market segment
Business
Internal memory
512 MB
Processor frequency
800 MHz
MIB support
Y
Cloud-managed
✓
Quality of Service (QoS) support
✓
Password protection
✓
Security algorithms
802.1x RADIUS, HTTPS, SSH, SSH-2, SSL/TLS
Rack mounting
✓
Noise level
40.50 dB
Stackable
✓
Virtual LAN features
IP subnet–based VLAN, MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Product colour
Silver
Packet buffer memory
1.50 MB
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
SFP+ module slots quantity
4
Access Control List (ACL)
✓
Access Control List (ACL) rules
1024
Switching capacity
56 Gbit/s
Full duplex
✓
MAC address table
16000 entries
Authentication type
IEEE 802.1x, RADIUS
Configuring Location Settings (CLI)
✓
Jumbo frames support
✓
Forwarding rate
41.66 Mpps
Multicast support
✓
Static route
✓
Multicast Listener Discovery (MLD) snooping
MLD v1/2
Switch layer
L2/L3, L3

Packaging data

Package weight
6830 g
Package height
106 mm
Package depth
575 mm
Package width
478 mm

Weight & dimensions

Weight
2700 g
Height
43.90 mm
Depth
444.50 mm
Width
240.50 mm

Management features

Web-based management
✓
Firmware upgradeable
✓
System event log
✓
ARP inspection
✓

Power

Power plug type
Type C
AC input voltage
100 - 240 V
Power supply location
Internal
AC input frequency
50 Hz
Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
195 W
Number of power supply units
1
Redundant power supply (RPS) support
✗

Performance

Physical stacking (units)
4

Wireless LAN features

IGMP snooping
✓

Design

Stacking
✓
Fanless
✓
Reset button
✓
LED indicators
Yes
Form factor
1U
Redundant fans support
✓

Computer system

Built-in processor
✓

Packaging content

Packaging content
Power cord or adapter
Quick start guide
✓
Cables included
AC
Power supply included
✓
Rack mount kit
✓

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Management protocols
BOOTP, HTTP/HTTPS, RADIUS, SNMP, SNMP 1/2c/3, SNMP v1/2c/3, SNTP, SSH, Telnet
VLAN support
✓
VLAN mapping type
1:1 VLAN mapping
Number of VLANs
4094
Auto MDI/MDI-X
✓
Spanning tree protocol
✓
Head-of-line (HOL) blocking
✓
Rate limiting
✓
Ethernet LAN data rates
10, 100, 1000
Active link detection
✓
Cable length detection
✓
Flow control support
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T
10G support
✓
Link aggregation
✓
Jumbo frames
9000
Half duplex
✓
Policy-based routing
✓
Port mirroring
✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity
24
SFP module slots quantity
4
Cable types supported
Cat5e
Console port
RJ-45, RJ-45/Mini-USB
USB 2.0 ports quantity
1
Combo SFP ports quantity
4
Installed SFP+ modules quantity
4
Power over Ethernet plus (PoE+) ports quantity
24
Gigabit Ethernet (copper) ports quantity
24
10G Ethernet (copper) ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %
Heat dissipation
1626.20 BTU/h

Technical details

Sustainability compliance
✓
Certification
CE mark, CSA (CSA 22.2), FCC 15 (CFR 47) A, FCC Part 15 (CFR 47) Class A, UL (UL 60950)
Switch type
Managed
Compliance certificates
CE, WEEE

Memory

Flash memory
256 MB

Protocols

Routing protocols
RIP-2
IPv4 & IPv6 features
IPv6 First Hop Security​ (FHS)
GARP VLAN Registration Protocol (GVRP)
✓

Data transmission

Number of IP interfaces
128
Number of static routes
990
Number of queues
8

Security

MAC address filtering
✓
IP Source Guard (IPSG)
✓
SSH/SSL support
✓
Broadcast storm control
✓
Loop protection
✓
BPDU filtering/protection
✓
IP-MAC-Port binding
✓
Authentication
Guest VLAN, Port-based authentication, Web-based authentication
DHCP features
DHCP option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay

Ethernet LAN features

IP routing
✓

Logistics data

Harmonized System (HS) code
85176990

Product Details

Critical Building Block for Any Small Office Network From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be top of mind while ongoing management and operations add additional complexity that take time and resources. Cisco Business is a portfolio of affordable wireless access points, switches and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience. Cisco Business 350 series managed switches The Cisco Business 350 Series Switches, part of the Cisco Business line of network solutions, is a portfolio of affordable managed switches that provides a critical building block for any small office network. Intuitive dashboard simplifies network setup, and advanced features accelerate digital transformation, while pervasive security protects business critical transactions. The Cisco Business 350 Series Switches provide the ideal combination of affordability and capabilities for small office and helps you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation yet value is still a top consideration, you’re ready for the Cisco Business 350 Series Switches Business applications Whether you need a basic high-performance network to connect employee computers or a solution to deliver data, voice, and video services, the Cisco 350 Business Series Switches offer a solution to meet your needs. Possible deployment scenarios include: Secure office connectivity: Cisco Business 350 Series Switches can simply and securely connect employees working in small offices with each other and with all of the servers, printers, and other networking devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive. Unified communications: As a managed network solution, the Cisco Business 350 Series Switches provide the performance and advanced traffic-handling intelligence you need to deliver all communications and data over a single network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for businesses. Cisco Business 350 Series Switches have been rigorously tested to help ensure easy integration and full compatibility with these and other products, providing a complete business solution. Highly secure guest connectivity. Cisco Business 350 Series Switches let you extend highly secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to nonemployee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests’ network sessions private from each other. Ease of Management and Deployment Cisco Business 350 Series Switches are designed to be easy to use and manage by commercial customers or the partners that serve them, including the following features: Cisco Business Dashboard is designed to manage Cisco Business switches, routers, and wireless access points. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks while automating the deployment, monitoring, and lifecycle management of the network. The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience. The intuitive user interfaces reduce the time required to deploy, troubleshoot, and manage the network and allow you to support sophisticated capabilities without increasing IT head count. The switches also support Text view, a full Command-Line Interface (CLI) option for partners that prefer it. Support for Simple Network Management Protocol (SNMP) allows you to set up and manage your switches and other Cisco devices remotely from a network management station, improving IT workflow and mass configurations. High Reliability and Resiliency In a growing business where availability 24 hours a day, 7 days a week is critical, you need to ensure business continuity and that employees can always access the data and resources they need. The Cisco Business 350 Series Switches support dual images, allowing you to perform software upgrades without having to take the network offline or worry about the network going down during the upgrade. Strong Security Cisco Business 350 Series Switches provide the advanced security features you need to protect your business data and keep unauthorized users off the network: ● Support for advanced network security applications such as IEEE 802.1X and port security tightly limits access to specific segments of your network. Web-based authentication provides a consistent interface to authenticate all types of host devices and operating systems, without the complexity of deploying IEEE 802.1X clients on each endpoint. ● Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks. Combinations of these protocols are also referred to as IP-MAC port binding (IPMB). ● IPv6 First Hop Security extends the advanced threat protection to IPv6. This comprehensive security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check, providing unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks. Power over Ethernet Cisco Business 350 Series Switches are available with up to 48 Power over Ethernet (PoE) ports. This capability simplifies advanced technology deployments such as IP telephony, wireless, and IP surveillance by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost. Models support 802.3af PoE and 802.3at PoE+. 60W PoE is also supported on select switches to power high-performance wireless access points and Internet of Things (IoT) devices. IPv6 Support As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco Business 350 Series Switches can support the transition to the next generation of networking. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future. Cisco Business 350 Series Switches have successfully completed rigorous IPv6 testing and have received the USGv6 and IPv6 Gold certification. Advanced Layer 3 Traffic Management The Cisco Business 350 Series Switches enable a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide dynamic Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance. With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage primarily external traffic and security. True stacking Cisco Business 350 Series switches provide true stacking capability, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit with a single IP address. A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. True stacking also provides other cost savings and administrative benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring, which clustered switches cannot support. Power Efficiency The Cisco Business 350 Series Switches integrate a variety of power-saving features across all models, providing the industry’s most extensive energy-efficient switching portfolio. These switches are designed to conserve energy by optimizing power use, which helps protects the environment and reduce your energy costs. They provide an eco-friendly network solution without compromising performance. Cisco Business 350 Series Switches feature: ● Support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods ● Automatic power shutoff on ports when a link is down ● Embedded intelligence to adjust signal strength based on the length of the connecting cable ● Fanless design in most models, which reduces power consumption, increases reliability, and provides quieter operation Peace of Mind and Investment Protection Cisco Business 350 Series Switches offer the reliable performance and peace of mind you expect from a Cisco switch. A solution that has been rigorously tested to help ensure optimal network uptime to ensure business continuity. Complementary one-year access to our Small Business Support Center for ongoing support. Limited lifetime warranty with Next-Business-Day (NBD) advance replacement (where available) keeps your business running smoothly.

Files

Product Brochure

mmo_85990157_1610655959_8853_59783.pdf

PDF• 888.5 KB

Images

599-337599-337

Videos

Product Feature Overview Video

MP4• 14.3 MB

Portfolio Overview Video

MP4• 5.7 MB
