NETGEAR GS728TP-200NAS 28-ports

Key Features

  • Switch layer: L2/L3/L4
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Multicast MAC address table: 512entries
  • DHCP features: DHCP client
  • Latency (1 Gbps): 3.35µs
  • Static route: Yes
  • Port mirroring: Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Switching capacity: 56Gbit/s
  • Full duplex: Yes
  • MAC address table: 16000entries
  • Access Control List (ACL): Yes
  • Access Control List (ACL) rules: 100
  • Auto-sensing: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Internal memory
128 MB
Processor frequency
700 MHz
Rack mounting
✓
Product colour
Black
Packet buffer memory
1.50 MB
Switching capacity
56 Gbit/s
Full duplex
✓
MAC address table
16000 entries
Access Control List (ACL)
✓
Access Control List (ACL) rules
100
Auto-sensing
✓
Jumbo frames support
✓
Multicast support
✓
Static route
✓
Switch layer
L2/L3/L4

Weight & dimensions

Weight
3730 g
Height
44 mm
Depth
257 mm
Width
440 mm

Management features

Web-based management
✓
Firmware upgradeable
✓

Power

Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
380 W

Wireless LAN features

IGMP snooping
✓

Design

LED indicators
Yes
Form factor
1U

Computer system

Built-in processor
✓

Packaging content

User guide
✓
Quick start guide
✓
Manual
✓
Cables included
AC

Network

VLAN support
✓
Number of VLANs
256
Spanning tree protocol
✓
Rate limiting
✓
Fiber ethernet cabling technology
1000BASE‑LX, 1000BASE‑SX
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 10BASE-T
10G support
✗
Port mirroring
✓

Ports & interfaces

SFP module slots quantity
4
USB 2.0 ports quantity
1
Power over Ethernet plus (PoE+) ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24

Operational conditions

Operating altitude (imperial)
0 - 3000 m
Operating temperature (T-T)
0 - 55 °C
Operating relative humidity (H-H)
0 - 90 %
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
0 - 95 %

Technical details

Certification
ACMA, BSMI, CCC, CE, CE mark, CE/EN55032/24, CSA safety, Class A C-Tick, Class A EN 55022, EN 50082-1, EN 55024, FCC, FCC Part 15 class B, KC, VCCI, commercial
Switch type
Managed

Memory

Flash memory
32 MB

Data transmission

Latency (1 Gbps)
3.35 µs

Security

MAC address filtering
✓
Broadcast storm control
✓
Static port security
✓
DHCP features
DHCP client

Multicast features

Multicast MAC address table
512 entries

Product Details

All ports PoE+ with up to 760W PoE budget – Select your new network engine! As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains. The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 31dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 35dBA, the GS752TPv2 at 38dBA and the GS752TPP at 43dBA

Files

Product Brochure

mmo_55361116_1615897789_0681_57863.pdf

PDF• 791.6 KB

Installation Guide

mmo_55361116_1615897924_8375_16733.pdf

PDF• 546.7 KB

User manual

mmo_55361116_1615897946_2501_57859.pdf

PDF• 8 MB

Reviews

Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

Join our newsletter

Be the first to know about new arrivals, sales, and exclusive picks

Sign in to unlock newsletter access and stay in the loop

Allware
info@allware.com
+971522500911
World technology awards winner badge

Allware

  • About Us
  • Terms And Conditions
  • Privacy Policy
  • Contact Us

Partners

  • Why become a partner?
  • How to list your Online Shop?

Newsletter

  • Subscribe

Info

  • How Allware works
All Rights Reserved.
Please enable location access or select an emirate
-
00:00:00
Prayer timings

Offers (1)

Amazon logo

1 offer

From
AED
Infinity

NETGEAR 28-Port PoE Gigabit Ethernet Smart Switch (GS728TP) - Managed, Optional Insight Cloud Management, 24 x PoE+ @ 190W, 4 x 1G SFP, Desktop or Rackmount, and Limited Lifetime Protection

Unavailable

Similar Products

See all
-20%
D-Link DGS-1008A 8-ports

D-Link DGS-1008A 8-ports

AED
4500
AED
3600
13 offers
Ubiquiti USW-Pro-24-PoE 24-Ports

Ubiquiti USW-Pro-24-PoE 24-Ports

AED
2 34300
11 offers
Linksys LGS108-EU-RTL 8-ports

Linksys LGS108-EU-RTL 8-ports

AED
12000
11 offers
-9%
D-Link DGS-1024D 24-ports

D-Link DGS-1024D 24-ports

AED
19700
AED
17850
11 offers
-16%
D-Link DES-1024D 24-ports

D-Link DES-1024D 24-ports

AED
14500
AED
12150
10 offers
-8%
D-Link DGS-108 8-Ports

D-Link DGS-108 8-Ports

AED
8772
AED
8000
10 offers
D-Link DLDGS1016D 16-ports

D-Link DLDGS1016D 16-ports

AED
14488
9 offers
-32%
D-Link DGS-1100-08P 8-ports

D-Link DGS-1100-08P 8-ports

AED
34999
AED
23579
8 offers
-1%
Linksys LGS105MERTL 5-ports

Linksys LGS105MERTL 5-ports

AED
8300
AED
8150
8 offers
D-Link DGS-F1210-26PS-E 26-Ports

D-Link DGS-F1210-26PS-E 26-Ports

AED
59900
7 offers

More from NETGEAR

See all
NETGEAR Nighthawk RAX50

NETGEAR Nighthawk RAX50

AED
99900
4 offers
NETGEAR GS110TUP-100NAS 10-Ports

NETGEAR GS110TUP-100NAS 10-Ports

AED
3 97777
1 offer
NETGEAR CM2500

NETGEAR CM2500

AED
2 60400
1 offer
NETGEAR GS316EP-100PES 16-ports

NETGEAR GS316EP-100PES 16-ports

AED
89387
1 offer

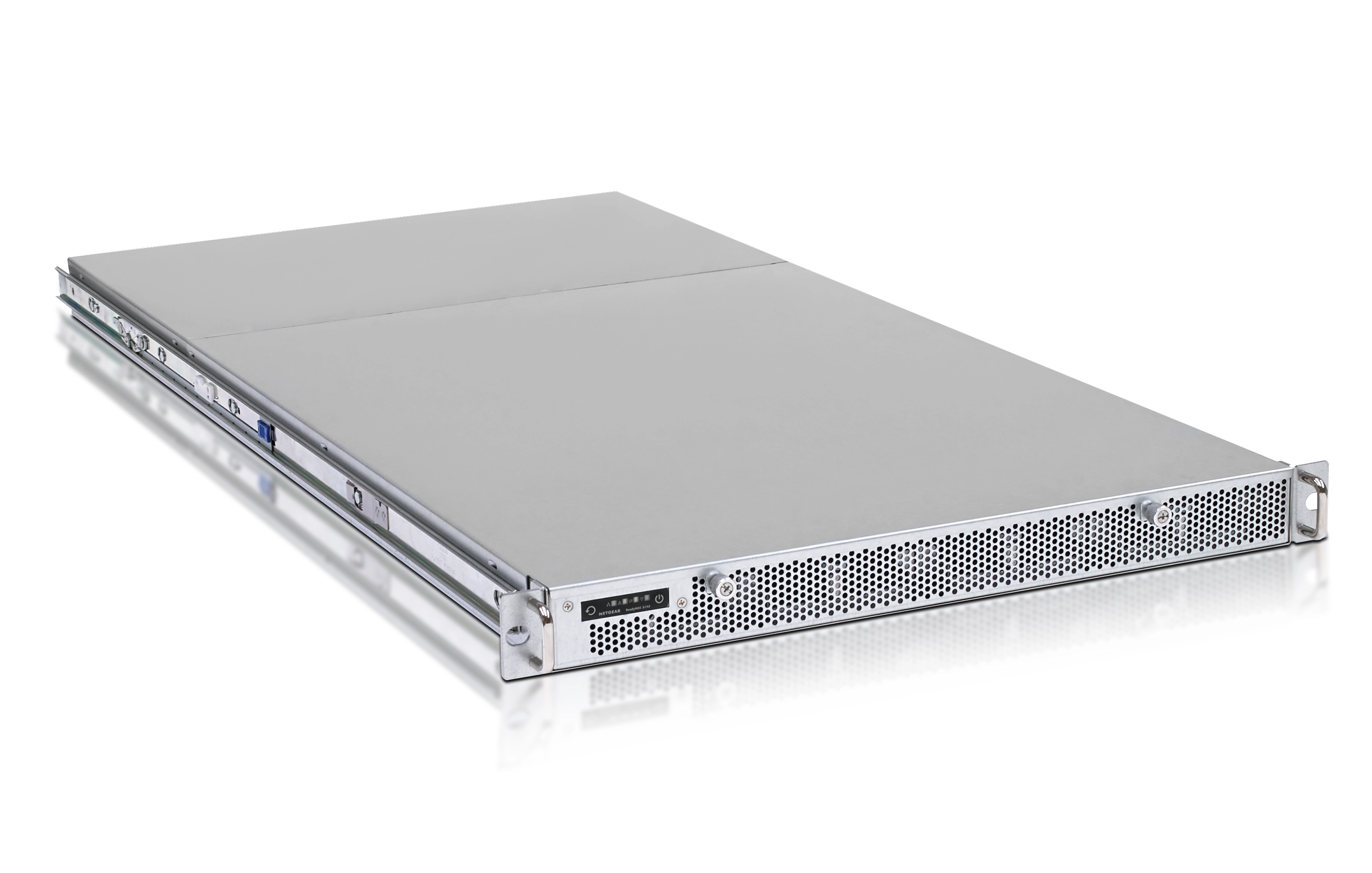

NETGEAR ReadyNAS 2312 12-Bay 72TB
