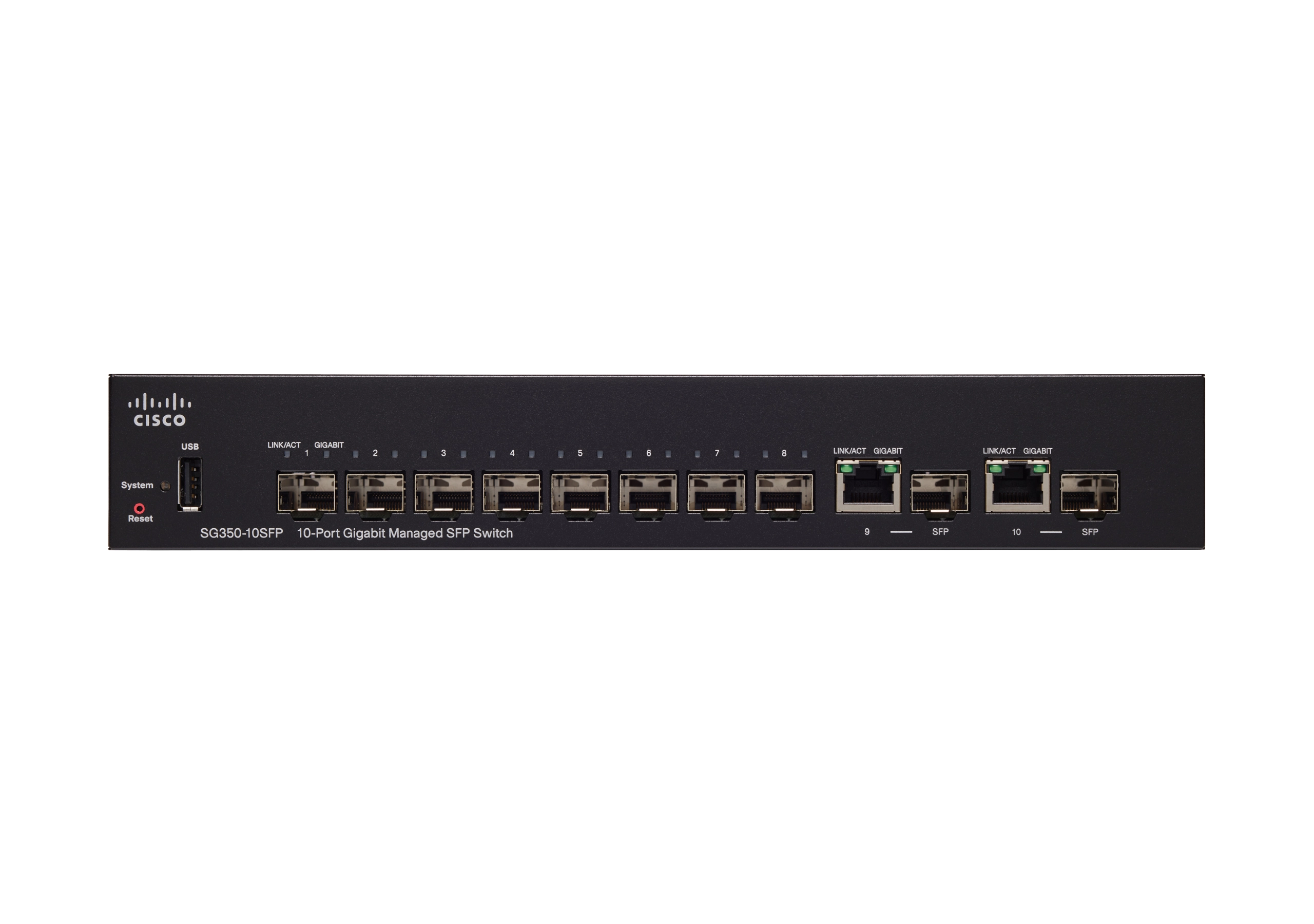

Cisco SG350-10SFP - 10-ports

Best offer
AED
2 94786

This price may no longer be valid

Key Features

  • Switch layer: L2/L3, L3
  • Physical stacking (units): 4
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Throughput: 357.12Gbit/s
  • Throughput: 14.88Mpps
  • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
  • Uplink ports quantity: 2
  • Number of queues: 8
  • Number of static routes: 1024
  • Number of IP interfaces: 128
  • Static route: Yes
  • Number of multicast groups filtered: 4000
  • Gigabit Ethernet (copper) ports quantity: 8
  • Port mirroring: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Country of origin
China
Mean time between failures (MTBF)
80093 h
Internal memory
512 MB
Processor frequency
800 MHz
Quality of Service (QoS) support
✓
Security algorithms
802.1x RADIUS, HTTPS, MD5, SSH, SSL/TLS
Rack mounting
✓
Noise level
36.40 dB
Stackable
✓
Virtual LAN features
MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Product colour
Black
Packet buffer memory
12 MB
Queue scheduling algorithms
WRR+SP
SFP+ module slots quantity
24
Telnet
✓
Access Control List (ACL)
✓
Access Control List (ACL) rules
512
Switching capacity
20 Gbit/s
MAC address table
16384 entries
Authentication type
IEEE 802.1x, RADIUS
Jumbo frames support
✓
Forwarding rate
178.56 Mpps
Multicast support
✓
Static route
✓
Throughput
357.12 Gbit/s
Switch layer
L2/L3, L3

Packaging data

Package weight
3450 g
Package height
77.30 mm
Package depth
374.40 mm
Package width
308.10 mm

Weight & dimensions

Weight
1190 g
Height
44.50 mm
Depth
279.40 mm
Width
170 mm

Management features

Web-based management
✓
Firmware upgradeable
✓
System event log
✓
ARP inspection
✓
Number of multicast groups filtered
4000

Power

Power plug type
Type C
Power consumption (typical)
9.01 W
AC input voltage
100 - 240 V
AC input frequency
50 Hz
Input current
1.5 A
Power consumption (max)
152.80 W
Power over Ethernet (PoE)
✗
Total Power over Ethernet (PoE) budget
128 W
Power saving mode (EEE)
✓
Number of power supply units
1

Performance

Physical stacking (units)
4

Wireless LAN features

IGMP snooping
✓

Design

Stacking
✓
Reset button
✓
LED indicators
Yes
Form factor
1U

Computer system

Built-in processor
✓

Packaging content

Packaging content
Rubber feet
Included power plug types
UK
Quick start guide
✓
Cables included
AC, Serial
Power supply included
✓
Mounting bracket(s) included
✓
Rack mount kit
✓

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Management protocols
2, 3, HTTP/HTTPS, IPv4/IPv6, MIB, RMON, SNMP, SNMP v1, SNMP v1/2c/3, SNTP, TFTP, Telnet
VLAN support
✓
Number of VLANs
4096
Spanning tree protocol
✓
Head-of-line (HOL) blocking
✓
Rate limiting
✓
Active link detection
✓
Cable length detection
✓
MAC address auto-learning supported
✓
Flow control support
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T
10G support
✗
Link aggregation
✓
Jumbo frames
9216
Port mirroring
✓

Ports & interfaces

ExpressCard slot
✗
Power over Ethernet (PoE) ports quantity
8
Fiber optic connector
MiniGBIC, SFP
SFP module slots quantity
8
Cable types supported
Cat5, Cat6, Cat6e, Cat7, Fiber
Console port
RJ-45
USB 2.0 ports quantity
1
Combo SFP ports quantity
2
Gigabit Ethernet (copper) ports quantity
8
Uplink ports quantity
2
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %
Heat dissipation
218.70 BTU/h

Technical details

Certification
CE, CE mark, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, FCC15 (CFR 47) A, UL (UL 60950)
Switch type
Managed

Memory

Flash memory
256 MB

Protocols

IPv4 & IPv6 features
Dual stack IPv4/IPv6, IPv6 First Hop Security​ (FHS)
GARP VLAN Registration Protocol (GVRP)
✓
Intra-Site Automatic Tunnel Addressing Protocol (ISATAP)
✓

Data transmission

Number of IP interfaces
128
Number of static routes
1024
Number of queues
8
Throughput
14.88 Mpps

Security

MAC address filtering
✓
IP Source Guard (IPSG)
✓
SSH/SSL support
✓
Broadcast storm control
✓
Static port security
✓
Loop protection
✓
BPDU filtering/protection
✓
DoS attack prevention
✓
IP-MAC-Port binding
✓
Authentication
Guest VLAN, Port-based authentication, Web-based authentication
Root protection
✓
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping

Ethernet LAN features

IP routing
✓

Logistics data

Harmonized System (HS) code
85176990

Product Details

The Cisco 350X series Stackable Managed Switches are a line of stackable managed Ethernet switches that provide the rich capabilities you need to support a more demanding network environment at a very affordable price. The Cisco 350XG-24 models provide 24 10 Gigabit Ethernet 10GBase-T copper ports, providing a solid foundation for your current business applications as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage without a large IT staff. The 350X platforms are Cisco's most cost-effective platforms with 10 Gigabit SFP+ and stacking. Cisco 350X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 350X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operate as a single entity constituting all the ports of the stack members. The switches also protect your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future. Overall, the Cisco 350X Series provides the ideal technology foundation for a growing business. - Layer 3 - Managed - 22 x XG SFP+ slots + 2 x combination XG copper/SFP+ plus 1 x GE OOB management - Desktop or rack-mountable - 1U - Stackable
