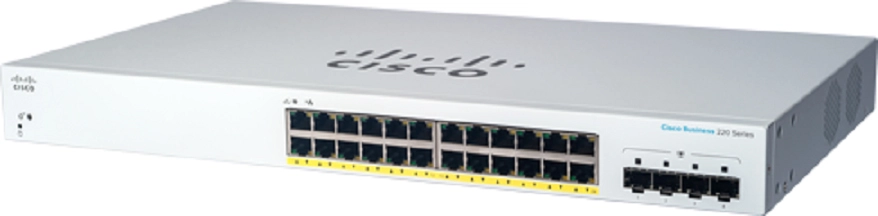

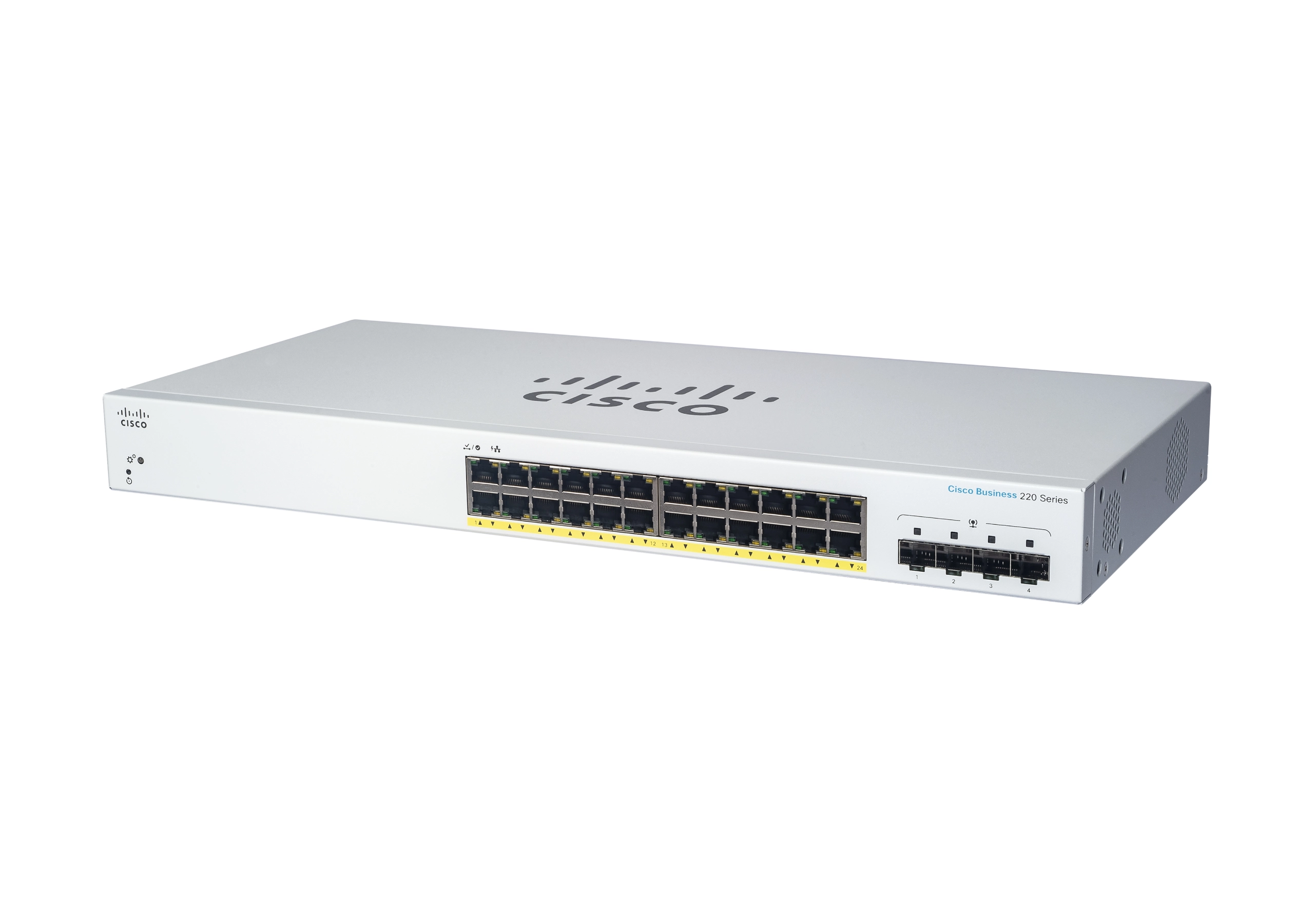

Cisco CBS220-24FP-4G-NA 24-ports

Best offer

AED

2 575⁷¹

This price may no longer be valid

Key Features

Switch layer: L2, L2/L3
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Multicast MAC address table: 8192entries
DHCP features: DHCP client, DHCP relay, DHCPv6 client
Number of queues: 8
Number of multicast groups filtered: 256
Port mirroring: Yes
IP routing: Yes
Jumbo frames: 9216
IGMP entries: 256
Queue scheduling algorithms: Weighted Round Robin (WRR)
SFP+ module slots quantity: 4
Switching capacity: 56Gbit/s
MAC address table: 8192entries

Specifications

Features

Country of origin

China

Market segment

Business

Internal memory

256 MB

Processor frequency

800 MHz

Cloud-managed

✓

MIB support

Y

Quality of Service (QoS) support

✓

Password protection

✓

Security algorithms

802.1x RADIUS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS

Rack mounting

✓

Virtual LAN features

Voice VLAN

Product colour

White

Packet buffer memory

4.10 MB

Queue scheduling algorithms

Weighted Round Robin (WRR)

SFP+ module slots quantity

4

Switching capacity

56 Gbit/s

MAC address table

8192 entries

Access Control List (ACL)

✓

Access Control List (ACL) rules

512

Authentication type

IEEE 802.1x, RADIUS

Configuring Location Settings (CLI)

✓

Jumbo frames support

✓

Forwarding rate

41.66 Mpps

Multicast support

✓

Switch layer

L2, L2/L3

Packaging data

Package weight

6010 g

Package height

109.20 mm

Package depth

574 mm

Package width

419.10 mm

Weight & dimensions

Weight

2750 g

Height

43.90 mm

Depth

439.90 mm

Width

257 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

System event log

✓

ARP inspection

✓

Number of multicast groups filtered

256

Power

Power plug type

Type C

AC input voltage

100 - 240 V

Power supply location

Internal

AC input frequency

50 - 60 Hz

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

382 W

Power saving mode (EEE)

✓

Wireless LAN features

IGMP snooping

✓

Design

Reset button

✓

LED indicators

Yes

Form factor

1U

Computer system

Built-in processor

✓

Packaging content

Packaging content

Mounting hardware

Power supply included

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Management protocols

HTTP/HTTPS, SNMP, SNMP v1/2c/3, SNTP, TFTP, Telnet

VLAN support

✓

Number of VLANs

256

Auto MDI/MDI-X

✓

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

Ethernet LAN data rates

10, 100

10G support

✓

Link aggregation

✓

Flow control support

✓

Jumbo frames

9216

Port mirroring

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

24

SFP module slots quantity

4

USB 2.0 ports quantity

1

Combo SFP ports quantity

4

Installed SFP modules quantity

4

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

24

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

833.59 BTU/h

Technical details

Switch type

Managed

Memory

Flash memory

64 MB

Protocols

GARP VLAN Registration Protocol (GVRP)

✓

Data transmission

Number of queues

8

Security

MAC address filtering

✓

SSH/SSL support

✓

Broadcast storm control

✓

Loop protection

✓

BPDU filtering/protection

✓

IGMP entries

256

DHCP features

DHCP client, DHCP relay, DHCPv6 client

Ethernet LAN features

IP routing

✓

Logistics data

Harmonized System (HS) code

85176990

Multicast features

Multicast MAC address table

8192 entries

Product Details

The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution. With Cisco Business 220 Series switches, you can not only build an efficient and reliable network to connect the workforce, you can also create advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees. Cisco Business 220 Series provides capabilities that help you create business-class networks. These features deliver a solution to simplify the operation, increase uptime, and get your business better connected to employees, customers, and suppliers.
