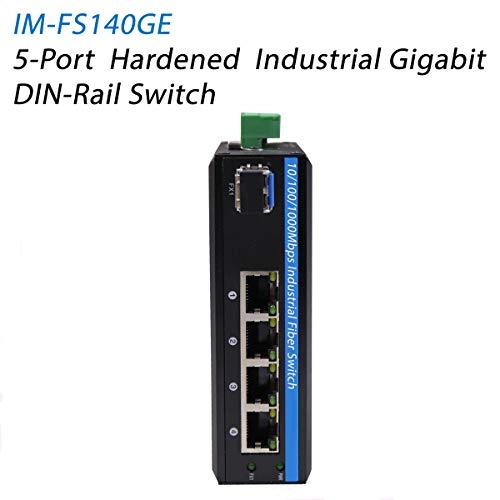

OLYCOM IM-FS140GE 5-ports

Key Features

• 4 KV Ethernet surge protection, adapt to a hardened outdoor environment;
• Support Auto MDI/MDIX;
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard ;
• IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant;
• A store-and-forward switching mechanism;

Specification

• Product Name: 10/100/1000Mbps Industrial Grade Fiber Switch (1F+4TP)
• Model No.: IM-FS140GE
• Fiber Port: 1 x 1000Mpbs SFPuplink port,SM,1310nm/1550nm,20Km
• Ethernet Port: 4x10/100/1000M UTP RJ45（Support MDI/MDIX auto-sensing）
• Switching features: Transmission mode:storage and forward ;System bandwidth：40Gbps (non-traffic jam)
• Network media: 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
• 100/1000BASE-TX:CAT5 or above shielded twisted pair(≤100m)
• Transmission distance: 20Km
• LEDs: Power, network, fiber
• Power supply:Input voltage:DC 9-36V ; No-load power：5W; Reverse connection: support
• Environment:Working temperature：-40°～ 85°C; Storage temperature：-40°～ 85°C
• Working humidity：10%～90%,non-condensing
• Storage humidity：10%～95%,non-condensing
• Safety: CE Mark ,commercial ; CE/LVD EN60950
• Mechanical information: Shell:Corrugated metal housing
• Safety class: IP40
• Dimension: 4.48 x 3.66 x 1.37inch
• Mounting method:Din-rail mounting

Warranty

• Replacement within 1year; 5 years repairing
