FS-124F 24-ports
FS-124F 24-ports

Fortinet FS-124F 24-ports

Best offer
AED
1 72104

This price may no longer be valid

Key Features

  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Throughput: 190Mpps
  • Gigabit Ethernet (copper) ports quantity: 24
  • SFP+ module slots quantity: 4
  • Switching capacity: 128Gbit/s
  • Access Control List (ACL) rules: 768
  • MAC address table: 32000entries
  • Access Control List (ACL): Yes
  • Redundant power supply (RPS) support: No
  • Form factor: 1U
  • Spanning tree protocol: Yes
  • 10G support: Yes
  • Link aggregation: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Mean time between failures (MTBF)
87660 h
Internal memory
512 MB
Rack mounting
✓
Product colour
White
Packet buffer memory
2 MB
SFP+ module slots quantity
4
Switching capacity
128 Gbit/s
Access Control List (ACL) rules
768
MAC address table
32000 entries
Access Control List (ACL)
✓
Switch layer
L2

Weight & dimensions

Weight
3560 g
Height
44 mm
Depth
260 mm
Width
440 mm

Power

AC input voltage
100 - 240 V
Power consumption (typical)
24.80 W
AC input frequency
50 - 60 Hz
Power consumption (max)
26.30 W
Power over Ethernet (PoE)
✗
Redundant power supply (RPS) support
✗

Design

Form factor
1U

Network

VLAN support
✓
Number of VLANs
4000
Spanning tree protocol
✓
10G support
✓
Link aggregation
✓

Ports & interfaces

Console port
RJ-45
Gigabit Ethernet (copper) ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90 %
Heat dissipation
89.68 BTU/h

Technical details

Certification
BSMI, CB, CE, FCC, RCM, RoHS2, UL, VCCI
Switch type
Managed

Memory

Flash memory
64 MB

Data transmission

Throughput
190 Mpps

Logistics data

Harmonized System (HS) code
85176990

Solid state drive

Memory type
DDR3-SDRAM

Product Details

Security, Performance, and Manageability The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes. Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access. Security Fabric Integration through FortiLink FortiLink is an innovative proprietary management protocol that allows our FortiGate Next-Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage.

Files

Product Brochure

mmo_87630114_1637140814_9666_19255.pdf

PDF• 4 MB

Reviews

Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

Join our newsletter

Be the first to know about new arrivals, sales, and exclusive picks

Sign in to unlock newsletter access and stay in the loop

Allware
info@allware.com
+971522500911
World technology awards winner badge

Allware

  • About Us
  • Terms And Conditions
  • Privacy Policy
  • Contact Us

Partners

  • Why become a partner?
  • How to list your Online Shop?

Newsletter

  • Subscribe

Info

  • How Allware works
All Rights Reserved.
Please enable location access or select an emirate
-
00:00:00
Prayer timings

Offers (1)

Amazon logo

1 offer

From
AED
1 721

Fortinet FortiSwitch - 124F (FS-124F)

White
Price expired

This price may no longer be valid

AED
1 72104

Price History

Price History Skeleton
Price History Shimmer Effect
Loading price history...

Similar Products

See all
D-Link DGS-1008A 8-ports

D-Link DGS-1008A 8-ports

AED
6800
13 offers
Ubiquiti USW-Pro-24-PoE 24-Ports

Ubiquiti USW-Pro-24-PoE 24-Ports

AED
2 56000
11 offers
-5%
D-Link DGS-1024D 24-ports

D-Link DGS-1024D 24-ports

AED
20965
AED
19740
11 offers
-46%
Linksys LGS108-EU-RTL 8-ports

Linksys LGS108-EU-RTL 8-ports

AED
14900
AED
7900
11 offers
-8%
D-Link DES-1024D 24-ports

D-Link DES-1024D 24-ports

AED
13325
AED
12150
10 offers
-1%
D-Link DGS-108 8-Ports

D-Link DGS-108 8-Ports

AED
8395
AED
8295
10 offers
-68%
D-Link DLDGS1016D 16-ports

D-Link DLDGS1016D 16-ports

AED
57435
AED
18000
9 offers
D-Link DGS-1100-08P 8-ports

D-Link DGS-1100-08P 8-ports

AED
24800
8 offers
Linksys LGS105MERTL 5-ports

Linksys LGS105MERTL 5-ports

AED
8150
8 offers
-8%
D-Link DGS-F1210-26PS-E 26-Ports

D-Link DGS-F1210-26PS-E 26-Ports

AED
59900
AED
54900
7 offers

More from Fortinet

See all
Fortinet FS-148E-POE 24-ports

Fortinet FS-148E-POE 24-ports

AED
1 91435
1 offer
Fortinet FS-148F-POE 48-ports

Fortinet FS-148F-POE 48-ports

AED
7 08359
3 offers
Fortinet FAP-431G-A

Fortinet FAP-431G-A

AED
3 99200
1 offer

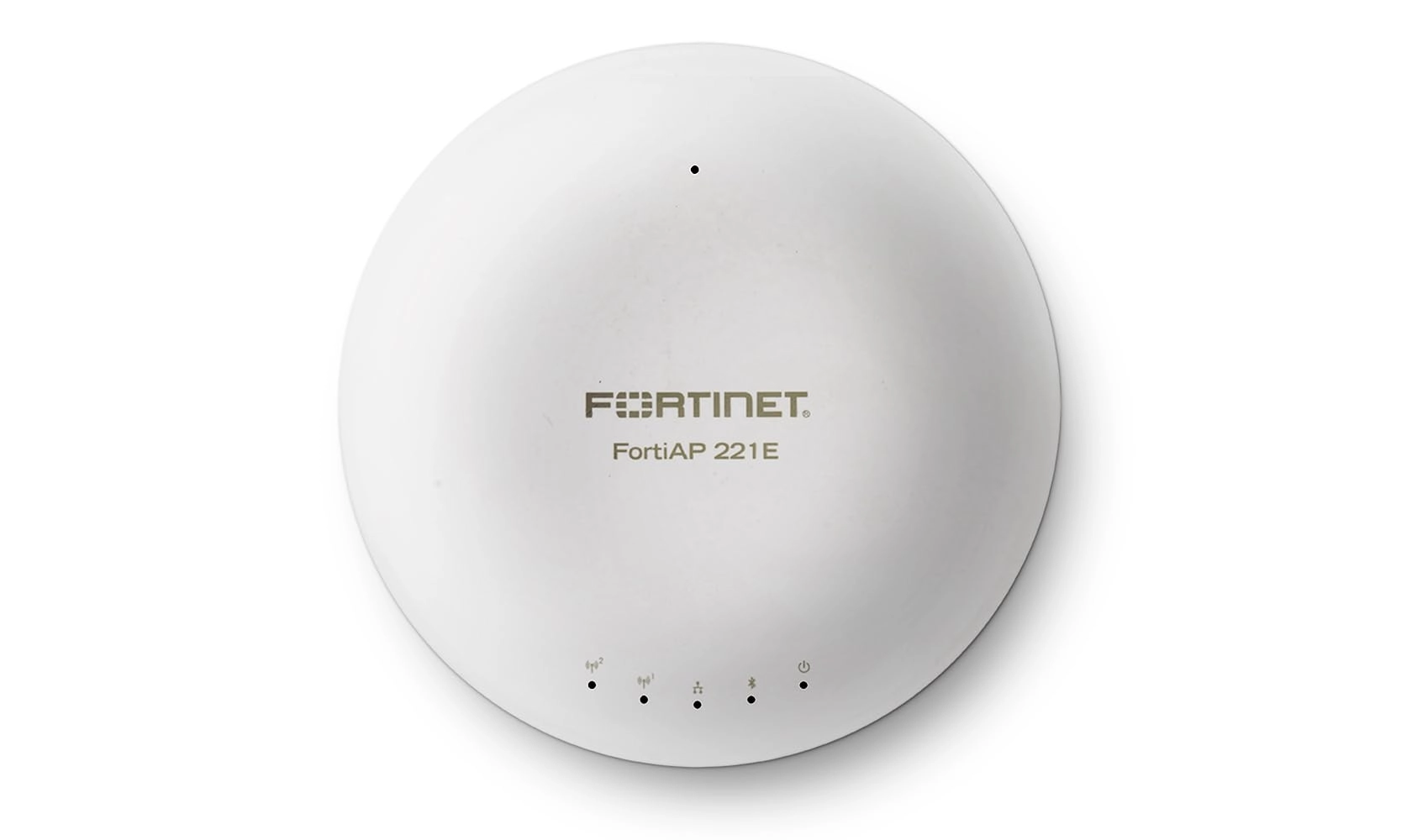

Fortinet FAP-221E-A

Fortinet FAP-221E-A

AED
66405
1 offer

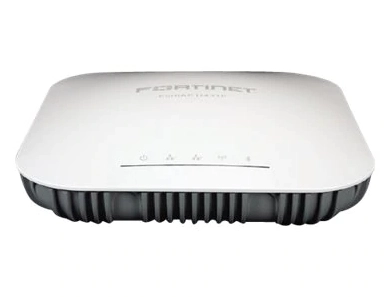

Fortinet FAP-431F
