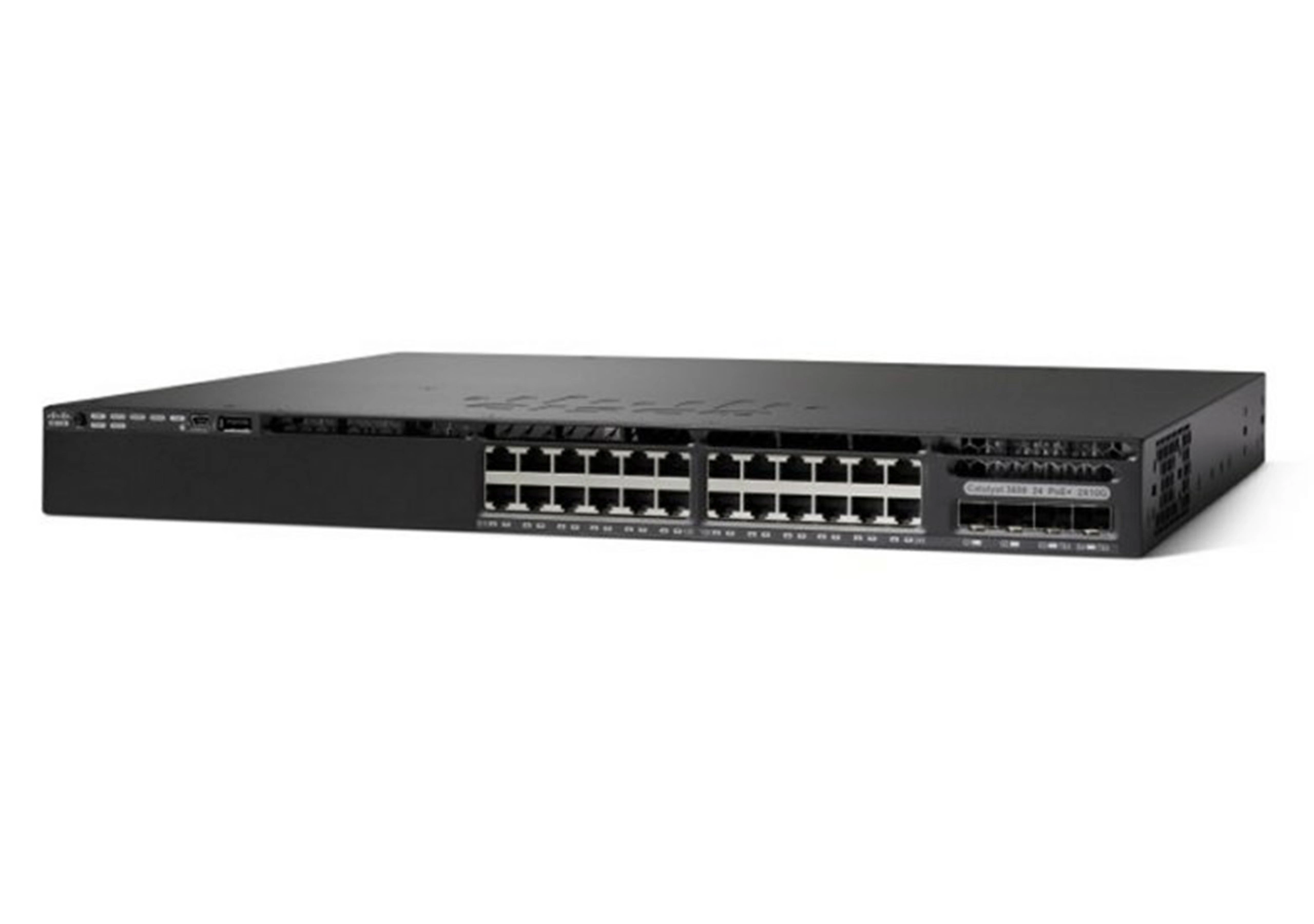

Cisco WS-C3560X-24T-L 24-Ports

Best offer
AED
3 50000

This price may no longer be valid

Key Features

  • Switch layer: L2/L3, L3
  • Physical stacking (units): 8
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Throughput: 71.4Mpps
  • DHCP features: DHCP server
  • Number of queues: 8
  • Number of static routes: 1000
  • Number of multicast groups filtered: 1000
  • Gigabit Ethernet (copper) ports quantity: 24
  • IP routing: Yes
  • Jumbo frames: 9216
  • Power LED: Yes
  • Switching capacity: 216Gbit/s
  • Full duplex: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Country of origin
China
Mean time between failures (MTBF)
661800 h
Safety
CAN/CSA-C22.2 No. 60950-1
Market segment
Business
Internal memory
4096 MB
Processor frequency
600 MHz
MIB support
Y
Quality of Service (QoS) support
✓
Noise level
42 dB
Security algorithms
SNMP, SSH
Rack mounting
✓
Stackable
✓
Product colour
Black
Power LED
✓
Switching capacity
216 Gbit/s
Full duplex
✓
MAC address table
32000 entries
Access Control List (ACL)
✓
Access Control List (ACL) rules
3
Bandwidth
160 Gbit/s
Jumbo frames support
✓
Multicast support
✓
Switch layer
L2/L3, L3

Packaging data

Package weight
5400 g
Package height
147.60 mm
Package depth
546.10 mm
Package width
520.70 mm

Weight & dimensions

Weight
4000 g
Height
44 mm
Depth
448 mm
Width
445 mm

Management features

Web-based management
✓
ARP inspection
✓
Number of multicast groups filtered
1000

Power

Power plug type
Type C
AC input voltage
100 - 240 V
Power consumption (typical)
55.21 W
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
✗
Number of power supply units
1
Redundant power supply (RPS) support
✓

Performance

Physical stacking (units)
8

Wireless LAN features

IGMP snooping
✓

Design

LED indicators
Yes
Form factor
1U

Computer system

Processor model
AppliedMicro APM8639
Built-in processor
✓

Packaging content

Packaging content
1 printed document
User guide
✓
Cables included
AC

Network

Switching protocols
RADIUS/TACACS+
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Management protocols
SNMPv3
VLAN support
✓
Number of VLANs
4094
Auto MDI/MDI-X
✓
Spanning tree protocol
✓
Rate limiting
✓
Auto-negotiation
✓
10G support
✓
Link aggregation
✓
Jumbo frames
9216

Ports & interfaces

SFP module slots quantity
4
Console port
RJ-45
USB 2.0 ports quantity
2
Gigabit Ethernet (copper) ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24

Operational conditions

Operating altitude (imperial)
0 - 1500 m
Operating relative humidity (H-H)
5 - 96 %
Non-operating altitude
0 - 4000 m
Operating altitude
0 - 1500 m
Storage relative humidity (H-H)
10 - 95 %

Technical details

Switch type
Managed

Memory

Flash memory
2000 MB

Data transmission

Number of static routes
1000
Number of queues
8
Throughput
71.40 Mpps

Security

SSH/SSL support
✓
Broadcast storm control
✓
Authentication
MAC-based authentication, Port-based authentication
DHCP features
DHCP server

Ethernet LAN features

IP routing
✓

Logistics data

Harmonized System (HS) code
85176990

Solid state drive

Memory type
DRAM

Product Details

The Cisco Catalyst 2960X-24TS-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.

Files

Catalyst 2960-X and 2960-XR Switch Hardware Installation Guide

mmo_18654994_1487102046_2866_14052.pdf

PDF• 5.5 MB

Regulatory Compliance and Safety Information for the Catalyst 2960-X and 2960-XR Switches

mmo_18654994_1487102085_8433_29959.pdf

PDF• 6.3 MB

Cisco IOS Release Notes for Cisco EnergyWise, EnergyWise Version 2.8

mmo_18654994_1487102124_6621_4779.pdf

PDF• 198.4 KB

5 reasons your network needs an upgrade

mmo_18654994_1487102166_0417_14018.pdf

PDF• 1.3 MB

Benefits of Migrating to Cisco Catalyst 2960-X and 2960-XR Switches

mmo_18654994_1487102203_199_14020.pdf

PDF• 1.2 MB

Our Greenest Catalyst Access Switch

mmo_18654994_1487102214_3959_4289.pdf

PDF• 340.9 KB

One Secure Wireless Network for All Global Delivery Centers

mmo_18654994_1487102284_1558_4779.pdf

PDF• 1.5 MB

Videos

The Cisco 2960X Series Switch

MP4• 3.4 MB

Cisco Why Switching?

MP4• 3 MB
